- Page 1 AOC-URG4N4-b2XT User's Guide Revision 1.0...
- Page 2 Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
- Page 3 Ultra Riser Cards are the most advanced Riser Cards in the market. They provide PCI-E 4.0 expansion slots for the latest Gen. 4 PCI-E add-in cards while function- ing as networking devices with various LAN controllers. The AOC-URG4N4-b2XT provides two ports 10GbE networking solution based on Broadcom BCM57416, ®...
- Page 4 Super AOC-URG4N4-b2XT Add-on Card User's Guide Conventions Used in the User's Guide Pay special attention to the following symbols for proper system installation and to prevent damage to the system or injury to yourself: Warning: Important information is given to ensure proper system installa- tion or to prevent damage to the components or injury to yourself.
- Page 5 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com...
- Page 6 Super AOC-URG4N4-b2XT Add-on Card User's Guide Asia-Pacific Email: Sales-Asia@supermicro.com.tw (Sales Inquiries) Support@supermicro.com.tw (Technical Support) RMA@supermicro.com.tw (RMA Support) Website: www.supermicro.com.tw...
-
Page 7: Table Of Contents
Preface Table of Contents Preface Chapter 1 Overview Overview ......................1-1 Key Features ....................1-1 Specifications ....................1-2 Available SKUs ....................1-5 Chapter 2 Hardware Components Add-On Card Image and Layout ..............2-1 Major Components ..................2-2 Ports ........................ 2-3 Connectors ...................... -
Page 8: Chapter 1 Overview
Overview Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. For product support and updates, please refer to our website at http://www.supermicro.com/... -
Page 9: Specifications
Super AOC-URG4N4-b2XT Add-on Card User's Guide Specifications General • Broadcom BCM57416 dual-port 10Gbps controller ® • PCI-E 3.0 x8 (8GT/s) interface • Dual RJ45 connectors • One internal PCI-E 4.0 x16 slot • Four NVMe ports (two Slim SAS x8) Networking Features •... - Page 10 Chapter 1: Overview • Large Receive Offload (LRO) • Receive Side Scaling (RSS) • Transmit Side Scaling (TSS) NIC Partitioning (NPAR) • 16 Physical Functions Virtualization Features • NetQueue, VMQueue, and Multiqueue • Support for 128 Virtual Functions • VXLAN •...
- Page 11 Super AOC-URG4N4-b2XT Add-on Card User's Guide Manageability • Network Controller Sideband Interface (NC-SI) • PXE boot • Asset Management with thermal sensors Power Savings • ACPI compliant power management • PCI Express Active State Power Management (ASPM) • Ultra low-power mode •...
-
Page 12: Available Skus
Chapter 1: Overview Available SKUs Add-on Cards Controller Network Supported Connector PCI-E Slot NVMe Ports Speeds Types Ports 10GbE 2x RJ45 One PCI-E 4 (2x Slim Broadcom ® AOC-URG4N4-b2XT 4.0 x16 SAS x8) BCM57416 (internal) -
Page 13: Chapter 2 Hardware Components

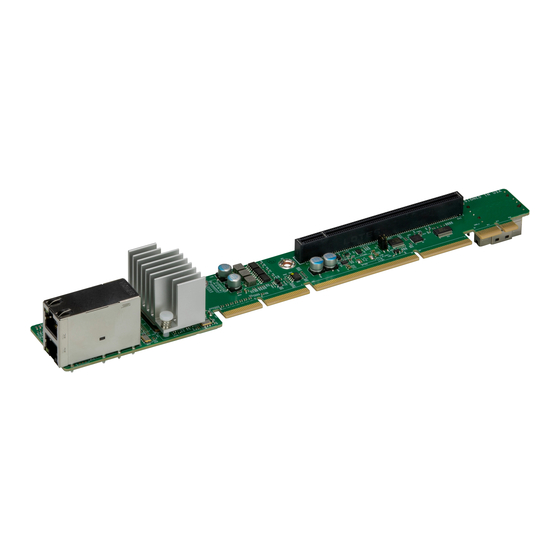

Add-On Card Image and Layout AOC-URG4N4-b2XT Image BAR CODE MAC CODE SLOT1: PCI-E Gen4 x16 Broadcom® AOC-URG4N4-b2XT JRJ45 BCM57416 DESIGNED IN USA REV:1.01 Controller SXB3_3 AOC-URG4N4-b2XT Top Layout SLIMSAS1 AOC-URG4N4-b2XT DESIGNED IN USA REV:1.01 SLIMSAS2 SXB3_1 SXB3_2 AOC-URG4N4-b2XT Bottom Layout... -
Page 14: Major Components
Super AOC-URG4N4-b2XT Add-on Card User's Guide Major Components The following major components are installed on AOC-URG4N4-b2XT: AOC-URG4N4-b2XT Major Components Component Name Definition Broadcom BCM57416 Ethernet LAN controllers ® JP3 Jumper Setting 1-2: 3.3V Standby On 3-4: 3.3V Standby Off (Default) -
Page 15: Ports
Chapter 2: Hardware Components Ports There are two RJ45 and four NVMe ports located on the add-on card. For this add-on card, when SlimSAS1 is used for NVMe1 and NVMe2, each NVMe is PCI-E Gen4 x4. When SlimSAS2 is used for NVMe3 and NVMe4, each NVMe is PCI-E Gen4 x4. -
Page 16: Jumpers
Super AOC-URG4N4-b2XT Add-on Card User's Guide Jumpers Explanation of Jumpers To modify the operation of the add-on card, a jumper can be used to choose between optional settings. A jumper creates shorts between two pins to change the function of the connector. See the add-on card layouts on page 2-1 for the jumper locations. -
Page 17: Installation
Chapter 3: Installation Chapter 3 Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your add-on card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 18: Before Installation
Super AOC-URG4N4-b2XT Add-on Card User's Guide Before Installation To install the add-on card properly, be sure to follow the instructions below. 1. Power down the system. 2. Remove the power cord from the wall socket. 3. Use industry standard anti-static equipment (such as gloves or wrist strap) and follow the instructions listed on page 3-1 to avoid damage caused by ESD. -
Page 19: Installing Drivers For Windows
1. Run the CDR-NIC. (If you do not have a product CD-ROM, download drivers from the Supermicro Support Website and then transfer them to your system.) 2. When the SUPERMICRO window appears, click on the computer icon next to the product model. -
Page 20: Installing Drivers (For Broadcom ® Bcm57416)
Super AOC-URG4N4-b2XT Add-on Card User's Guide Installing Drivers (for Broadcom BCM57416) ® Use the procedures below to install both drivers and firmware for the AOC-URG4N4- b2XT add-on card for both Linux and Windows. Linux Drivers Use the following procedures to install drivers on the Linux operating system. - Page 21 Chapter 3: Installation cd libbnxtre-<ver>.tar.gz ./configure make make install cp bnxtre.driver /etc/libibverbs.d/ echo “/usr/local/lib” >> /etc/ld.so.conf ldconfig –v Windows Drivers Use the following procedures to install drivers on the Windows operating system. Installing 10G Drivers for the Windows Operating System 1.
- Page 22 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
