Summary of Contents for Binatone WR3005N3

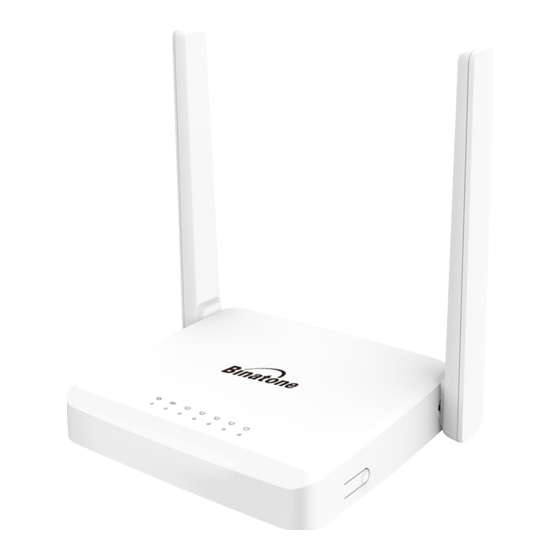

- Page 1 Quick Installation Guide WR3005N3 300Mbps Wireless N Router 7109504814 REV1.0.0...
-
Page 2: Chapter 1. Connecting The Router
Chapter 1. Connecting the Router Before installing the router, you should have connected your PC to the Internet through your broadband service successfully. If there are any problems, please contact with your ISP. After that, please install the router according to the following steps. - Page 3 1.2 Repeater Mode The router is used to extend the range of wireless signal of the existing AP or wireless router. On this mode, computer can connect to the device by either wired or wireless way. The SSID of the router should be the same as that of the device you repeat. a.
-
Page 4: Chapter 2. Login To The Router
Chapter 2. Login to the Router To login to the router, you should set up the TCP/IP Protocol in Obtain an IP address automatically mode on your PC(s). For the detailed instructions, please refer to Appendix B in the User Guide on the Resource CD. a. - Page 5 Standard Wireless Router When you choose Standard Wireless Router on Working Mode page, take the following steps: a. The Router provides Auto-Detect function and supports five popular ways to access the Internet: Dynamic IP, Static IP, PPPoE/Russian PPPoE, L2TP/Russian and PPTP/Russian PPTP. Choose your WAN connection type and click Next.
- Page 6 III If Static IP is selected, the next screen will appear as shown below. Fill the blanks with the parameters provided by your ISP, and then click Next. IV If PPPoE/Russian PPPoE is selected, the next screen will appear as shown below.
- Page 7 Select Static IP if the IP Address/ Subnet Mask/ Gateway and DNS server address have been provided by your ISP. Then please enter server IP address or domain name provided by your ISP, and also enter the corresponding parameters. Select Dynamic IP if none of the above parameters are provided. Then you just need to enter server IP address or domain name provided by your ISP.
- Page 8 Select Static IP if the IP Address/ Subnet Mask/ Gateway and DNS server address have been provided by your ISP. Then please enter server IP address or domain name provided by your ISP, and also enter the corresponding parameters. Select Dynamic IP if none of the above parameters are provided. Then you just need to enter server IP address or domain name provided by your ISP.
-
Page 9: Repeater Mode
c. You will then see the Finish page. Click the Finish button to finish the Quick Setup. Repeater Mode When you choose Repeater Mode on Working Mode page, take the following steps: a. Wireless Repeater page will appear as shown below. - Page 10 b. Click Survey button on the Wireless Repeater page, and then AP List page will appear. Find the SSID of the Access Point you want to access, and click Connect in the corresponding row. For example, the second item is selected. The target network’s SSID will be automatically filled into the corresponding box.
- Page 11 WISP Client Router Mode When you choose WISP Client Router Mode on Working Mode page, take the following steps: a. The Router supports five popular ways to access the Internet: Dynamic IP, Static IP, PPPoE/Russian PPPoE, L2TP/Russian and PPTP/Russian PPTP. Choose your WAN connection type and click Next.
- Page 12 d. The Finish page is shown below. Click the Reboot button to make your wireless configuration take effect and finish the Quick Setup.
