Temcoline T30 Series User Manual

Pid controller
Hide thumbs Also See for T30 Series:

Advertisement

Table of Contents

DIGITAL PID CONTROLLER

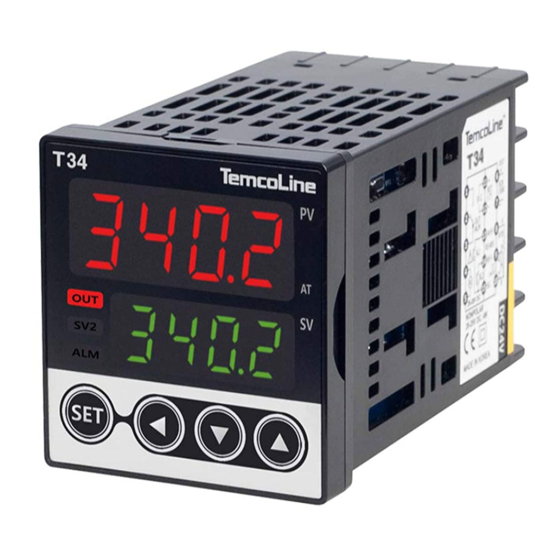

T30 SERIES PID Controller
User's Manual
T30
S ERIE S
T32/ T33/ T34/ T37/ T39
www.temcoline.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T30 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Temcoline T30 Series

Summary of Contents for Temcoline T30 Series

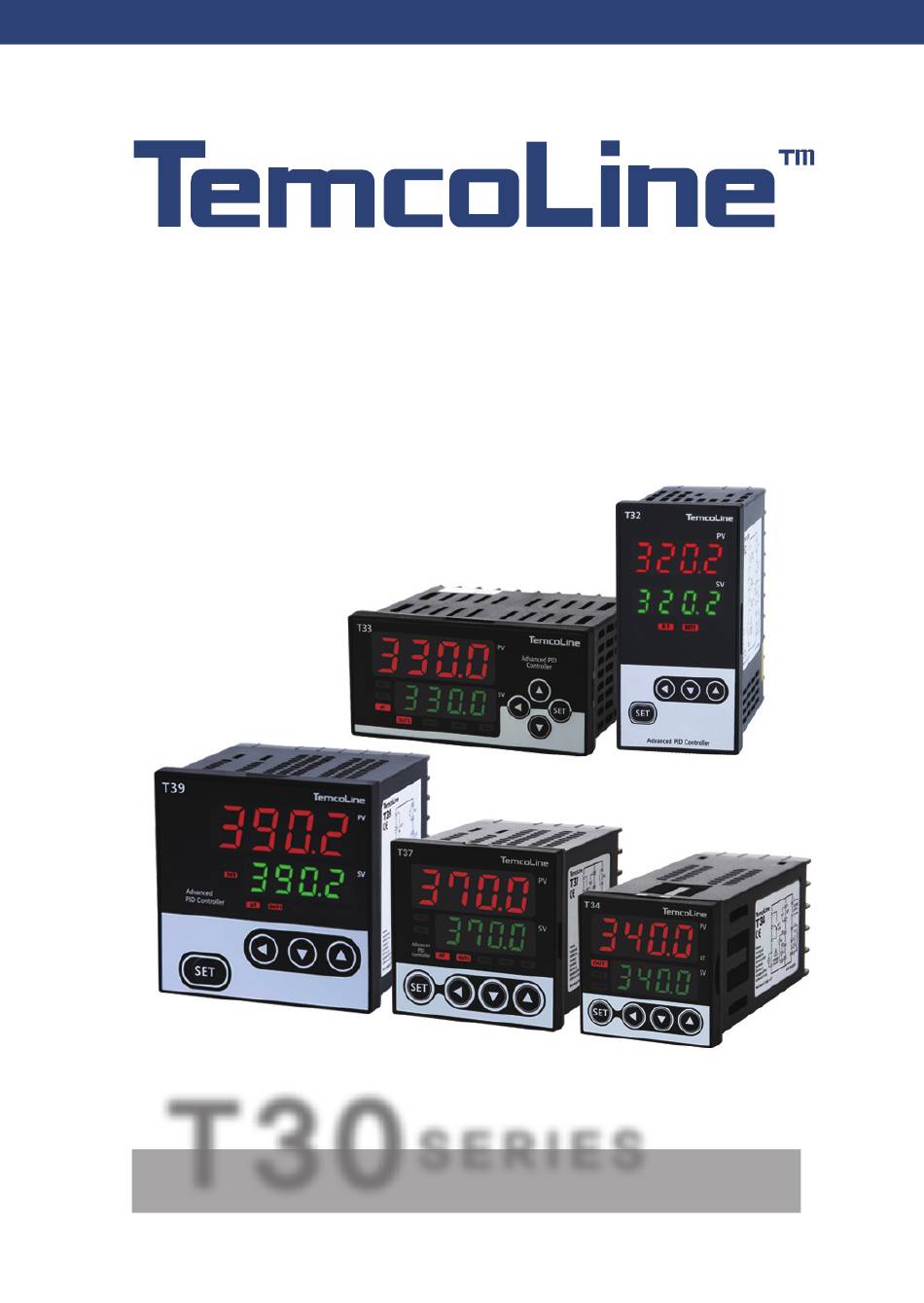

  • Page 1 DIGITAL PID CONTROLLER T30 SERIES PID Controller User's Manual S ERIE S T32/ T33/ T34/ T37/ T39 www.temcoline.com...

  • Page 2: Safety Requirements

    The T30 series is a precision industrial controller that uses an advanced 2 degree-of-freedom (DOF) algorithm. The T30 series consists of 5 models, which are T32, T33, T34, T37, and T39. This manual explains the installation, the functions, the operation, and the handling of the products.
  • Page 3 Do not use chemical detergent or solvent, but use a dry towel in cleaning the controller.(It may cause an electric shock or a fire.) Please check the polarity of power before wiring and connecting the sensor. (It may cause an electric shock or explosion.) www.temcoline.com...
  • Page 4 2) Manipulated variable(Mvn) check mode 3) Alarm(ALARM1, 2) function 4) Retransmission output 5) Input function 6) Selection function for Hysteresis 7) SV1, 2 set up control by external contact signal 8) Set value "LOCK" function 9) Error indication during operation www.temcoline.com...

  • Page 5: Ordering Information

    SCR(4~20mA), SSR(Voltage pulse) 1 (0 : No option) SERIES D.I(SV2, 3), RET(4~20mA Retransmission) Ex.) T37-S30 RELAY output 1, Alarm output 2, Basic function + Basic Option code SCR(4~20mA), SSR(Voltage pulse) 1, function SERIES (0 : No option) RET(4~20mA Retransmission) www.temcoline.com...
  • Page 6 (4) Supply voltage : 100~240V AC "0" Ex.) T37-S30 (1) Size : 72(W) x 72(H) x 77(D) "7" "S" (2) Control mode : SINGLE T37-S30 "3" (3) Optional function : DI(SV1,2), RET (4) Supply voltage : 100~240V AC "0" www.temcoline.com...

  • Page 7: Input Type

    DIGITAL PID CONTROLLER 2. Input ranges and Output configuration 1) Input ranges ※ The T30 series has multiple inputs, which may be set and changed by the user. Setting Input type Input Temperature range Accuracy Remarks Code -200 ~ 1370 -199.9 ~ 999.9...

  • Page 8: Output Configuration

    DIGITAL PID CONTROLLER configuration 2) Output ※ The figure on the left uses The T30 series the terminal socket of has multiple outputs. T37-S30 as an example to illustrate the output response relationship. OUTPUT-1 (ALARM 1,2) OUTPUT-1 General Setting SSR/SCR OUTPUT...
  • Page 9 1) T32 (48x96 mm) Dimensions ±0.5 10.0 77.0 48.0 Min. 30 T32 / T33 (96x48) Panel cutouts (Unit: mm) 2) T33 (96x48 mm) Dimensions 10.0 96.0 77.0 3) T34 (48x48 mm) Dimensions T34 (48x48) Panel cutouts +0.5 99.0 48.0 Min.17 Min.17 (Unit: mm) www.temcoline.com...
  • Page 10 DIGITAL PID CONTROLLER 4) T37 (72x72 mm) Dimensions T37 (72x72) Panel cutouts 77.0 72.0 ±0.5 Min. 20 Min. 30 (Unit: mm) 5) T39 (96x96 mm) Dimensions 10.0 96.0 77.0 ±0.5 T39 (96x96) Panel cutouts Min. 30 Min. 20 (Unit: mm) www.temcoline.com...

  • Page 11: Installation

    Hole of fixing screw Hole of fixing screw Turn the screw Bracket hole Bracket hole 2-3 times after contact with panel. [ figure 1 ] Top side [ figure 2 ] Bottom side [ figure 3 ] Fixing completion www.temcoline.com...
  • Page 12 DIGITAL PID CONTROLLER 4. Terminal arrangements and Wirings 1) T32 (48x96 mm), T33 (96x48 mm) T32, T33 2) T34 (48x48 mm OPTION Option 1 Option 3 (T34-S1x) (T34-S3x) www.temcoline.com...
  • Page 13 : Power supply terminal. Terminal : Alarm1 output terminal. Terminal : Alarm2 output terminal. Terminal : The external D.I input terminal may be used when (DIS=ON), and the target value may be controlled. (SV1, SV2) Terminal : Input terminals. www.temcoline.com...

  • Page 14: Ratings And Specifications

    -10~50 / relative humidity 25~85% RH Ambient temperature ℃ (but with neither condensation nor freezing) and Humidity T32, T33, T37 : 230g T34 : 140g T39 : 320g Weight + 30g, if options are added (Bracket, Accessories included) ※ www.temcoline.com...
  • Page 15 Function key Use to shift the digits. ⑧ Shift key Use to decrease set value and to move the menu. ⑨ Set value down key Use to increase set value and to move the menu. ⑩ Set value up key www.temcoline.com...
  • Page 16 1 : SSR (VOLT-PULSE) PID control 2 : SCR (4~20mA) PID control 3 : RELAY PID control Input type indication 01 : K-Type (-200~1370 ℃) 02 : K-type (-199.9~999.9 ℃) 33 : mV DC (0~100 mV) Firmware version display www.temcoline.com...
  • Page 17 1) Check the external wiring diagram and specifications. (power supply and terminal arrangement) 2) Check input and output specifications! The default setting for the T30 series at the point of manufacturer are as follows. Input : K(CA) Type (setting code 1)
  • Page 18 DIGITAL PID CONTROLLER 9. Entering into "set menu" and Setting method 1) Input & Output type setting Temcoline products are universalized input and output. Please set up input and output type firstly and use when install our unit. The method for input and output setting menu before auto-tuning.
  • Page 19 DIGITAL PID CONTROLLER 2) The processing for input/output setting menu after auto-tuning After auto-tuning has done of T30 series models, to avoid any user's mistake, input/output setting menu is restricted automatically. But you can change input/ output by following ways. However, unit will be returned to factory default when changed input type.

  • Page 20: Auto Tuning

    When auto-tuning begins, the "auto-tuning command lamp" will flash every 0.5 second and will turn off upon completion of the auto-tuning process. Please refrain from operating the keys while auto-tuning is in progress. www.temcoline.com...

  • Page 21: Flow Chart (Parameter Structure)

    Type of hysteresis Hysteresis of alarm 2 (ON/OFF Control) and setting menus on the Delay time of alarm 1 T30 series, but during actual Control loop break alarm operations the menus that are Delay time of alarm 2 Highest limit...

  • Page 22: Setting Range

    480 sec. No. 21 selection Highest limit of retransmission EU (100 %) (RET.H) TC/RTD : _IN.H~_IN.L retransmission DCV IN : _SL.H~_SL.L and select ( But, RET.H ＞ RET.L ) lowest limit of retransmission PV or SV EU (0 %) (RET.L) www.temcoline.com...

  • Page 23: Initial Setting Mode

    But , SL-H ＞ SL-L only Decimal point Free scale lower limit set positioning by _DPP (voltage input mode) REV (Heating), Output action selection REV (Heating) Always DIR (Cooling) OFF / 1 ~ 21(LBA) Select alarm 1 output type Always (See alarm type) www.temcoline.com...
  • Page 24 If the input settings are changed whil configured. If the input settings are changed while in use, in use, auto-tuning and other parameters need to be reconfigured. auto-tuning and other parameters need to be reconfigured. www.temcoline.com...

  • Page 25: Hold Function

    DIGITAL PID CONTROLLER 12. Alarm(ALARM1, 2) Setting The T30 series has two separate alarm outputs, and in the setting group, alarms may be chosen among 21 types, and the dead band (hysteresis) for the alarm output may be set. Please find the alarm code with the desired function in the "Alarm types and codes table"...
  • Page 26 Hysteresis (2℃) Hysteresis (Dead band) = 2 ℃ OF F Temperature High 100 ℃ 20 ℃ High Alarm setting value = 20 ℃ 100℃ 20℃ ( When Set value (SV) = 100 ℃ ) When Set Value (SV) = 100℃ www.temcoline.com...
  • Page 27 Refer to P18, Refer to P18, 〈 In condition of Mvn=ON 〉 I/O Set Mode I/O set mode Basic drive menu Operation mode Escape.. 3 sec. [Mvn = ON] Mvn display screen Change Save (Present Mvn Out = 85%) Save Change www.temcoline.com...

  • Page 28: Alarm (Alarm1,2) Function

    DIGITAL PID CONTROLLER 3) Alarm (ALARM1,2) function The T30 series has two separate alarm outputs, and in the setting menu, alarms may be chosen among 21 types, and the hysteresis, delay time for the alarm output may be set. Please find the alarm code with the desired function in the "Alarm out type and Selection code"...

  • Page 29: Retransmission Output

    SPS ( Power supply for external sensor ) retransfer output set-up PV or SV. 4.0 mA 12.0 mA 20.0 mA Retransmission value RET.H RET setting : PV or SV RET.L 100.0 % MV (Fixed) 0.0 % SPS (Fixed) DC Power Supply : DC 15V / 25mA www.temcoline.com...

  • Page 30: Input Function

    "_INS" mode and higher value, 20mA corrected at "_ING" mode. To have more accurate correction, firstly set the lower value at "_INS" mode and then set the higher value at "_ING" mode. T30 series offers the powerful correction function with 4-20mA conversion resistance (250 Ω ) at competitive prices.
  • Page 31 (1) HYS.T = “NORM” selection Hysteresis Hysteresis _ACT = DIR. _ACT = REV. (Cooling operation) (heating operation) (2) HYS.T = “HALF” selection Hysteresis ※ While Hysteresis operation in "HALF" mode, the operation of Heating and cooling is same, and "NORM" is factory default. www.temcoline.com...
  • Page 32 : Can operate SV setting and AT only. ON : Can operate SV setting and AT only. ▪ ALL : Impossible all setting and operation, only LOCK OFF is available. ALL : Impossible all setting and operation, only LOCK OF is available. ▪ www.temcoline.com...
  • Page 33 SYS.E : SYSTEM setting error or Memory damage (request for repair) RJC.E : RJC Sensor damage or PCB burn (request for repair) EEP.E : EEPROM damage (request for repair) COM.E : Communication ERROR (request for repair) AT.E : Auto Tuning Error, Checking heater break or controller www.temcoline.com...
  • Page 34 TEMCOLINE Co., Ltd. Misung Bldg, Guro-dong 612-6, Guro-gu, Seoul, 152-865 KOREA Tel. +82-2-3667-5521 Fax. +82-2-2632-5549 E-Mail : sales@temcoline.com...

This manual is also suitable for:

T32T33T34T37T39
