DIGITAL PID CONTROLLER
T30 SERIES PID Controller
User's Manual
T30
SE R IE S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T30 SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for Temcoline T30 SERIES

Summary of Contents for Temcoline T30 SERIES

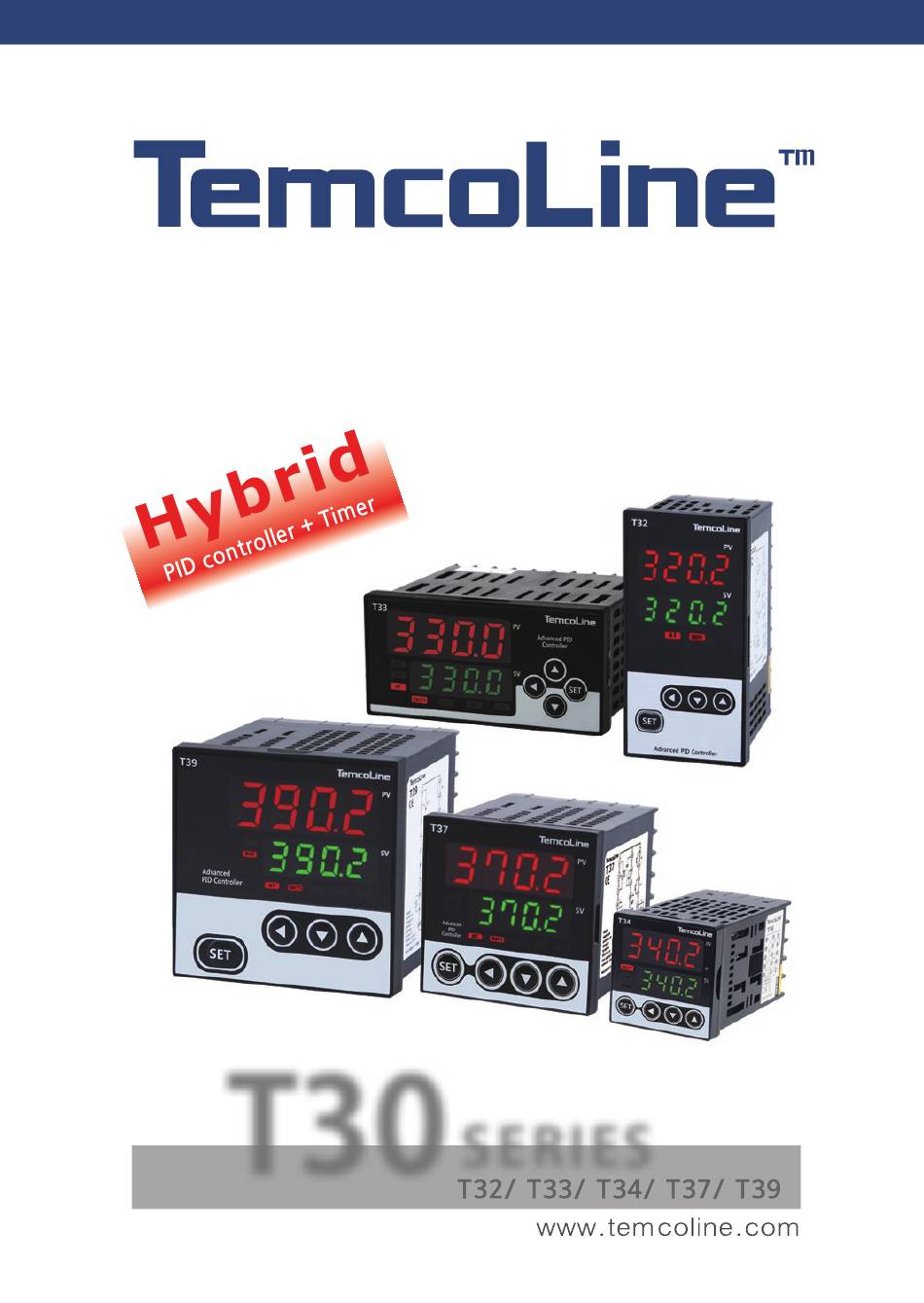

  • Page 1 DIGITAL PID CONTROLLER T30 SERIES PID Controller User's Manual SE R IE S...
  • Page 2 Useful Features ! Enhance hot key between group menus sEt.n < General Setting group > iosE.2 < Input.output Setting group > If you press the up key while pressing the set key ORG.1 < Initial setting group > in any setting menu, you can move to the corresponding upper menu and move to the desired menu immediately.

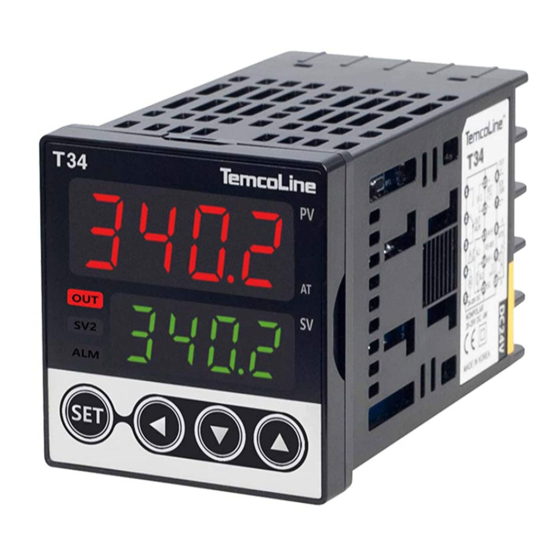

  • Page 3 The T30 series is a precision industrial controller that uses an advanced 2 degree-of-freedom (DOF) algorithm. The T30 series consists of 5 models, which are T32, T33, T34, T37, and T39. This manual explains the installation, the functions, the operation, and the handling of the products.
  • Page 4 Do not use chemical detergent or solvent, but use a dry towel in cleaning the controller.(It may cause an electric shock or a fire.) Please check the polarity of power before wiring and connecting the sensor. (It may cause an electric shock or explosion.) www.temcoline.com...

  • Page 5: Table Of Contents

    7) SV1, 2 set up control by external contact signal 8) Set value "LOCK" function 9) Error indication during operation 14. SOAK alam and Timer output 1) SOAK alam and Timer output 2) Timer Normal, T1~5 Output operation timing chart www.temcoline.com...

  • Page 6: Ordering Information

    Option code SCR(4~20mA), SSR(Voltage pulse) 1 (0 : No option) SERIES D.I(SV2, 3), RET(4~20mA Retransmission) Ex.) T37-S30 RELAY output 1, Alarm output 2, SCR(4~20mA), SSR(Voltage pulse) 1, No function (Basic function S0x) SERIES RET(4~20mA Retransmission output) D.I(SV2, 3) External input www.temcoline.com...
  • Page 7 (4) Supply voltage : 100~240V AC "0" Ex.) T37-S30 (1) Size : 72(W) x 72(H) x 77(D) "7" "S" (2) Control mode : SINGLE T37-S30 "3" (3) Optional function : DI(SV1,2), RET (4) Supply voltage : 100~240V AC "0" www.temcoline.com...

  • Page 8: Input Ranges & Output Configuration

    DIGITAL PID CONTROLLER 2. Input ranges and Output configuration 1) Input ranges ※ The T30 series has multiple inputs, which may be set and changed by the user. Setting Input type Input Temperature range Accuracy Remarks Code -200 ~ 1370 -199.9 ~ 999.9...
  • Page 9 Control output ※ It is only for T34-S00! The T30 series can use up to three alarms independently when using the control output as SSR (1) or SCR (2). That is, the basic model (no option) can be used as alarm 1, and the optional model (alarm output) can be used as alarm 3.

  • Page 10: Dimensions & Panel Cutouts

    1) T32 (48x96 mm) Dimensions ±0.5 10.0 77.0 48.0 Min. 30 T32 / T33 (96x48) Panel cutouts (Unit: mm) 2) T33 (96x48 mm) Dimensions 10.0 96.0 77.0 3) T34 (48x48 mm) Dimensions T34 (48x48) Panel cutouts +0.5 48.0 77.0 Min.17 Min.17 (Unit: mm) www.temcoline.com...
  • Page 11 DIGITAL PID CONTROLLER 4) T37 (72x72 mm) Dimensions T37 (72x72) Panel cutouts 77.0 72.0 ±0.5 Min. 20 Min. 30 (Unit: mm) 5) T39 (96x96 mm) Dimensions 10.0 96.0 77.0 ±0.5 T39 (96x96) Panel cutouts Min. 30 Min. 20 (Unit: mm) www.temcoline.com...
  • Page 12 Hole of fixing screw Hole of fixing screw Turn the screw Bracket hole Bracket hole 2-3 times after contact with panel. [ figure 1 ] Top side [ figure 2 ] Bottom side [ figure 3 ] Fixing completion www.temcoline.com...

  • Page 13: Terminal Arrangements & Wirings

    DIGITAL PID CONTROLLER 4. Terminal arrangements and Wirings T32/33 1) T32 (48x96 mm), T33 (96x48 mm) T32, T33 2) T34 (48x48 mm OPTION Option 1 Option 3 (T34-S1x) (T34-S3x) www.temcoline.com...
  • Page 14 : Power supply terminal. Terminal : Alarm1 output terminal. Terminal : Alarm2 output terminal. Terminal : The external D.I input terminal may be used when (DIS=ON), and the target value may be controlled. (SV1, SV2) Terminal : Input terminals. www.temcoline.com...

  • Page 15: Ratings & Specifications

    -10~50 / relative humidity 25~85% RH Ambient temperature ℃ (but with neither condensation nor freezing) and Humidity T32, T33, T37 : 230g T34 : 140g T39 : 320g Weight + 30g, if options are added (Bracket, Accessories included) ※ www.temcoline.com...

  • Page 16: Features & Function

    Function key Use to shift the digits. ⑧ Shift key Use to decrease set value and to move the menu. ⑨ Set value down key Use to increase set value and to move the menu. ⑩ Set value up key www.temcoline.com...

  • Page 17: Check Points Before Using

    1 : SSR (VOLT-PULSE) PID control 2 : SCR (4~20mA) PID control 3 : RELAY PID control Input type indication 01 : K-Type (-200~1370 ℃) 02 : K-type (-199.9~999.9 ℃) 33 : mV DC (0~100 mV) Firmware version display www.temcoline.com...
  • Page 18 1) Check the external wiring diagram and specifications. (power supply and terminal arrangement) 2) Check input and output specifications! The default setting for the T30 series at the point of manufacturer are as follows. Input : K-Type (setting code 1 : -200 ~1370℃)

  • Page 19: Entering Into "Set Menu" & Setting Method

    DIGITAL PID CONTROLLER 9. Entering into "set menu" and Setting method 1) Input & Output type setting Temcoline products are universalized input and output. Please set up input and output type firstly and use when install our unit. The method for input and output setting menu before auto-tuning.
  • Page 20 DIGITAL PID CONTROLLER 2) The processing for input/output setting menu after auto-tuning After auto-tuning has done of T30 series models, to avoid any user's mistake, input/output setting menu is restricted automatically. But you can change input/ output by following ways. However, unit will be returned to factory default when changed input type.
  • Page 21 SET키를 누른상태 ORG.1 in any setting menu, 에서 UP키를 누르면 < 초기설정 그룹 > you can move to the 해당되는 상위 (그룹) corresponding upper menu 메뉴로 순간이동하여 빠르게 and move to the desired menu immediately. 원하는 메뉴로 이동할 수 있습니다. www.temcoline.com...

  • Page 22: Flow Chart (Parameter Structure)

    ※ To enter 'Input/Output settings' by 'IOSE' on is valid for only time. If you want to enter 'Input/Output settings' again you must turn on 'IOSE' first. If there is no Key action the 'IOSE' will be OFF automatically in 50 seconds. www.temcoline.com...

  • Page 23: Setting Mode

    480 sec. No. 21 selection Highest limit of retransmission EU (100 %) (RET.H) TC/RTD : _IN.H~_IN.L retransmission DCV IN : _SL.H~_SL.L and select ( But, RET.H ＞ RET.L ) lowest limit of retransmission PV or SV EU (0 %) (RET.L) www.temcoline.com...
  • Page 24 But , SL-H ＞ SL-L only Decimal point Free scale lower limit set positioning by _DPP (voltage input mode) REV (Heating), Output action selection REV (Heating) Always DIR (Cooling) OFF / 1 ~ 21(LBA) Select alarm 1 output type Always (See alarm type) www.temcoline.com...
  • Page 25 If the input settings are changed while If the input settings are changed while in use, auto-tuning and in use, auto-tuning and other parameters need to be reconfigured. other parameters need to be reconfigured. www.temcoline.com...

  • Page 26: Alarm(Alarm1, 2, 3) Setting

    DIGITAL PID CONTROLLER 12. Alarm(ALARM1, 2, 3) Setting The T30 series has up to three independent alarm outputs, and you can set up to 21 alarm types, hysteresis, and delay time. Type of alarm 1 Set value of alarm 1 <General set mode>...
  • Page 27 [Alarm No. 2 code 22] SOAK Alarm and Timer Output (Process low) refer to * Page 33, "14. SOAK alarm and timer output mode ". When alarm type reverse-correspondence is selected for alarm type and code, please be aware that when the alarm lamp turns on, the contact output will be off. www.temcoline.com...

  • Page 28: Details Explanation Of Primary Function

    순으로 설 " ". If required, set in the order of Refer to P18~19, I/O Set Mode < In condition of Mvn = ON > Operation mode Escape.. 3 sec. Mvn display screen (Present Mvn Out = 85%) Change Save www.temcoline.com...

  • Page 29: Alarm(Alarm1, 2) Function

    DIGITAL PID CONTROLLER 3) Alarm (ALARM1,2) function The T30 series alarm outputs have three independent alarm outputs and are designed to be used with a variety of auxiliary outputs as well as simple alarm functions. In the setting group, 21 types of alarms, hysteresis of alarm output and delay time can be set.

  • Page 30: Retransmission Output

    LBA will be on/off abnormally of not turned on. In this case please set LBA time little longer. 4) Retransmission output The re-transmission output of the T30 series has all three transmission functions and the ability to supply power when using an external sensor. Retransmission type or SPS selection...

  • Page 31: Input Function

    "_INS" mode and higher value, 20mA corrected at "_ING" mode. To have more accurate correction, firstly set the lower value at "_INS" mode and then set the higher value at "_ING" mode. T30 series offers the powerful correction function with 4-20mA conversion resistance (250 ) at competitive prices.

  • Page 32: Selection Function For Hysteresis

    P, I, D, MR value. As a result, it will have best control performance depending on the temperature value. Typically, when use Auto-tuning, it will work if either SV1 or SV2 tuned and set same P, I, D value with the other. www.temcoline.com...

  • Page 33: Set Value "Lock" Function

    AT.E : Auto Tuning Error, Checking heater break or controller 14. SOAK alarm and timer output ALARM 2 of the T30 series supports powerful digital timer function. There are 5 types of timer output mode besides the basic SOAK ALARM function.

  • Page 34: Timer Normal, T1~5 Output Operation Timing Chart

    OFF Timer ON Timer ON Timer ON Timer ON Timer 70 sec. (70 sec.) (70 sec.) (70 sec.) (1.45 ~ 0.00) (70 sec.) On/Off Time Set Timer output (Alarm 2) Reset Reset S/W or D.I ) 1.5 sec POWER ON www.temcoline.com...
  • Page 35 TEMCOLINE Co., Ltd. Misung Bldg, 217-1, Gurojungang-ro, Guro-gu, Seoul, 08216 Korea Tel. +82-2-3667-5521 Fax. +82-2-2632-5549 E-Mail : sales@temcoline.com...

This manual is also suitable for:

T33T32T39T34T37
