- Page 1 Model 119937 Model 119835 Model 119907 Lit. #: 98-1110/02-08 Trail Scout 2008 Models 119835+11 1 3/4/08 12:05:25 AM...
- Page 2 Trail Scout 2008 Models 119835+12 2 3/4/08 12:05:25 AM...

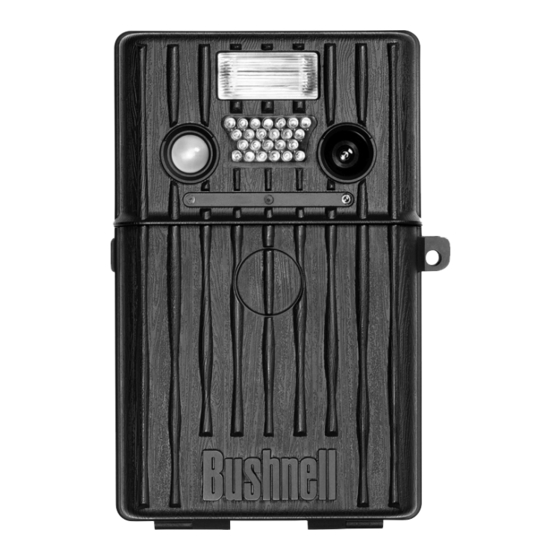

- Page 3 Bushnell Digital Trail Scout Features (All Models) One of the most revolutionary advances in scouting technology to date, the Bushnell Digital trail Scout delivers. Boasting one of the most user friendly interfaces in the industry, this trail camera has a positive toggle switch system that instantly tells you what your camera settings are—without fumbling with a confusing software interface! The built-in security system has four levels of security.
- Page 4 Power input jack for optional solar panel. textured “bark-like” surface for maximum concealment. *7MP Hi Res option via software interpolation, sensor resolution is 5MP Trail Scout 2008 Models 119835+14 4 ® Camo)—Trail Scout Pro 7.0MP with Night Vision & Game...
-
Page 5: Digital Trail Scout Specifications
Sensor 1/2” CMOS sensor with 3.0 million (119835) or 5.0 million pixels (119907/119937). “Hi” res setting captures images with 5MP (119835) or 7MP (119937/119907) resolution via software processing Lens F/3.5, effective focal length 42mm. Sight range: 45 degrees Flash High power electronic Xenon Flash or infrared 24-lamp LED array. - Page 6 119835 Flash Motion Battery Trail Scout 2008 Models 119835+16 6 119937/119907 infrared LED Array Standard Flash Camera Lens Motion Keylock SD Card Slot Battery Parts Guide Camera Lens Laser Pointer Keylock SD Card Slot Game Call Volume 3/4/08 12:05:26 AM...
- Page 7 1199/11990 Control Panel Up/Down/Enter K1 K2 K3 K4 K5 * affects only still photo resolution (video resolution is preset at 320x240 pixels per frame) Trail Scout 2008 Models 119835+17 7 Switch Position/Setting Switch #/Function K1 (Operating Mode) K2 (image Mode)
- Page 8 NiMh batteries only. 1. K1 - Mode Switch (OFF / SETUP/ ON) : a) Power ON (UP position): Set K1 to ON position, The LCD display will show “BUSHNELL” for about 2 seconds.
-
Page 9: Set Password
There are 2 lines of 8 characters each for your use. From Set Name, press the Down button to change the password. (4) SET PASSWORD: Password When the LCD shows PASSWORD, press the ENtER key to set the password. Trail Scout 2008 Models 119835+19 9 Setup Guide (cont.) 3/4/08 12:05:27 AM... - Page 10 Example: 07—18 would define DAY as from 7AM to 6PM (6PM=18:00 hours on 24 hr clock). From Set Day time, press the Down button to set the next user option. Trail Scout 2008 Models 119835+110 10 3/4/08 12:05:27 AM...
- Page 11 Setup process and are ready to start using your trail Scout, simply change K1 to the ON (UP) position and the unit will be operating after a 2 minute delay. Trail Scout 2008 Models 119835+111 11 3/4/08 12:05:28 AM...
- Page 12 (DOWN) MOVIE Mode: The camera can record a 15 second movie, the file format is AVi with audio. NOTE: On model# 119835, using MOVIE mode at night will result in dark videos, as the xenon (standard) flash does not function in MOVIE mode. With models 119937/119907, you may use MOVIE mode at night by setting switch K3 (Lighting mode) to the LED position (the standard flash does not function in MOVIE mode on these models either).
- Page 13 The trail Scout has three still photo resolution options: (a) Hi: Still photos are taken at the highest (interpolated) resolution setting, 5MP (119835) or 7MP (119937/119907). Use this setting if you plan to make large prints from your photos, or anytime photo quality is a higher priority than photo storage space (higher resolution photos generate larger size files).
- Page 14 Trigger Speed—time delay between a subject passing in front of PiR sensor and the image capture of that subject. All Bushnell trail Cameras have a trigger speed of less than one second. Trail Scout 2008 Models 119835+114 14...
-
Page 15: Sd Card Slot
The unit has a standard SD Card slot. You must push the SD Card in with the SD Card label facing the Bushnell logo into the SD card slot. Pushing it again will release the SD card, and then you can remove the SD card from the SD card slot. - Page 16 LED from reaching the sensor, resulting in dark photos. The standard flash mode may be selected for night use, however, photos may be slightly pink or reddish in color due to the deactivated infrared filter. Refer to the following chart: Trail Scout 2008 Models 119835+116 16 3/4/08 12:05:28 AM...
- Page 17 The moon phase icon will appear on your photos in the lower left, next to your name and the Bushnell logo. Some hunters will find this to be a useful reference, as it can help determine if particular animals are inactive at night when a full or nearly full moon is present, causing them to be more visible to predators.
- Page 18 Also, the new Trail Scouts have a port on the bottom of the camera for inserting a solar panel power jack (use only with Bushnell Solar Panel Model# 1190C). When mounting the solar panel, the ratcheting bracket can be used with it turned upside down (so it ratchets up), to allow the solar panel to be positioned facing UPWARD, to collect solar energy to power rechargeable NiMh “D”...
- Page 19 2. Then, feed the other end of the cable around the tree and back through the bracket. 3. tighten the adjustable locking bolt to hold the cable tightly in place (B). Trail Scout 2008 Models 119835+119 19 USInG ThE DIGITAL TRAIL SCOUT 3/4/08 12:05:29 AM...
- Page 20 The functions of K2, K3, and K4 can be set in the SEtUP or ON Mode. After finishing SEtUP, close the front cover and turn the knob to 90°clockwise. Finally, secure the trail Scout with a padlock. Trail Scout 2008 Models 119835+120 20 turn the knob 90° counterclockwise to open turn the knob 90°...
- Page 21 . Predator-Small animal in distress sound. Will attract predators such as bobcat, mountain lion, coyote, wolf to an area. . Turkey-Female turkey yelp. This call will attract male tom turkeys. 8. Moose-Male bull moose sound. Will attract other moose to investigate. Trail Scout 2008 Models 119835+121 21 3/4/08 12:05:29 AM...
- Page 22 Attaching the Game Call Module (Models 119907 and 119937 only) Attaching Game Call Module Game Call Module Attached (remove the plastic plug covering the connection pins by sliding it up first) Trail Scout 2008 Models 119835+122 22 3/4/08 12:05:30 AM...
- Page 23 The (Optional) Solar Panel (Compatible with models 119835, 119907 & 119937) Solar Panel input Jack Solar Panel (Optional Accessory) WARNING: DO nOT uSe the solar panel unless rechargeable (“D” size type niMh) batteries have been installed. using the solar panel with alkaline or other non- rechargeable batteries may result in damage to the unit, not covered by warranty.
- Page 24 • The LCD showing “RESUME” means the system is active. • Changing batteries within 20 seconds will avoid the need to reset the date and time. Trail Scout 2008 Models 119835+124 24 3/4/08 12:05:30 AM...
- Page 25 Trail Scout 2008 Models 119835+125 25 3/4/08 12:05:30 AM...
- Page 26 Bushnell Outdoor Products Attn.: Repairs 8500 Marshall Drive Lenexa, Kansas 66214 For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. in Europe you may also contact Bushnell at: Bushnell Germany GmbH European Service Centre Mathias-Brüggen-Str. 80 D-50827 Köln...
- Page 27 Trail Scout 2008 Models 119835+127 27 3/4/08 12:05:31 AM...
- Page 28 For further questions or additional information please contact: Bushnell Outdoor Products 9200 Cody, Overland Park, Kansas 21 (800) 2- • www.bushnell.com ©2008 Bushnell Outdoor products Trail Scout 2008 Models 119835+128 28 3/4/08 12:05:31 AM...
