Summary of Contents for Next STANTON DARK SMALL SIDEBOARD 857528

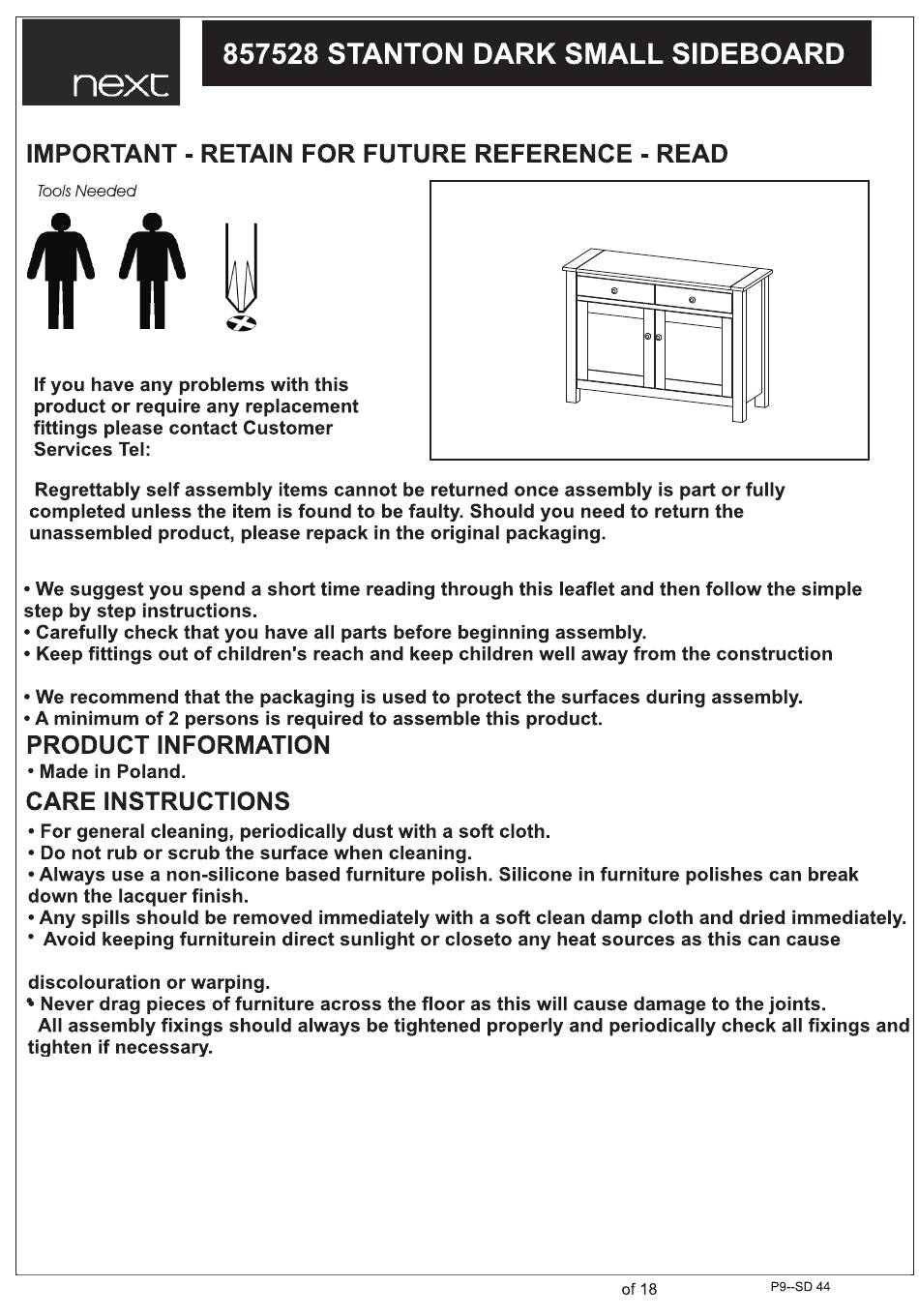

- Page 1 DESCRIPTION: Assembly 857528 Instruction ASSEMBLY INSTRUCTIONS. Helpline 0333 777 8999 IMPORTANT area. cracking, manufacture.
- Page 2 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD FLOOR AREA 2.0 M x 2,0 M 1.5 hrs 2 PERSON ASSEMBLY REQUIRED ASSEMBLY SPACE APPROXIMATE ASSEMBLY TIME REQUIRED ASSEMBLY TOOLS ASSEMBLED DIMENSIONS 770 mm 400 mm 1080 mm P9--SD 44 of 18...
-
Page 3: Parts List
DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD PARTS LIST NO PART LIST (1) SIDE - L (2) SIDE - R (3) TOP PANEL (4) BOTTOM PANEL (5) STRIP FRONT - BOTTOM (6) VERTICAL DIVIDER (7) STRIP FRONT (7.1) CONSTRUCTIONAL RAM (8) DOOR - R (8.1) DOOR - L (9) SHELF... -
Page 4: Hardware List
DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD HARDWARE LIST DO NOT MIX CONTENT OF HARDWARE BOXES 8x28 5x39 15x12 12x10 SHELF 5x32mm SUPPORT NYLON FEET DOWEL CAM BOLT CAM BOLT CAM LOCK CAM LOCK BAG 1 BAG 1 BAG 1 BAG 6 BAG 1 BAG 6... - Page 5 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD HARDWARE LIST DO NOT MIX CONTENT OF HARDWARE BOXES 4x13 3,5x13 HINGE SCREW SCREW Washer L-250x20 BAG 4 BAG 4 BAG 5 BAG 5 Strap BAG 5 wpm4x25 HANDLE SCREW BAG 2 BAG 2 P9--SD 44 of 18...
- Page 6 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD SCREW IN CAM SCREWS PRESS IN CAM LOCKS. ARROW ON CAM ONLY DOWN TO FIRST RING. LOCK MUST FACE HOLE IN PANEL EDGE. FLUSH WITH DO NOT INSERT DOWELS PANEL IN CAM SCREW / LOCK HOLES. TO SECURE PANELS, PRESS PANELS TOGETHER ALIGNING TURN CAM LOCKS 1/2 TURN CLOCKWISE.
- Page 7 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD Instructions for hinge adjustment a) Side adjustment: Loosen fixing screw "A", adjust gap with screw "B" and retighten screw "A". b) Depth adjustment: Loosen fixing scerw "A", push hinge arm forwards or backwards, retighten screw "A", fix screw "B"...
- Page 8 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD ASSEMBLY INSTRUCTION FOR DRAWER SLIDE A&B 300mm SPECIAL TIPS FOR DRAWER SLIDE A FRONT BACK 6x8mm 6x8mm BACK FRONT SPECIAL TIPS FOR DRAWER SLIDE B THIRD HOLE 3,5x13mm FRONT FRONT LAST THIRD HOLE 3,5x13mm BACK BACK...
- Page 9 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD x1L/x1R P9--SD 44 of 18...
- Page 10 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD x1L/x1R P9--SD 44 of 18...
- Page 11 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD P9--SD 44 of 18...
- Page 12 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD P9--SD 44 of 18...
- Page 13 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD 1/2 TURN CLOCKWISE. LOCKED POSITION. P9--SD 44 of 18...
- Page 14 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD 1/2 TURN CLOCKWISE. P9--SD 44 of 18...
- Page 15 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD 1/2 TURN CLOCKWISE. 90° B a c k p a n e l k e e p s u n i t s q u a r e . Ta c k b a c k p a n e l f o r c o r n e r s f i r s t a n d w o r k y o u r w a y a r o u n d .
- Page 16 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD 1/2 TURN CLOCKWISE. P9--SD 44 of 18...
- Page 17 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD NOT SUPPLIED Wall fixings are not supplied with this product as different wall materials require different types of fixing devices( such as Rawl plugs used on brick work).You must use fixing devices suitable for the type of wall you intend to mount this product to. Please ensure that the head of any screw used has a diameter greater than the diameter of the mounting hole on the product and that the fixing is safe and secure before use.
- Page 18 DESCRIPTION: Assembly 857528 Instruction STANTON DARK SMALL SIDEBOARD P9--SD 44 of 18 NEXT Retail Ltd, Desford Road, Enderby Leicester, LE19 4AT...
