IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this product or
require any replacement fittings please contact
Customer Services Tel: 0844 844 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found
to be faulty. Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
• Wall fixings must be used for stability on this item and for safety reason the cabinet should be left freestanding.
• The maximum load this cabinet shelves can hold is 5 kg.
• We would recommend that the following methods to be used to hang the cabinet.
the wall are not included.
PRODUCT INFORMATION
• Made from MDF with painted finish & mirrored glass doors.
• Made in China.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Always use a non-silicone based furniture polish. Silicone in furniture polishes can break down the lacquer finish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or
warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.

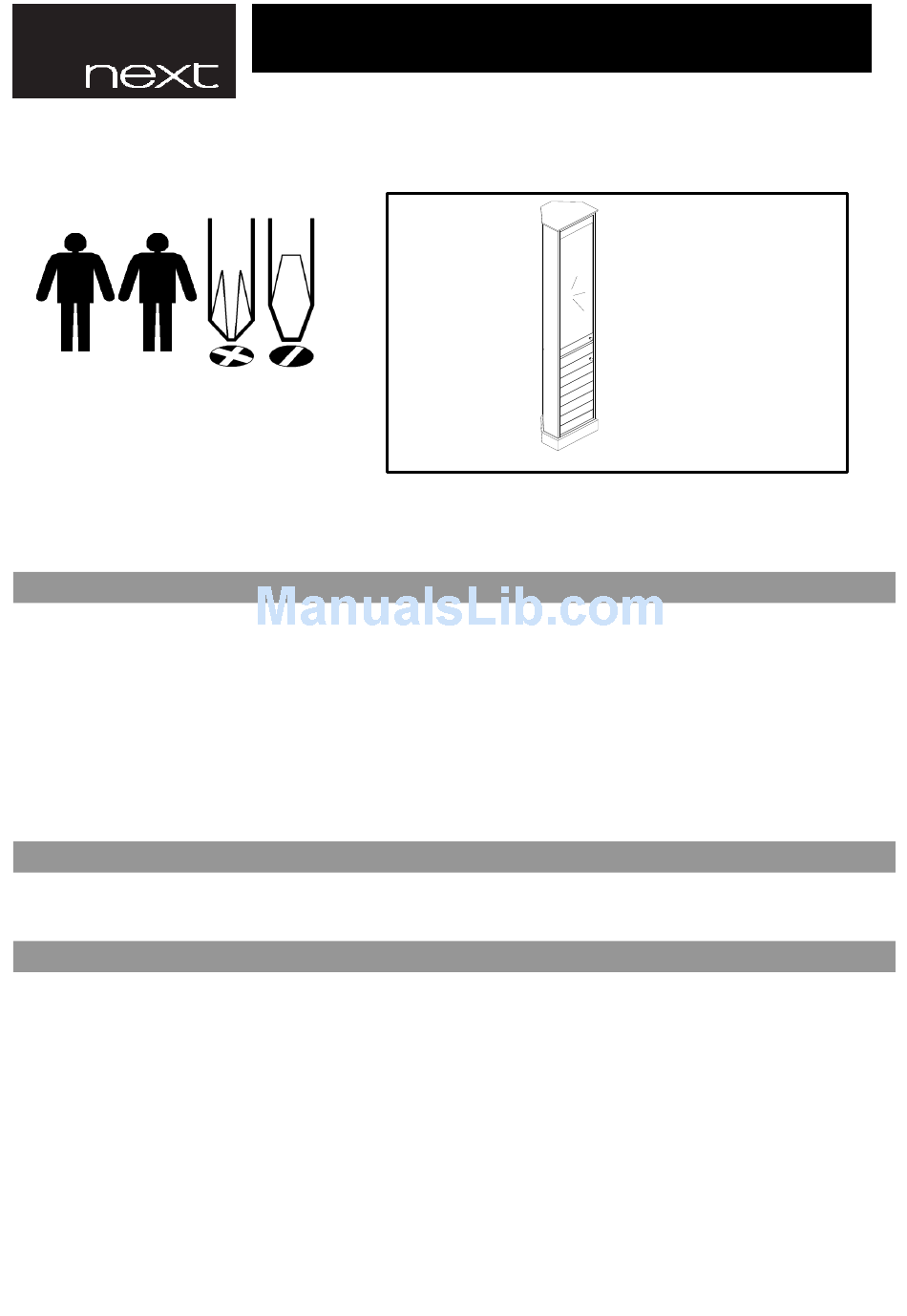

850018 SOUTHPORT CORNER TALLBOY
ASSEMBLY INSTRUCTIONS.
Page 1 of 7
NB - Screws & Raw plugs
for
Advertisement
Table of Contents
Related Manuals for Next 850018
Summary of Contents for Next 850018
- Page 1 850018 SOUTHPORT CORNER TALLBOY ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0844 844 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
- Page 2 • Clean using a glass cleaner and soft cloth. Do not use cleaning products containing abrasives as these will scratch the glass. GLASS INFORMATION • This item contains mirror glass. Please handle with extreme care. • BS 7449: 1991. • Batch No.04/2013 •...
- Page 3 STEP TWO 1. Insert 2 x wooden dowels (D) into top panel 1. 2. Attach top front rail 9 to top panel 1 with 2 x screws (N) and tighten. STEP THREE 1. Attach 1 x wooden stopper (P) to shelf panel 4 with 2 x screws (M), tighten with a screwdriver.
- Page 4 STEP FIVE 1. Insert 4 x cambolts (A) and 4 x wooden dowels (C) to bottom panel 3. 2. Attach bottom panel 3 to the assembled unit with. 3. Insert 4 x camlocks (B) to side panel 2 (both L&R). Ensure the arrow indicator is pointing towards the panel edge before tightening with a screwdriver.
- Page 5 STEP EIGHT 1. Attach 2 x hinges (G) to door panel 6 with 4 x screws (H) and tighten. 2. Attach 1 x handle (L) to door panel 6 with 1 x bolt (K) and tighten. 3. Attach 1 x rubber pad (Q) to door panel 6. STEP NINE 1.
- Page 6 Vertically ( up and down) STEP ELEVEN 1. Use pencil to mark through predrilled hole on side panel. STEP TWELVE 1. Use power tool drill through the pencil mark. STEP THIRTEEN 1. Attach the assembled unit to the wall with 4 x screws, tighten with a screwdriver.
- Page 7 Next Retail Ltd, Desford Road, Leicester, LE19 4AT Page 7 of 7...
