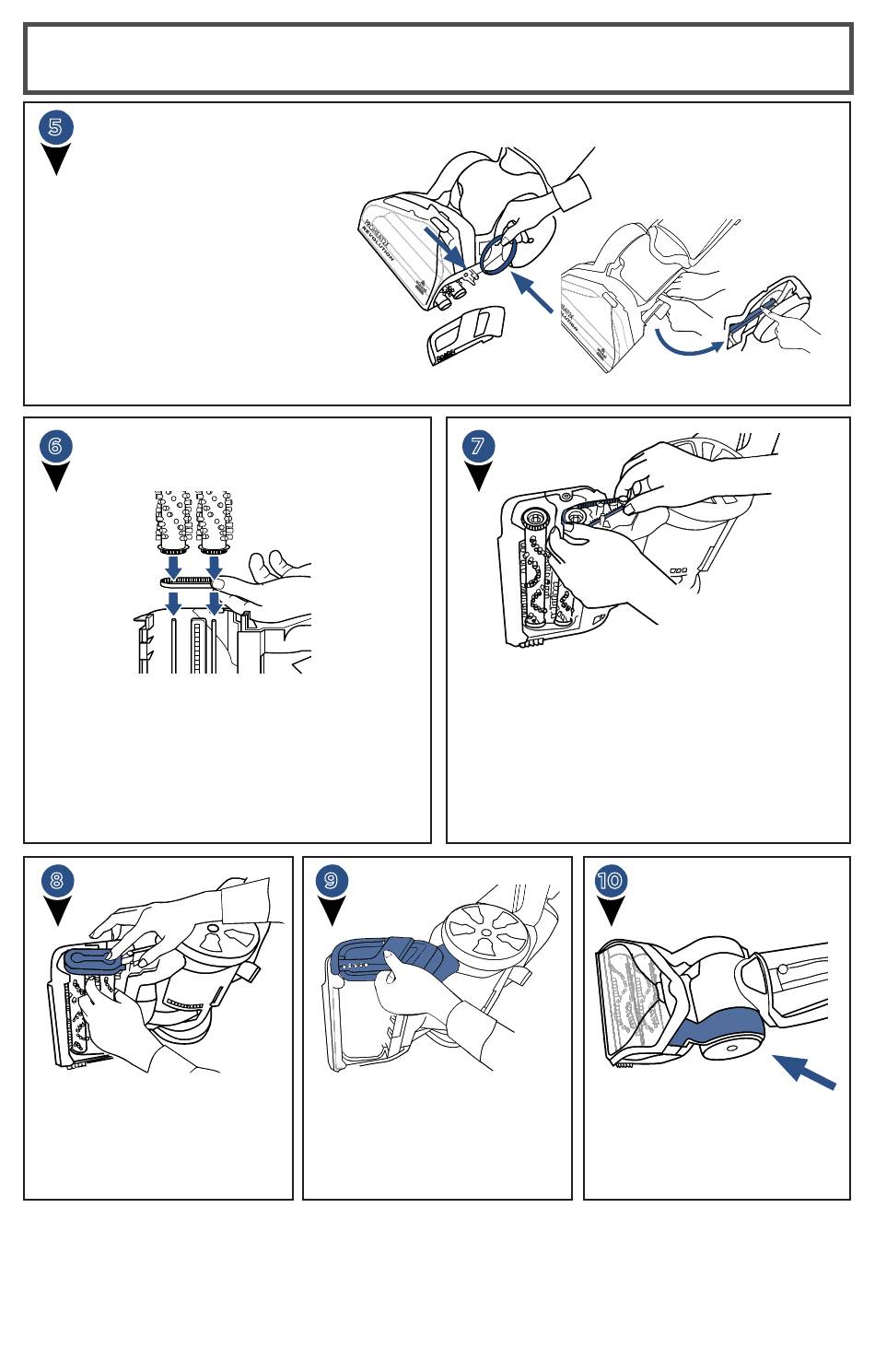

Replacing Belts or Brush Rolls (cont.)
5
Now, if the flat pump belt
was broken, place a new
belt around the red area
of the large pulley. Then
use your thumb to stretch
it toward the back of the
machine and transfer it
onto the metal axle.
6
Spin either brush. If they both
spin, continue to Step 7.
If only one spins, the opposite belt is
broken and you must remove both
brushes and replace the small cogged
brush belt.
Place the new belt around both brush
gears and slide them onto the thin
metal axles.
8
Return the brush cover.
Make sure that the
brushes are aligned and
the cover is secure.
14
www.BISSELL.com
7
To replace the cogged large pump
belt, make sure your deep cleaner
is completely reclined. Begin by
wrapping the Cogged Large Pump
Belt around the small metal-toothed
pulley. While wrapped around the
pulley, stretch and wrap around the
nearest brush gear.
9
Return the Belt/Brush
Access Plate to the end of
the Brush Rolls by securing
with the 3 screws.
10
Turn the machine
to lay on its back.
Lastly, slide the Belt
Access Door back into
place. You should hear
it "click" into place.
