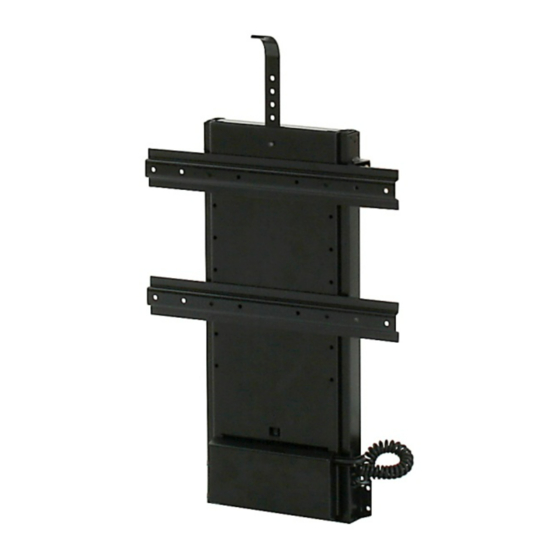

Electric TV Lift, TS700C & TS1000C

TS1000C

INSTALLATION INSTRUCTIONS

CONTENT:

1. Important safety instructions.

2. Specifications and main dimensions.

3. Parts included.

4. Installation.

5. RF remote system.

6. Feature functions and settings including anti-squeeze.

7. Mechanical adjusting the stroke length of the lift.

8. Declaration of conformity.

WARNING

WARNING: FAILURE TO COMPLY WITH OR OBSERVE ALL

ASSEMBLY, SAFETY AND OPERATION INSTRUCTIONS

AND WARNINGS REGARDING THE USE OF THIS PRO-

DUCT MAY RESULT IN SERIOUS BODILY INJURY.

TS700C

No. #348190.2

Need help?

Do you have a question about the TS700C and is the answer not in the manual?

Questions and answers

Summary of Contents for Venset TS700C

Page 1: Table Of Contents
Electric TV Lift, TS700C & TS1000C TS1000C TS700C INSTALLATION INSTRUCTIONS CONTENT: 1. Important safety instructions. 2. Specifications and main dimensions. 3. Parts included. 4. Installation. 5. RF remote system. 6. Feature functions and settings including anti-squeeze. 7. Mechanical adjusting the stroke length of the lift.
Page 2: Important Safety Instructions
Electric TV Lift, TS700C & TS1000C 1. Important safety Instructions. CAUTION ! Before you begin any of the Installation procedures on page 7, read and follow the warn- ings and safety instructions on page 2 and 3. WARNING ! THIS IS NOT A TOY ! CUSTOMER WARNING ! This appliance is sold as a component and should be installed only by a capable adult.
Page 3 Electric TV Lift, TS700C & TS1000C Safety guidelines Use the following safety guidelines to help protect your lift from potential damage and to ensure your own personal safety.  Read all the installation instructions before testing or installing your lift.
Page 4: Specifications And Main Dimensions
Electric TV Lift, TS700C & TS1000C 2. Specifications and main dimensions. Materials and weights: Steel, black powder coated - Weight ~ 17/23 kg Max. working loads: 65 kg (by standard installation) 29 kg (when lift is mounted upside down) 100 kg peak load Duty cycle: 10% by 50% of working load or max 2 min.
Page 5 Electric TV Lift, TS700C & TS1000C Main dimensions, TS1000C [mm]: VESA, TS1000C: 600x400, 600x200, 600x100 400x400, 400x200, 400x100 300x300, 200x200, 200x100...
Page 6: Parts Included
Electric TV Lift, TS700C & TS1000C 3. Parts included. Lift unit ( #1 ) Lid lifter ( #2 ) Lift brackets ( #3 ) TV mounting brackets ( #4 ) (TS1000C only) R.F. Module ( #5 ) Remote control ( #6 )
Page 7: Installation
Electric TV Lift, TS700C & TS1000C 4. Installation. (Proceed only after having read the previous pages) 1) Check box contents with page 6 and read the remote RF instruction. Connect the lift (#1) to the RF Module (#5). Only once all other connections have been made plug power supply (#7) into the wall socket.
Page 8 TV lift. Raise the lift to screw into your TV’s VESA holes from behind. TS700C contains a pair of short horizontal rails Fit these rails to the front of the lift using the screws supplied, first fully raise the lift to screw into the rails threaded holes from behind**.
Page 9: Rf Remote System
Electric TV Lift, TS700C & TS1000C 5. RF remote system. Installation o connect the power supply and the motor unit to the remote re- ceiver. 2 different plug sizes make this connection only possi- ble to make in the right way...
Page 10 Electric TV Lift, TS700C & TS1000C Change of battery in RF emitter, type 27A/12V 1.) Remove the three screws on back side 2.) Remove the lid on back side 3.) Lift up old battery. In case of a leaking battery wear protection gloves.
Page 11 When the red light on the RF receiver blinks then the factory set- ting has been restored. AS AN EXTRA SAFETY FEATURE VENSET SUGGEST ALSO SETTING THE ME- CHANICAL END STOP ADJUSTMENT JUST BEYOND THE ELECTRONIC STOP...
Page 12 Using multiple TS700C/1000C combined With the optional ‘sync control box’ it is possible to synchronize two or more lifts up to a maximum of six. eg.. for extra wide or extra heavy screens. See Venset.com...
Page 13: Mechanical Adjusting The Stroke Length Of The Lift
Electric TV Lift, TS700C & TS1000C 7. Mechanical adjusting the stroke length of the lift. Note: see page 11a before making a mechanical adjustment Adjusting the bottom stop: The bottom stop can be adjusted to any preferred height, e.g. if you don’t want the lift to go all the way down into the cabinet.
Page 14 Electric TV Lift, TS700C & TS1000C Adjusting the top stop: The top stop can be adjusted to any preferred height, e.g. if you don’t want the lift to go all the way up out of the cabinet. You can adjust just one or both end stops.
Page 15: Declaration Of Conformity
8. Declarations of conformity. We hereby declare, under our sole responsibility that the following products: electric TV-lift mechanism product type TS700C / TS1000C which are covered by this statement, are in conformity with the following standards and other normative documents:: Counsel Directive 89/336/EØF with later changes...
Page 16 Electric TV Lift, TS700C & TS1000C...
Page 17 Electric TV Lift, TS700C & TS1000C The information in this document is subject to change without notice.

This manual is also suitable for:

Ts1000c
