Adjusting endstops, TS700X / TS1000X

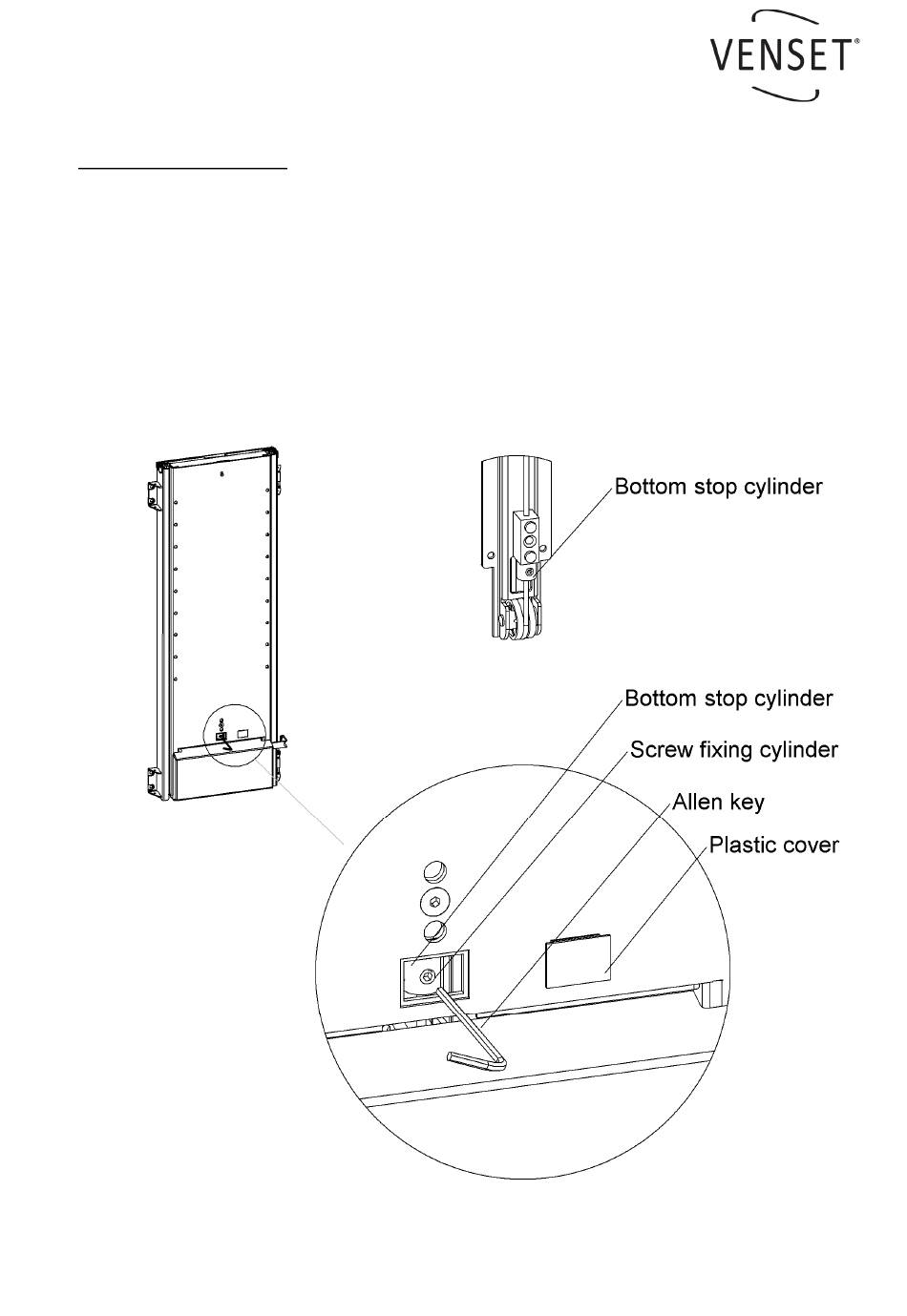

Bottom stop adjustment
1. Make sure the lift is in lowest position.
2. Remove plastic cover.
3. Loosen the bottom stop cylinder screw with approx. 2 rounds.
A 2,5mm allen key is required.
4. By using the rocker switch move the lift to new min. height.
5. Push the bottom stop cylinder down activating the micro switch (a click sound will tell
that the switch has been activated) and tighten the cylinder screw.
