Venset TS700A Installation Instructions Manual

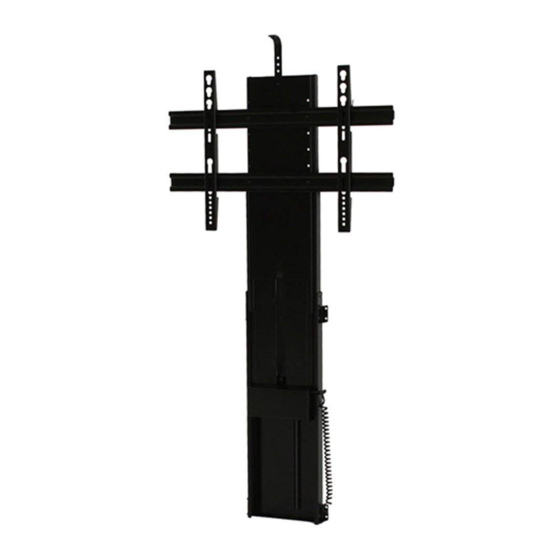

Electric tv lift
Hide thumbs Also See for TS700A:

Advertisement

Quick Links

Electric TV Lift, TS700A & TS1000A
TS1000A
INSTALLATION INSTRUCTIONS
CONTENT:
WARNING
WARNING: FAILURE TO COMPLY WITH OR OBSERVE ALL
ASSEMBLY, SAFETY AND OPERATION INSTRUCTIONS
AND WARNINGS REGARDING THE USE OF THIS
PRODUCT MAY RESULT IN SERIOUS BODILY INJURY.
1
Load:
Min. 5 kg
Max. 100 kg
TS700A
No. #324360.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TS700A and is the answer not in the manual?

Questions and answers

Related Manuals for Venset TS700A

Summary of Contents for Venset TS700A

  • Page 1: Table Of Contents

    Electric TV Lift, TS700A & TS1000A Load: Min. 5 kg Max. 100 kg TS1000A TS700A INSTALLATION INSTRUCTIONS CONTENT: 1. Important safety instructions. 2. Specifications and main measures. 3. Parts included. 4. Installation. 5. Adjusting the stroke length of the lift.

  • Page 2: Important Safety Instructions

    Electric TV Lift, TS700A & TS1000A 1. Important safety Instructions. CAUTION: Before you begin any of the Installation procedures (4. Installation.), read and follow the warnings and safety instructions on this page. WARNING ! THIS IS NOT A TOY !

  • Page 3: Specifications And Main Measures

    Electric TV Lift, TS700A & TS1000A 2. Specifications and main measures. Materials and weights: Steel, black powder coated - Weight ~ 17/23 kg Min. Load on TV lift: 5 kg Max. Load on TV lift: 100 kg Operation: Remote & Rocker switch...
  • Page 4 Electric TV Lift, TS700A & TS1000A Main measures, TS1000A [mm]: VESA, TS1000A: 600x400, 600x200, 600x100 400x400, 400x200, 400x100 300x300 200x200, 200x100...

  • Page 5: Parts Included

    Electric TV Lift, TS700A & TS1000A 3. Parts included. Lift unit ( #1 ) Lid lifter ( #2 ) Lift brackets ( #3 ) TV mounting brackets ( #4 ) (TS1000A only) R.F. Module ( #5 ) Remote control ( #6 )

  • Page 6: Installation

    Electric TV Lift, TS700A & TS1000A 4. Installation. 1) Remove all contents from packaging and compare with parts list. 2) Place the lift unit (#1) on e.g. the back panel of cabinet in a location that will allow full up and down movement of the lift.
  • Page 7 Electric TV Lift, TS700A & TS1000A User instruction, RF remote system Installation o connect the power supply and the motor unit to the remote receiver. 2 different plug sizes make this connection only possible to make in the right way...
  • Page 8 Electric TV Lift, TS700A & TS1000A Setting options for operation of lift This remote system has 4 ‘jumpers’ inside the remote receiver box, these can be lifted and positioned ‘Left’ or ‘Right’ depending of how the functionality of the lift should be.

  • Page 9: Adjusting The Stroke Length Of The Lift

    Electric TV Lift, TS700A & TS1000A 5. Adjusting the stroke length of the lift. Adjusting the bottom stop: The bottom stop can be adjusted to any preferred height, e.g. if you don’t want the lift to go all the way down into the cabinet.
  • Page 10 Electric TV Lift, TS700A & TS1000A Adjusting the top stop: The top stop can be adjusted to any preferred height, e.g. if you don’t want the lift to go all the way out of the cabinet. Use an allen key to loosen the screw of the wire glider.

  • Page 11: Declaration Of Conformity

    Electric TV Lift, TS700A & TS1000A 6. Declarations of conformity.
  • Page 12 Electric TV Lift, TS700A & TS1000A The information in this document is subject to change without notice.
