Advanced Burner Control
Description / Applications

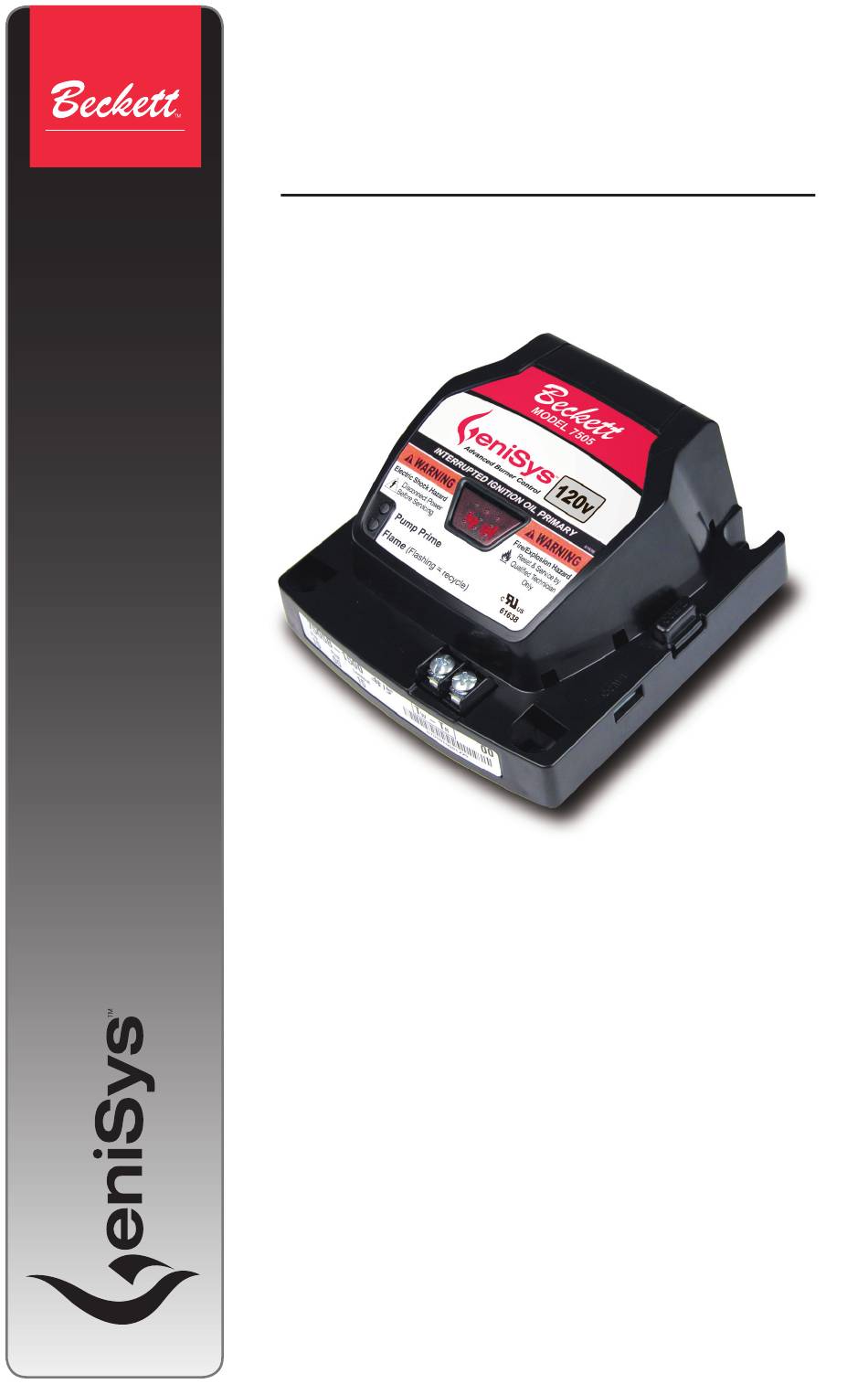

The Beckett GeniSys
Advanced Burner Control is a
TM
120 Vac primary safety control for residential and light
commercial oil burners used in boiler, furnace, and
water heater applications having fi ring rates less than
20 GPH. The GeniSys is used with a suitable cad cell
fl ame sensor to control the oil burner motor, igniter,
and optional solenoid valve. It has 24 Vac thermostat
terminals (if applicable) compatible with both mechanical
and many power stealing thermostats. It can also provide
interrupted or intermittent duty ignition.

Advertisement

Table of Contents
loading

Summary of Contents for Beckett GeniSys 120V

  • Page 1 Model 7505 PARTS & ACCESSORIES Advanced Burner Control Description / Applications The Beckett GeniSys Advanced Burner Control is a 120 Vac primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications having fi ring rates less than 20 GPH.
  • Page 2 1 - Beckett snap-on alarm module required for direct replacement of this control. 2 - Valve-on delay and motor-off delay timings on all models are programmable with Beckett snap-on programming display. Other factory set timings are available. Contact Beckett for alternate timings.
  • Page 3 Figure 1 – Getting to know the control Reset Button with Red Light Yellow Light Green Light Communication Port 2 Thermostat Terminals Communication (if applicable) Port 1 Wiring Connections Cad Cell Connections Optional Snap-on Alarm Module: Optional Snap-on Display Module: For adding isolated low voltage alarm For programming and diagnostics contacts to the base control.
  • Page 4: Electrical Ratings

    Installation/Operation/ Do Not Use This Maintenance Control in an Application that is Not Within the Ratings Listed in This Professional Section. Improper Control Operation Service Required May Result. Incorrect installation or misuse Electrical Ratings of this control could result in severe personal injury, death, or substantial property damage from Inputs:...
  • Page 5 Fire or Explosion Incorrect Wiring Hazard Will Result in Can cause severe injury, death, or Improper Control Operation property damage. • GeniSys wiring label colors may not match the wire colors of the burner or other • The control can malfunction if it gets wet, manufacturers’...
  • Page 6 Typical Boiler Wiring: Figure 2 – 7505A Figure 4 – 7505B (for replacement of R8184G) (for replacement of R7184B) Intermittent ignition, no valve-on delay, Interrupted ignition, valve-on delay only ► ► no motor-off delay (no motor-off delay) BOILER CONTROL BOILER CONTROL THERMOSTAT THERMOSTAT IGNITER...
  • Page 7 NOTE: If the thermostat short cycles or operates improp- erly, it may require an isolation relay for proper operation. The Beckett A/C Ready Kit (part no. 51950U) provides this function. Wiring instructions are included with the A/C Ready Kit.
  • Page 8: Startup / Checkout

    Startup / Checkout green light is on continuously and Fire Hazard that the control remains in Standby mode. Reset and Service by Qualifi ed End the call for heat and remove the Technician only. cad cell jumper. ◦ Simulate Flame Failure and Ignition If the burner or control fails any of the Failure following tests, recheck control wiring.
  • Page 9: Sequence Of Operation

    Sequence of Operation Burner States Pump Standby prime Standby: The burner is idle, waiting for a call for heat. Trial for Valve-on Lockout Valve-On Delay: The igniter and ignition delay motor are on while the control delays turning on the oil solenoid Ignition valve for the programmed time.
  • Page 10: Priming The Pump

    Initiate a call for heat. Priming the Pump After the burner starts, press and Prepare the burner for priming hold the reset button for 15 seconds by attaching a clear plastic hose until the yellow light turns on. This over the bleed port fi tting and fully indicates that the button has been opening the pump bleed port.
  • Page 11: Maintenance

    Cad Cell Resistance Measurement Disable Function If the Beckett 7505 control is equipped ◦ Any time the burner is running, press with the GeniSys Display Module, part and hold the reset button to disable the 52067U, the cad cell resistance can be burner.
  • Page 12: Limited Warranty Information
