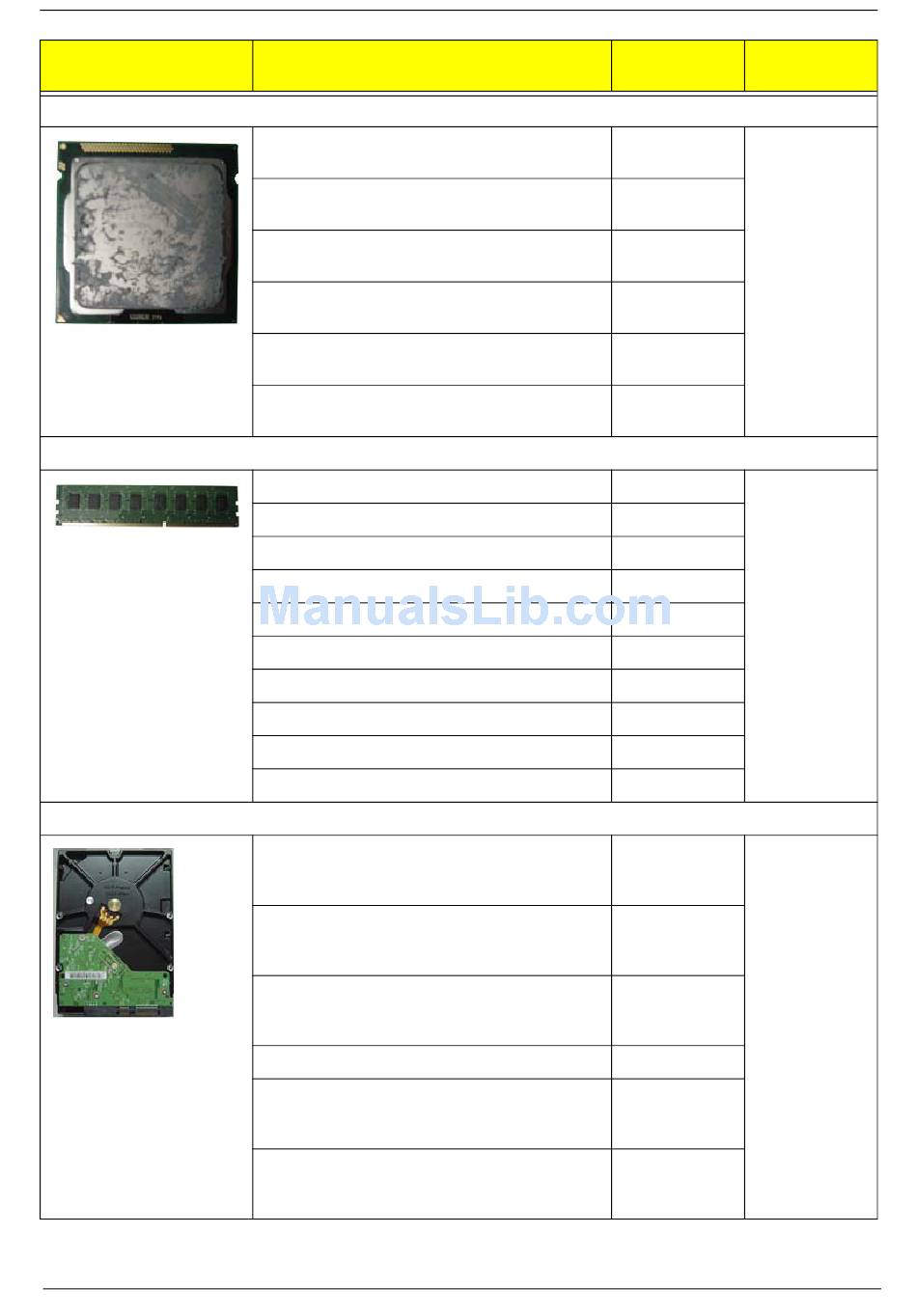

Acer Aspire M3970 Service Manual page 111

Category
CPU
Memory
HDD
Chapter 6
Part Number
CPU Intel Core i7 2600 3.4G 8M 1333 95W D-2
LGA-1155, Sandy Bridge
CPU Intel Core i5 2500 6M 1333 95W D-2 3.3G,
LGA1155, Sandy Bridge
CPU Intel Core i5 2400 6M 1333 95W D-2
LGA1155, Quad Core
CPU Intel Core i5 2300 2.8G 6M 1333 95W D-2
LGA1155, Sandy Bridge, Quad Core
CPU Intel Core i3 2120 LGA 3M 1333 1155 65W
3.3G, Dual Core
CPU Intel Core i3 2100 LGA 3M 1333 1155 65W
3.1G, Dual Core
M378B2873FHS-CH9 LF 128*8 46nm
M378B5773DH0-CH9
M378B5273DH0-CH9 4GB
ACR128X64D3U1333C9 LF 128*8 0.07um
ACR256X64D3U1333C9 LF 128*8 0.07um
GU502203EP0201 LF 128*8 0.065um
GU512303EP0202 LF 128*8 0.065um
75.073C1.G02 LF 128*8 0.065um
NT4GC64B8HB0NF-CG 4GB
MT16JTF51264AZ-1G4D1 4GB
"HDD HGST 3.5"" 7200rpm 320GB
HDS721032CLA362 (Jupiter) SATA II 16MB LF F/
W:3EA"
"HDD HGST 3.5"" 7200rpm 500GB
HDS721050CLA362 (Jupiter) SATA II 16MB LF F/
W:3EA"
"HDD HGST 3.5"" 7200rpm 1000GB
HDS721010CLA332 (Jupiter) SATA II 32MB LF F/
W:3EA"
"HDD HGST 3.5"" 7200rpm 1500GB SATA III"
"HDD SEAGATE 3.5"" 7200rpm 320GB
ST3320413AS(Pharaoh 6G) SATA III 16MB LF F/
W:JC45"
"HDD SEAGATE 3.5"" 7200rpm 500GB
ST3500413AS(Pharaoh 6G) SATA III 16MB LF F/
W:JC45 "
Exploded
Acer P/N
Diagram Item
KC.26001.CI7 N/A
KC.25001.CI5
KC.24001.CI5
KC.23001.CI5
KC.21201.CI3
KC.21001.CI3
KN.1GB0B.036 N/A
KN.2GB0B.033
KN.4GB0B.014
KN.1GB07.002
KN.2GB07.002
KN.1GB0H.015
KN.2GB0H.009
KN.2GB03.022
KN.4GB03.006
KN.4GB04.002
KH.32007.011 37
KH.50007.012
KH.01K07.003
TBD
KH.32001.022
KH.50001.022
