Installation &
Operation Manual
WWF-5403 Series
WWF-5404 Series

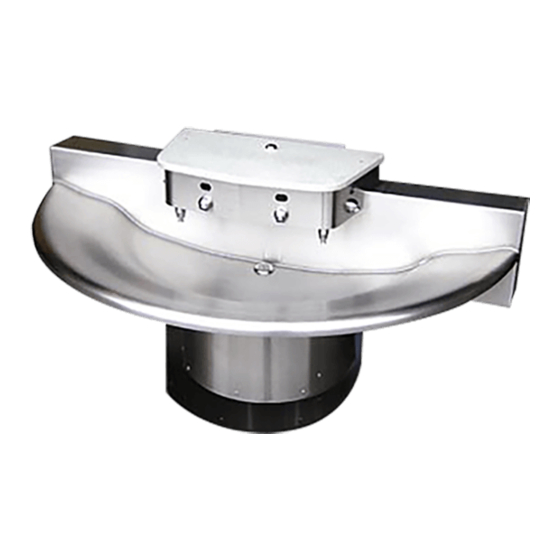

Three- or Four-station 54" 180°
Stainless Steel Washfountain
Electronic/Pneumatic
Table of Contents
Pre-Installation Information ���������������������������������������� 3
Physical / Rough-in Dimensions ��������������������������������� 4
Required Installation Supplies ������������������������������������ 7
Parts List �������������������������������������������������������������������� 8
Exploded-view Drawing ��������������������������������������������� 9
Hardware Identification �������������������������������������������� 10
Installation Instructions �������������������������������������������������
Step 1: Pedestal Mounting ���������������������������������� 11
Step 2: Drain Assembly ��������������������������������������� 12
Step 3: Head and Basin Assembly ���������������������� 13
*WWF-5403/5404 Assembly Drawing ���� 14
Step 4A: Connections for Infrared/Piezo
Actuators �������������������������������������������������������������� 15
Step 5: Final Assembly ���������������������������������������� 17
JACO Fitting Instruction ������������������������������������������� 18
Adjustable Mixing Valve Installation ������������������������� 19
Infrared Sensor Installation Instructions ������������������� 20
Pneumatic Valve Operation Details �������������������������� 21
Liquid Soap Specification and Maintenance ������������ 22
Care and Maintenance ��������������������������������������������� 23
Troubleshooting ������������������������������������������������������������
Infrared Sensors ��������������������������������������������������� 24
Electronic Valves �������������������������������������������������� 25
Pneumatic Valves ������������������������������������������������� 26
Battery Operated Valves �������������������������������������� 27
Replacement Part Numbers ������������������������������������� 28
Drawings ����������������������������������������������������������������������
General Dimensions and Rough-in Detail ������������ 29
Rough-in Detail ���������������������������������������������������� 31
Valve Details ��������������������������������������������������������� 32
Miscellaneous Details ������������������������������������������ 41
Warranty ������������������������������������������������������������������� 45
