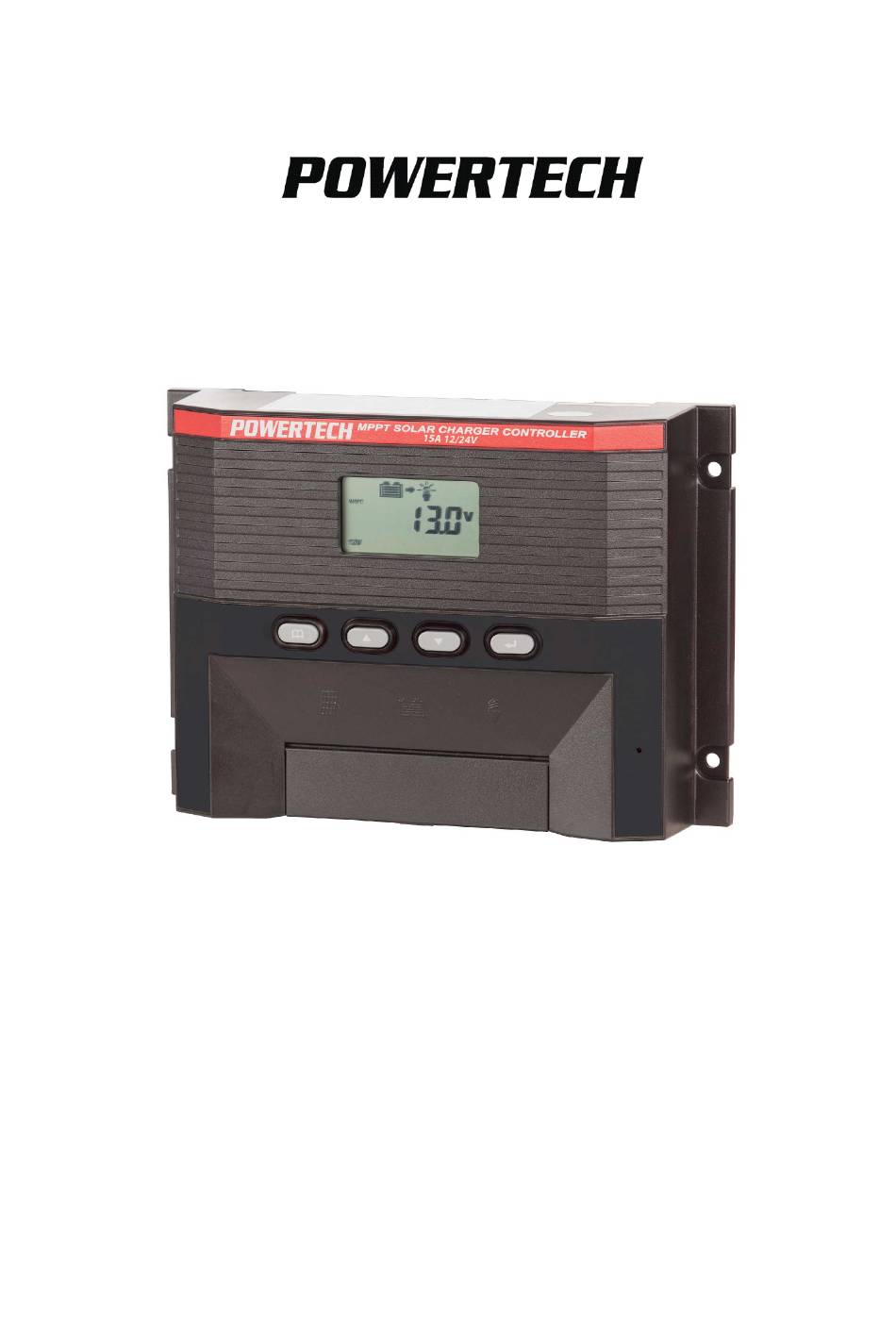

- Page 1 Operating Manual MP-3739...
-
Page 2: About This Manual
And pass then on to any future owner or user of this product. This manual describes the installation, function, operation and maintenance of the solar system controller MP-3739. These operating instructions are intended for end customers. A technical expert must be consulted in cases of uncertainty. -
Page 3: Operating The Controller
When parts are loose In these cases immediately remove the solar charge controller from the solar panels and battery. Function The solar system controller, MP-3739 carries the following features: Monitors the state of charge of the battery Controls the charging process... -
Page 4: Display Window
Display window You can change the display windows with the “Menu” button, which provides the following windows: Default window -> Charge current display -> Load current display -> System clock -> Bulk charge voltage -> Float charge voltage -> Night light function (NLF) -> Timer1 -> Timer2 -> Default window Menu Functions and Programming Default window The default window will show battery voltage/capacity volume of the... - Page 5 When the charging current or load current is less than 0.5Amp, the LCD will always show Min A. When there is no output for charge current or load current, the display will show 0Amp. System clock From the default display window, press “menu” button 3 times to show controller’s system clock.
- Page 6 Standard Controller Mode and Evening/Morning Mode. To program standard controller mode, set NLF=OFF. The MP-3739 recognizes days and night based on the solar array voltage. NLF will start when the PV(Voltage) < 10V for a period of time.
- Page 7 The set points of the deep discharging protection are predefined and cannot be reset. MPPT function MP-3739 uses the latest MPPT technology at all times which gives the maximum available output of the solar module. 5V USB output Provide 5Vdc/500mA power supplier.
-
Page 8: Installation
Do not install MP-3739 outdoors, the unit should be installed so that it is protected against humidity, dripping, rainwater as well as direct and indirect warming from sunlight. To ensure proper air circulation for cooling MP-3739, an area of 15cm on each side of the MP-3739 must be kept free. -
Page 9: Mounting The Solar Charge Controller
M4x35 (DIN 7996). Grounding Grounding MP-3739 is not technically required when installing a stand alone solar system. However, if required, common grounding of the negative of the PV array, battery and load control output is OK for negative earth electrical systems (such as a caravan or motor-home). -
Page 10: Charging Curve
TECHNICAL INFORMATION 180W-12V battery, 360W-24V battery Max PV Array Size 12V or 24V nominal only PV Array Voltage 15ADC Max. Input Current 50VDC Max. Input Open Circuit Voltage (OCV) 15ADC Max. Load Current 13.8V-14.8V/27.6V-29.6V Charge Voltage(Bulk) 13.0V-14.2V/26.0V-28.4V Charge Voltage(Float) 11.0/22.0VDC ±2% Deep Discharge Protection Voltage 12/24VDC Output Voltage... -
Page 11: Maintenance
Maintenance The controller is maintenance-free. We strongly suggest that all components of the PV system are checked at least annually, Ensure adequate ventilation of the cooling element or body of the controller. Check any cable strain reliefs Check that all cable connections are secure Tighten screws if necessary Check and remove any terminal corrosion Error Messages... - Page 12 Meaning: Over voltage on the battery. Which means the battery is abnormally over charged. Remedy: replace the battery. Generally with an aged battery system, it gets higher voltage when charging due to the depreciation of the capacity. Replace the battery system to see if the problem still exists. Electrical products should not be disposed with household waste Distributed by:...
Need help?
Do you have a question about the MP-3739 and is the answer not in the manual?
Questions and answers

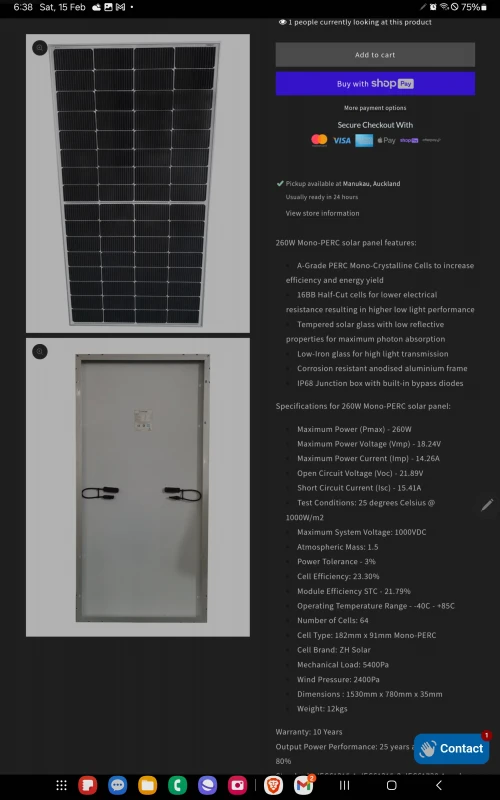

Can I use this controller with this solar panel? 260W Mono-PERC solar panel features: A-Grade PERC Mono-Crystalline Cells to increase efficiency and energy yield 16BB Half-Cut cells for lower electrical resistance resulting in higher low light performance Tempered solar glass with low reflective properties for maximum photon absorption Low-Iron glass for high light transmission Corrosion resistant anodised aluminium frame IP68 Junction box with built-in bypass diodes Specifications for 260W Mono-PERC solar panel: Maximum Power (Pmax) - 260W Maximum Power Voltage (Vmp) - 18.24V Maximum Power Current (Imp) - 14.26A Open Circuit Voltage (Voc) - 21.89V Short Circuit Current (Isc) - 15.41A Test Conditions: 25 degrees Celsius @ 1000W/m2 Maximum System Voltage: 1000VDC Atmospheric Mass: 1.5 Power Tolerance - 3% Cell Efficiency: 23.30% Module Efficiency STC - 21.79% Operating Temperature Range - -40C - +85C Number of Cells: 64 Cell Type: 182mm x 91mm Mono-PERC Cell Brand: ZH Solar Mechanical Load: 5400Pa Wind Pressure: 2400Pa Dimensions : 1530mm x 780mm x 35mm Weight: 12kgs
The PowerTech MP-3739 controller supports a maximum PV array size of 180W for a 12V battery and 360W for a 24V battery. If using a 12V battery, a 260W panel exceeds the 180W limit and is not suitable. If using a 24V battery, a 260W panel is within the 360W limit and can be used. However, ensure the panel's open-circuit voltage (OCV) does not exceed the controller's 50VDC limit.
