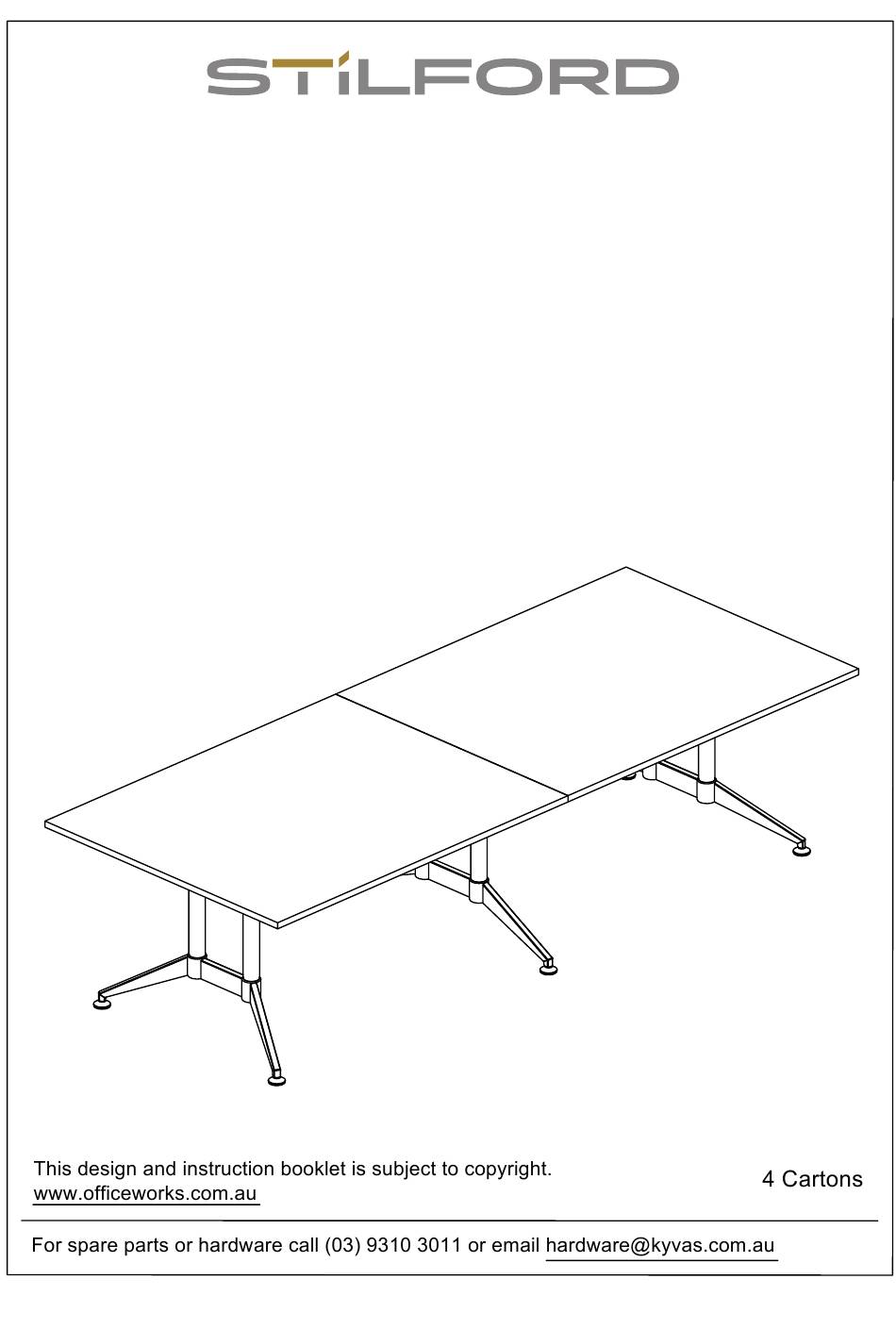

- Page 1 ASSEMBLY INSTRUCTIONS Stilford Professional Meeting Room Table 2400, 3000 and 3600 STMRT24WEK / STPMR24OAK / STPMR24WNK / STMRT30WEK / STPMR30OAK / STPMR30WNK / STMRT36WEK / STPMR36OAK / STPMR36WNK 1/18...
- Page 2 Important Estimated Assemble Time: 70min Customer Service Contact Details People Required General Advice Spare Parts & Hardware More Than One Person Is Required Assemble On A Clean Flat (03) 9310 3011 To Safely Assemble The Item Surface Tools Required CAUTION: Do not use tools other than those required, as this can damage your new item.
- Page 3 Part Overview 3/18...
-
Page 4: Part List
Part List Parts located in 2 x Carton - STPMRT12WE / STPRMR12OA / STPRMR12WN / STPMRT15WE / STPRMR15OA / STPRMR15WN / STPMRT18WE / STPRMR18OA / STPRMR18WN Parts located in Carton - STPRTB24B1 4pcs 4pcs 2pcs 4pcs 2pcs 2pcs 2pcs 2pcs 4/18... -
Page 5: Hardware List
Hardware List Hardware A located in Carton - STPMRT12WE / STPRMR12OA / STPRMR12WN / STPMRT15WE / STPRMR15OA / STPRMR15WN / STPMRT18WE / STPRMR18OA / STPRMR18WN... - Page 8 Step 6 Note: Do not tighten the screw B fully until you have completed Step 12 or Step15 or Step18 ! 4pcs Step 7 Note: Do not tighten the screw B fully until you have completed Step 12 or Step15 or Step18 ! 2pcs 8/18...
- Page 9 Note: Tighten the screws C fully after Step 8 you confirmed the part 7 & 8 are at right (vertical)angle. 16pcs Step 9 6pcs 9/18...
- Page 10 Note: Assemble 3 different table sizes by adjusting the frame. Option 1, size: W2400*D1200*H750mm 11-12 Option 2, size: W3000*D1200*H750mm 13-14 Option 3, size: W3600*D1200*H750mm 15-16 10/18...
- Page 11 Step 10 For W2400*D1200*H750mm Table Note: Adjust part 7 to be suitable for the table top by below pre-drilled (marked in black) 1200 6pcs 8pcs 12pcs 11/18...
- Page 12 Step 11 For W2400*D1200*H750mm Table 16pcs 32pcs Note: Tighten the screw B fully after adjusting the leg at correct position. Step 12 For W2400*D1200*H750mm Table 12/18...
- Page 13 Step 13 For W3000*D1200*H750mm Table Note: Adjust part 7 to be suitable for the table top by below pre-drilled (marked in black) 1500 12pcs 6pcs 8pcs 13/18...
- Page 14 Step 14 For W3000*D1200*H750mm Table 16pcs 32pcs Note: Tighten the screw B fully Step 15 after adjusting the leg at correct position. For W3000*D1200*H750mm Table 14/18...
- Page 15 Step 16 For W3600*D1200*H750mm Table Note: Adjust part 7 to be suitable for the table top by below pre-drilled (marked in black) 1800 12pcs 6pcs 8pcs 15/18...
-
Page 17: Care Advice
Maximum Load Capacity: 50kg Your Stilford Professional Meeting Room Table 2400, 3000 and 3600 is now complete and ready for use Care Advice Care Instructions - PVC/ Melamine Finish Desk Keep away and protect from direct sunlight and heat. Do not place sharp materials(knife, fork, etc) directly onto your furniture as sharp material may scrape and damage the finish. - Page 18 Warranty 15 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 15 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
