ASSEMBLY INSTRUCTIONS

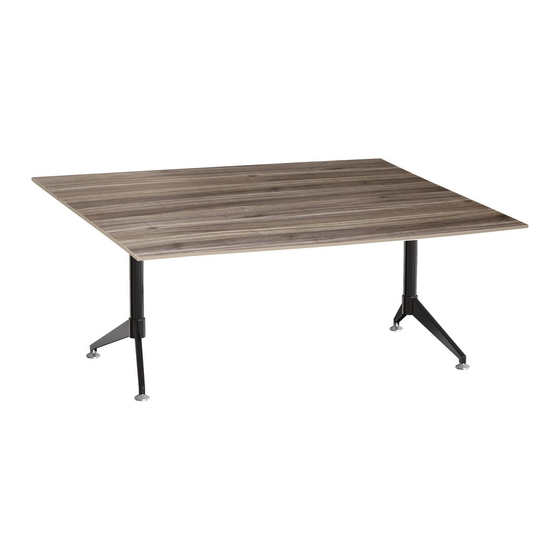

Stilford Professional Meeting Room Table 1200,
STPMR12WEK / STPMR12OAK / STPMR12WNK /
STPMR15WEK / STPMR15OAK / STPMR15WNK /
STPMR18WEK / STPMR18OAK / STPMR18WNK
This design and instruction booklet is subject to copyright.
www.officeworks.com.au
For spare parts or hardware call (03) 9310 3011 or email hardware@kyvas.com.au
1500 and 1800
1/17
2 Cartons
Advertisement
Related Manuals for STILFORD STPMR12WEK
Summary of Contents for STILFORD STPMR12WEK
- Page 1 ASSEMBLY INSTRUCTIONS Stilford Professional Meeting Room Table 1200, 1500 and 1800 STPMR12WEK / STPMR12OAK / STPMR12WNK / STPMR15WEK / STPMR15OAK / STPMR15WNK / STPMR18WEK / STPMR18OAK / STPMR18WNK This design and instruction booklet is subject to copyright. 2 Cartons www.officeworks.com.au For spare parts or hardware call (03) 9310 3011 or email hardware@kyvas.com.au...
- Page 2 Important Estimated Assemble Time: 50min Customer Service Contact Details People Required General Advice Spare Parts & Hardware More Than One Person Is Required Assemble On A Clean Flat (03) 9310 3011 To Safely Assemble The Item Surface Tools Required CAUTION: Do not use tools other than those required, as this can damage your new item.
- Page 3 Part Overview 3/17...
-
Page 4: Part List
Part List Parts located in Carton - STPRMR12WE / STPRMR12OA / STPRMR12WN / STPRMR15WE / STPRMR15OA / STPRMR15WN / STPRMR18WE / STPRMR18OA / STPRMR18WN Parts located in Carton - STPRTB128B 2pcs 4pcs 2pcs 2pcs 4/17... -
Page 5: Hardware List
Hardware List Hardware Pack located in Carton - STPRTB128B （ M10 x 70 mm ） （ M10 x 50 mm ） （ M8 x 80 mm ） （ M8 x 50 mm ） （ M8 x 16 mm ） X 2pcs X 2pcs X 4pcs X 4pcs... - Page 6 Hardware List Hardware A located in Carton - STPRMR12WE / STPRMR12OA / STPRMR12WN / STPRMR15WE / STPRMR15OA / STPRMR15WN / STPRMR18WE / STPRMR18OA / STPRMR18WN （ M6 x 16 mm ） X 16pcs Other Hardware located in Carton - STPRTB128B Connector Adjust Feet X 8pcs...
- Page 7 Assembly Step 1 4pcs Step 2 2pcs Step 3 Note: Do not tighten the screw E fully until you have completed Step 8 or Step11 or Step14 ! 4pcs 7/17...
- Page 8 Step 4 90° Note: Tighten the screw G fully after you confirmed the part & are at right (vertical) angle. 4pcs Step 5 2pcs 4pcs 8/17...
- Page 9 Note: Assemble 3 different table sizes by adjusting the frame. Option 1, size: W1200*D1200*H750mm 10-11 12-13 14-15 9/17...
- Page 10 Step 6 For W1200*D1200*H750mm Table Note: Adjust part 6 to be suitable for the table top by below pre-drilled (marked in black) 1200 4pcs 4pcs 8pcs 10/17...
- Page 11 Step 7 For W1200*D1200*H750mm Table 4pcs 8pcs Note: Tighten the screw C & E fully after adjusting the leg at correct position. For W1200*D1200*H750mm Table 11/17...
- Page 12 Step 9 For W1500*D1200*H750mm Table Note: Adjust part 6 to be suitable for the table top by below pre-drilled (marked in black) 1500 4pcs 4pcs 8pcs 12/17...
- Page 13 Step 10 For W1500*D1200*H750mm Table 4pcs 8pcs Note: Tighten the screw C & E fully Step 11 after adjusting the leg at correct position. For W1500*D1200*H750mm Table 13/17...
- Page 14 Step 12 For W1800*D1200*H750mm Table Note: Adjust part 6 to be suitable for the table top by below pre-drilled (marked in black) 1800 4pcs 4pcs 8pcs 14/17...
- Page 15 Step 13 For W1800*D1200*H750mm Table 4pcs 8pcs Note: Tighten the screw C & E fully Step 14 after adjusting the leg at correct position. For W1800*D1200*H750mm Table 15/17...
-
Page 16: Care Advice
Maximum Load Capacity: 50kg Your Stilford Professional Meeting Room Table 1200,1500 and 1800 is now complete and ready for use Care Advice Care Instructions - PVC/ Melamine Finish Desk Keep away and protect from direct sunlight and heat. Do not place sharp materials(knife, fork, etc) directly onto your furniture as sharp material may scrape and damage the finish. - Page 17 Warranty 15 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 15 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
