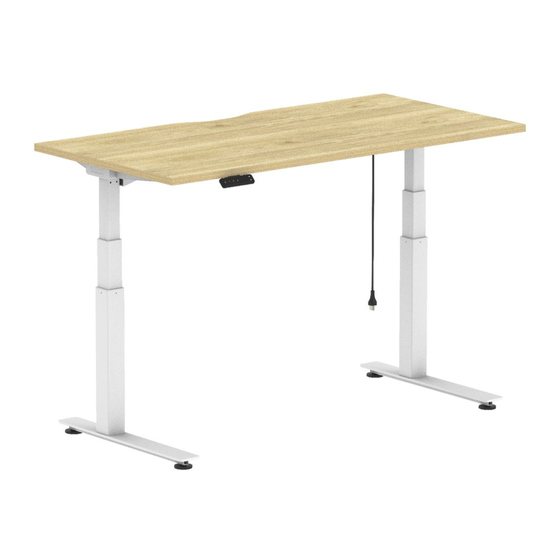

- Page 1 STILFORD DUAL MOTOR ELECTIC HEIGHT ADJUSTABLE DESK FRAME: STDMDFWE/ STDMDFBK DESKTOP: S2EDT157WE, WB,WO,OA,WN/ S2EDT187WE,WB,WO,OA,WN WEIGHT CAPACITY 2 cartons For spare parts or hardware call 1300 OFFICE. 1/13...
- Page 2 2/13...
- Page 3 Tools Required CAUTION: Do not use tools other than those required, as this can damage your new item NOTE • Please check you have all hardware before assembling. • If you are missing any hardware, please contact 1300 OFFICE. • Please ensure you have the name of the item, required hardware part and quantity.
-
Page 4: Safety And Warnings
Safety and Warnings • This table complies with the prescribed safety regulations. Inappropriate use may cause damage to persons and table. • Please read the operation manual prior to start using the table. It provides you with important information about safety, use, installation and maintenance of the table, and thus protecting you and your children and avoiding damage on the table. - Page 5 This Assembly instruction covers both 1500mm and 1800mm sizes STDMDFWE,STDMDFBK Attention: Do not tighten the screws before all of the screws are in the correct place. 5/13...
- Page 6 Hardware located in carton- STDMDFWE,STDMDFBK 6/13...
- Page 7 Please ensure the longer part of the leg is facing Step 1 the same direction as the front of the desk. Front Loosen the screws before unfolding the legs. Fasten once legs are unfolded. 7/13...
- Page 8 Step 2 Beam adjustment for 1800mm straight desk as follows: Front Pre Assembled L=1400 for straight 1500mm desk. L=1700 for straight 1800mm desk. 8/13...
- Page 9 Step 3 Front 9/13...
- Page 10 Step 4 Front Do not use M3 10/13...
- Page 11 Step Front CAUTION Please complete the learning and reset process. After assembling the desk and before use. When power has been disconnected. Learning and Reset Process Press down arrow for 5 seconds until it shows , the desk will automatically move down to the lowest position and rebound back up. 11/13...
- Page 12 Step 12/13...
- Page 13 Warranty 15 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 15 years (desk), 5 years (motor, transformers, controller) from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
