Edition: 02.02.2021
EN
Instruction manual for Full Body Harnesses
C2, C3, V3, V20,V33, V34 certified according to EN 361

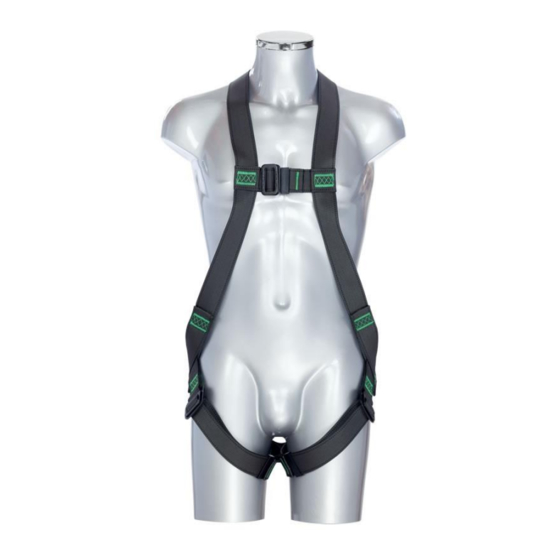

C2
C3
V3
V33
V20
V33 Flex Comfort
V33 Rescue
V33 Pharma
V34 Offshore
V33 Safe Recovery
Thank you for choosing a VERTIQUAL® harness! You have purchased a high quality product that will reliably protect you and will be your companion for a long time
when working at heights and depths.
This manual must be read and understood before using the product! This product will be used with other equipment (components) thus forming a system for working at
heights. Please refer to the instruction manual of each component in your system for compatibility and correct use! Following these instructions accordingly is essential for
your safety. Failure to do so can result in serious or even fatal accidents! Keep these instructions together with the product, accessible to all users, so they can consult
them whenever is needed!
WARNING! These instructions are a basic comprehensive guide to the safe use of the purchased equipment. They contain general information about the product, intended
to help the user, but cannot cover all the situations that may occur in the daily activities and cannot in any case replace the specialized training courses for safety at heights.
This PPE against falls from heights can only be used by well-trained users, who are familiar with the relevant legislation and who have successfully completed a special
safety training course for working at heights.
WARNING! For works with risk of falling from heights or in depths, a risk assessment must be carried out in advance in accordance with current regulations and legal
provisions (EN standards or specific national rules) that will provide adequate measures for safety and rescue!
WARNING! Instructions for use are updated when technical or legislative changes occur. The lates version of the instructions overwrites previous versions and is the only
valid version. Please make sure you follow the instructions of the most recent version. You can download the most recent instructions from our website
www.vertiqualsafety.com
by accessing the section of each product. For help or additional questions, please contact us at
office@vertiqualsafety.com
or Tel. (+40)
0365/882143.
WARNING! The user must be medically fit and capable to ensure his own safety and act accordingly in possible emergency situations! Seek medical approval according
to the national legislation in force!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vertiqual Engineering C2

  • Page 1 Edition: 02.02.2021 Instruction manual for Full Body Harnesses C2, C3, V3, V20,V33, V34 certified according to EN 361 V33 Flex Comfort V33 Rescue V33 Pharma V34 Offshore V33 Safe Recovery Thank you for choosing a VERTIQUAL® harness! You have purchased a high quality product that will reliably protect you and will be your companion for a long time when working at heights and depths.
  • Page 2 1,5 m ! VERTIQUAL harnesses are manufactured in two main series. CHANTIER series, which have the “C” identifier in the begining of the name (eg. C2 , C3) and VERTIQUAL ® series which have the “V” identifier in the begining of the name (eg. V3, V33). All VERTIQUAL® harnesses (Chantier & Vertiqual series) have a minimum breaking load of 15 kN.
  • Page 3 Edition: 02.02.2021 1.The marking/label is missing or is unreadable. 2.Damage has been identified (incisions, worn seams, discoloration, hardened or thinned areas, burns, rusted or deformed metal parts, defective buckles) or if any abnormalities of the parts or structure have been found. 3.Contact with paints or unknown chemicals had occurred (irreversible contaminations).
  • Page 4 If the user is unable to do so or if he does not have the competence to do so, he cannot use this PPEaF. VERTIQUAL Engineering SRL herewith rejects any liability claims for direct, indirect, accidental or consequential damages resulting from the use of this PPEaF (Personal Protective Equipment against Fall).

This manual is also suitable for:

C3V3V33V20V33 flex comfortV33 rescue ... Show all
