QTech QT650 User Manual page 16

30

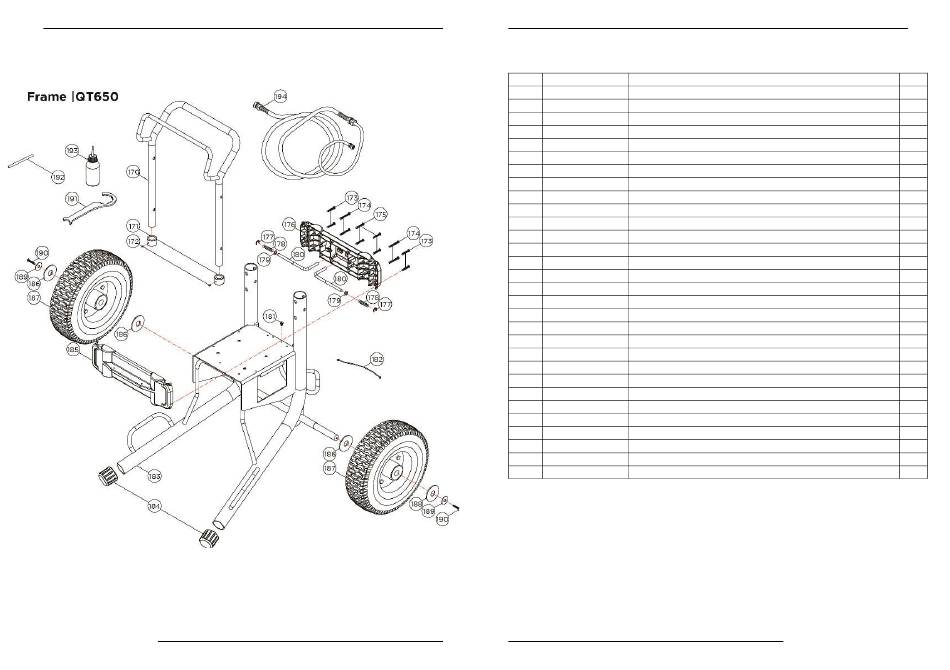

Frame
SprayForthedecorator.com
Frame
ITEM PRODUCT CODE DESCRIPTION
170 12-095 HANDLE
171
12-082 HEAD LOCKING KNOB (Ø22.5xØ32x18)
172
12-135 SOCKET SET SCREW (M4x4xP0.7)
173
12-132 PANHEAD TAPPING SCREW-B (M5x25)
174 12-134 PANHEAD TAPPING SCREW-B (M5x40)
175 12-133 PANHEAD TAPPING SCREW-B (M5x30)
176 12-109 CROSSPIECE-REAR (BLACK)
177 12-152 E-CLIP (E-7)
178 12-077 SPRING (Ø1.0xØ8.5xØ10.5x9Tx35L)
179 12-167 FLAT WASHER (Ø8xØ16x1.5)
180 12-096 RELEASE LEVER (Ø8x132.9x60)
181
12-142 PANHEAD MACHINE SCREW (M5x6xP0.8)
182
12-650-25 EARTH WIRE (Ø3x120MM)
183 12-081 FRAME
184 12-113 END CAP
185 12-110 CROSSPIECE-FRONT (BLACK)
186 12-075 FLAT WASHER
187 12-121 WHEEL
188 12-075 FLAT WASHER
189 12-650-26 FLAT WASHER (Ø1/4xØ32x2)
190 12-168 HEX BOLT (M6x16xP1.0)
191
12-071 DUAL PURPOSE WRENCH
192
12-001 PACKING NUT TOMMY BAR
193 Q400-005 Q-LUBE PISTON LUBRICANT
194 63815FFTD TOUGHFLOW HOSE 3/8 x 15M
195 61401EETD TOUGHFLOW HOSE 1/4 x 1M
31
QTY
1
2
2
4
4
4
1
2
2
2
2
1
1
1
2
1
4
2
4
2
2
1
1
1
1
1
QTech QT650 Airless Sprayer
