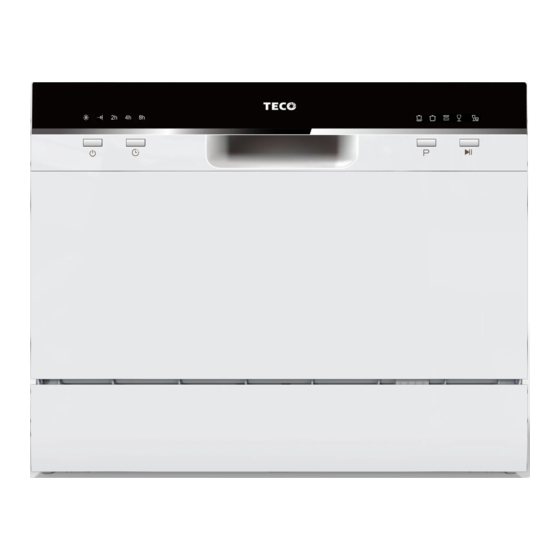

TDW06WBM
TDW06SBM
Please read this manual carefully
before using the dishwasher and
Keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDW06WBM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TECO TDW06WBM

Summary of Contents for TECO TDW06WBM

  • Page 1 TDW06WBM TDW06SBM Please read this manual carefully before using the dishwasher and Keep this manual for future reference.

  • Page 2: Table Of Contents

    CONTENTS PAGE SAFETY INFORMATION QUICK USER GUIDE USING YOUR DISHWASHER Preparing and loading dishes Function of the rinse aid and detergent Filling the rinse aid reservoir Filling the detergent dispenser PROGRAMMING THE DISHWASHER Starting a cycle wash Changing the program mid-cycle Forget to add a dish? PRODUCT OVERVIEW MAINTENANCE AND CLEANING...

  • Page 3: Safety Information

    SAFETY INFORMATION WARNING When using your dishwasher, follow the precautions listed below: This appliance is not intended for use by persons(including children )with reduced physical, sensory or mental capabilities, or lack of experience and knowledge ,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 4 Earthing Instructions This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug. The plug must be plugged into an appropriate outlet that i s i nstalled a nd earthed in a ccordance with all local codes and ordinances.
  • Page 5 When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the door seal; 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points facing down or placed in a horizontal position.
  • Page 6 Do not wash plastic items unless they are marked “ dishwasher safe” or the equivalent. For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
  • Page 7 Disposal For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.

  • Page 8: Quick User Guide

    QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. Install the dishwasher (Please check page 25 “INSTALLATION INSTRUCTION ” Inside Outside Loading the baskets Removing the larger residue on the cutlery Filling the dispenser Selecting a program and running the dishwasher...

  • Page 9: Using Your Dishwasher

    USING YOUR DISHWASHER Control Panel Operation (Button) Power Press this button to turn on your dishwasher, the screen lights up. Delay Press the button to set the delay time. Press this button to select the appropriate washing program, the Program selected program indicator will be lit.
  • Page 10 Program end Progress when the program is end, the indicator will be lit. indicator Delay time To show the delay time. (2h/4h/8h) Intensive For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.

  • Page 11: Preparing And Loading Dishes

    Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles...
  • Page 12 Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage, glasses should not touch one another.
  • Page 13 Loading the basket All tableware can't be placed face up, in order to improve the cleaning area and washing performance, it is recommended to place the dirty side towards the spray arm. Please don't let tableware out of basket bottom to make sure not block the moving of the spray arm.

  • Page 14: Function Of The Rinse Aid And Detergent

    Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher.

  • Page 15: Filling The Rinse Aid Reservoir

    Filling The Rinse Aid Reservoir Rinse-Aid indicator To open the dispenser, turn the cap Carefully pour in the rinse-aid into to the "open" (left) arrow and lift its dispenser, whilst avoiding it to it out. overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash.

  • Page 16: Filling The Detergent Dispenser

    Filling The Detergent Dispenser Push latch to open Press the release catch on the detergent Add detergent into the larger cavity dispenser to open the cover. (A) for the main wash cycle . For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle .

  • Page 17: Programming The Dishwasher

    PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser. Description Energy Water...

  • Page 18: Starting A Cycle Wash

    NOTE: AS/NZS 2007.1 This program is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1. Starting A Cycle Wash 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one. 2.

  • Page 19: Forget To Add A Dish

    Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: 1. Press the Start/Pause button to pause the washing. 2. Wait 5 seconds then open the door. 3.

  • Page 20: Product Overview

    PRODUCT OVERVIEW IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Spray arm Salt container Filter assembly Dispenser Cup rack Basket Cutlery rack NOTE: Pictures are only for reference, different models may be different. Please prevail in kind.

  • Page 21: Maintenance And Cleaning

    MAINTENANCE AND CLEANING External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door.These surfaces are outside the wash cabinet and are not accessed by water from the spray arms.
  • Page 22 Fine filter Main filter Main filter Open Open Hold the coarse filter and rotate it Lift fine filter up from main filter. anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher. Larger food remnants can be Reassemble the fi lters in the reverse cleaned by rinsing the filter under order of the dissasembly, replace the...

  • Page 23: Caring For The Dishwasher

    Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: To remove the lower spray arm, pull Wash the arms in soapy and warm out the spray arm upward.
  • Page 24 Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket. No solvents or abrasive cleaning To clean the exterior and rubber parts of the dishwasher,do not use solvents or abrasive cleaning products.Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

  • Page 25: Installation Instructions

    INSTALLATION INSTRUCTION WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. About Power Connection WARNING For personal safety: Do not use an extension cord or an adapter...

  • Page 26: Water Supply And Drain

    Water Supply And Drain Cold water connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure ordinary supply hose that the water is clear.

  • Page 27: Connection Of Drain Hoses

    Connection Of Drain Hoses Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 600mm. The free end of the hose must not be immersed in water to avoid the back flow of it.
  • Page 28 How to drain excess water from hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

  • Page 29: Troubleshooting Tips

    TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible causes Solution Dishwasher won't start Shut the door completely make sure it is latched Power supply or power Check and connect the power supply Dishwasher doesn't line is not connected...
  • Page 30 Problem Possible causes Solution Dishwasher won't start Shut the door completely make sure it is latched Power supply or power Check and connect the power supply Dishwasher doesn't line is not connected Refer to Delay Start section in this manual Delay Start option has start to reset...
  • Page 31 Problem Possible causes Solution Excessive suds caused Make sure to use only the proper by using the improper dishwasher detergent Dishwasher leaks detergent Dishwasher is not level Level the dishwasher Black or gray marks Aluminum utensils Rearrange the dishes on dishes have rubbed against Make sure the inlet water dishes...

  • Page 32: Error Codes

    ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these: Meanings Codes Possible Causes The Rapid light Faucets is not opened, or water intake is Longer inlet time. restricted, or water pressure is too low. flicker fleetly The Rapid and Not reaching required...

  • Page 33: Technical Information

    TECHNICAL INFORMATION Height (H) 438mm Width (W) 550mm Depth (D1) 500mm (with the door closed) Depth (D2) 812mm (with the door opened 90°)
  • Page 34 LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1: 1.Upper basket: Item Number Cups Saucers 6 6 6 1 1 1 Glasses 3 3 3 5 5 5 Dessert dishes 2 2 2 7 7 7 Dinner plates 4 4 4 Soup plates Cutlery basket Number Item...
  • Page 35 Product fiche Product fiche Manufacturer Teco TDW06WBM / TDW06SBM Type / Description Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.45 kWh Water consumption of the standard cleaning cycle 7.4 liter...
  • Page 36 Did you know? TECO Australia’s product range also includes: Top Load Clothes Washers Front Load Clothes Washers Twin Tub Clothes Washers Auto Sensing Condenser and Vented Clothes Dryers Refrigerators Chest and Vertical Freezers Bar Fridges Dehumidiers Televisions Air Curtains and Air Conditioners...
  • Page 37 IF SERVICE IS REQUIRED: If you have a problem, and the problem persists after you have made the checks mentioned in this manual, contact: TECO Australia’s Service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST) For warranty details please visit ww w.teco.com.au Service Email : had.service@teco.com.au...
  • Page 38 EBI-PV...
