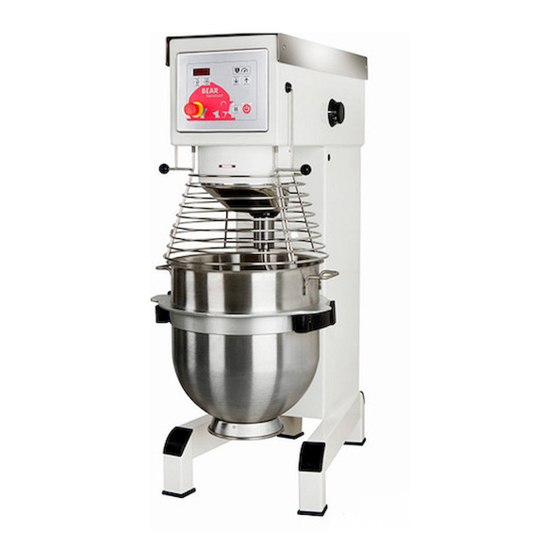

- Page 1 OPERATING INSTRUCTIONS AR80 VL-1 A/S Wodschow & Co. Kirkebjerg Søpark 6 Phone: +45 43 44 22 88 DK-2605 Brøndby info@wodschow.dk www.bearvarimixer.dk Denmark...
-
Page 2: Table Of Contents
ontents ..................................2 eneral ..................................2 afety : ..............................2 nstallatIon of new mIxer : ..............................3 onstruCtIon of the mIxer : ............................3 he maxImum CapaCIty of the mIxer : ............................3 eCommended maxImum speeds : ..............................4 peratIon of the mIxer : ............................4 tart up after stop at hIGh speed : ..................................4 verload : ...............................5... -
Page 3: C Onstruction Of The Mixer
onstruCtIon of the mIxer eCommended maxImum speeds Safety switch for lid Lift/lowering of bowl Speed adjustment Motor relay / thermal over- load relay Fuse Safety switch for safety guard Motor 3kW Safety switch for bowl lift he maxImum CapaCIty of the mIxer AR = Absorption Ratio (%AR) Capacities per mix Tool... -
Page 4: Peration Of The Mixer
peratIon of the mIxer Fig. 1 Operation panel. Open the safety guard and place the bowl in the bowl arms. OBS: The bowl arms must be in lowest position and the bowl must be pushed all the way into the bowl Timer/ arms. -
Page 5: M Aintenance And Lubrication
orreCt use of tools until the grease gun feels hard to press or until grease The meat mincer must not be used for production comes out between the shaft and the pulleys. of bread crumbs as this will cause unnecessary wear and tear on some mixer parts. -
Page 6: Ist Of Errors And Possible Solutions
Ist of errors ossIble solutIon In case of other errors, contact the supplier. A rattling sound from the closed part of the mixer. Adjustment of special v-belt The mixer starts “striking” when kneading dough Adjustment of special v-belt which normally causes no problems. The mixer changes its speed by itself. -
Page 7: Djustment Of Bowl Fixing
djustment of bowl CenterInG fig.6 Adjustment of bowl fixing and bowl centering First find the present bowl centering: mount the beater and the bowl, then raise the bowl arms up to normal working position. With your hand turn the beater, and then measure the distance between beater and bowl edge. - Page 8 rror Codes If the mixer is overloaded, the motor will stop and will be shown for ‘overheat’ in the display. • Allow the mixer to cool down. • After a short time, the display will change to normal mode. • The mixer can be started again.
-
Page 9: E Lectrical Diagrammes
leCtrICal dIaGrammes Emergency stop Fuse 1,5A Safety guard Safety Micro Contactor Main Motor Thermo Relay Motor protection -PCB Stop Operator Panel Stop -PCB -PCB 230VAC/50Hz Start Hold Thermal Relay Supply Operator Panel Operator Start Panel 3 x 400V AC + N + PE Power supply Main Motor Contactor... - Page 10 Fuse Fuse Fuse Fuse Trafo 500V/1A 500V/1A 250V/1,5A 250V/1,5A 400VAC 230VAC -PCB Emergency stop Start Operator Contactor Panel Main Motor Start 6,0-9,2A Thermo Relay Motor protection -PCB Stop Operator Panel Stop -PCB 230VAC/50Hz Hold Thermal Relay Supply safety micro (CE) Operator Panel Safety guard...
- Page 11 Indhold af Overensstemmelseserklæring, (Maskindirektivet, 2006/42/EC, Bilag II, del A) Contents of the Declaration of conformity for machinery, (Machinery Directive 2006/42/EC, Annex II., sub. A) Inhalt der Konformitätserklärung für Maschinen, (Richtlinie 2006/42/EG, Anhang II, sub A) Contenu de la Déclaration de conformité d’une machine, (Directive Machine 2006/42/CE, Annexe II.A) Inhoud van de verklaring van overeenstemming voor machines, (Richtlijn 2006/42/EC, Bijlage II, onder A) Contenido de la declaración de conformidad sobre máquinas, (Directiva 2006/42/EC, Anexo II, sub A) Fabrikant;...
