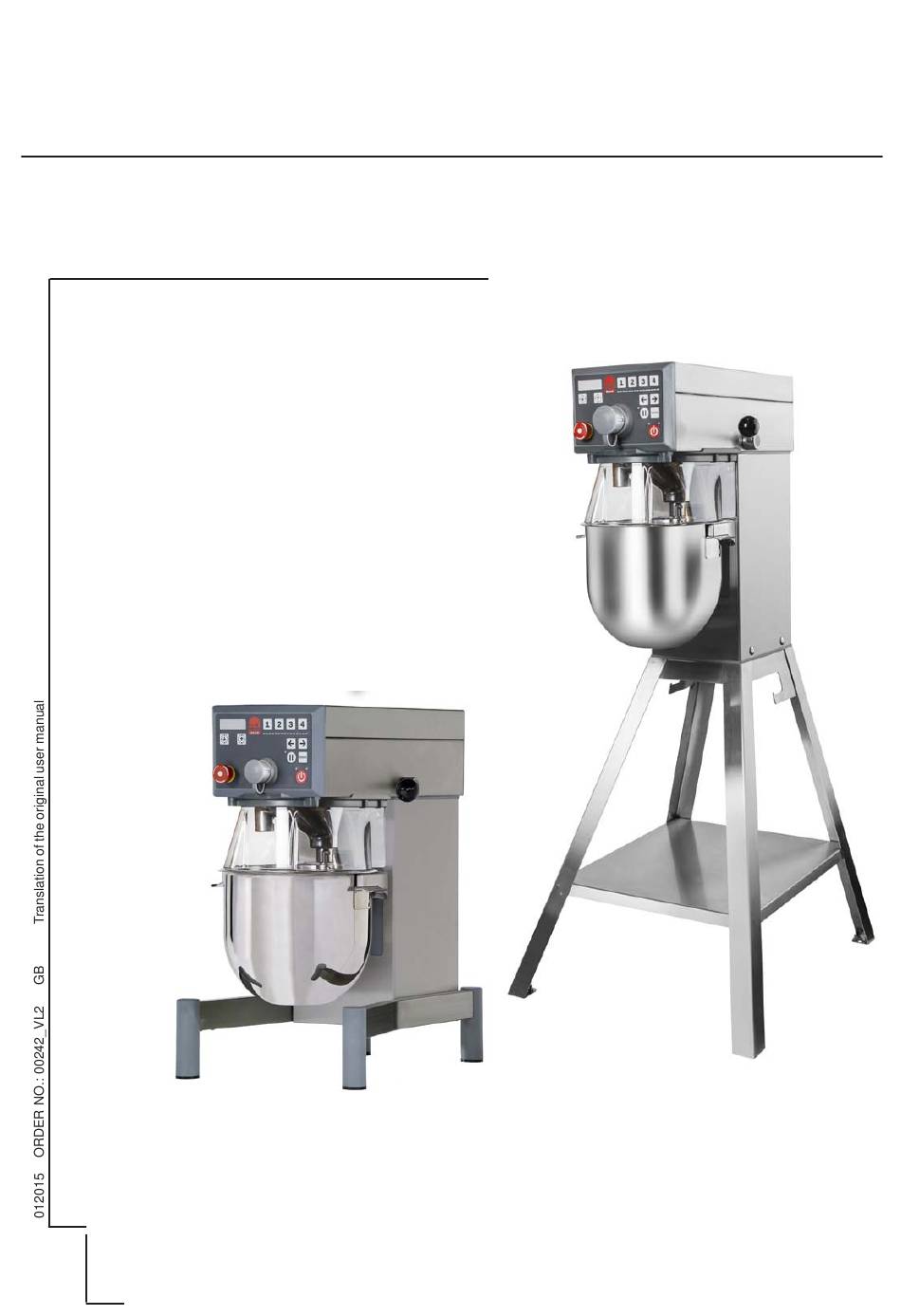

- Page 1 OPERATING INSTRUCTIONS RN10 VL-2 A/S Wodschow & Co. Kirkebjerg Søpark 6 Phone: +45 43 44 22 88 DK-2605 Brøndby www.bearvarimixer.com info@wodschow.dk Denmark...
-
Page 2: Table Of Contents
onTenTs ..................................2 eneral : ..................................2 npackinG : ..................................3 ransporT : ..............................3 nsTallaTion and fixinG : ..........................3 xamples of elecTrical connecTions : .................................. 4 ommissioninG : ............................. 4 ecommended Use of The machine : ................................4 echnical daTa : ................................ -
Page 3: T Ransport
ransporT Lifting equipment should always be used to move the machine. Allowance should be made for the fact that the machine is ‘top-heavy’. The machine must not be pulled or lifted by the bowl lift handle. When the machine is moved, it should be in a vertical position at all times. nsTallaTion and fixinG The ambient temperature around the machine must not exceed 45 If the mixer is placed on a table, it must be bolted on to the table. -
Page 4: Ommissioning
ommissioninG Bowl, tools and safety guard should be cleaned before use – see section on Cleaning, page 6. ecommended Use of The machine The machine is designed for the manufacture of products that do not trigger any reactions or release sub- stances that may be harmful to the user when in use. -
Page 5: Omponents Of The Machine
omponenTs of The machine Machine label Poly V belt Holder for scraper Bowl lift Motor Attachment drive Planetary head Bayonet socket Bowl arms The bowl must be pushed all the way into the bowl arms. Frequency converter Transformer, only at x<220V - 240V<x When lifted, the bowl should be fixed underneath the bowl... -
Page 6: Afety
afeTy orrecT Use of Tools The machine is designed for the manufacture Recommended uses of tool: of products that do not trigger any reactions or Whip Beater Hook release substances that may be harmful to the Cream Cake mix Bread dough user when in use. -
Page 7: Control Panel
conTrol panel sUrvey of varioUs operaTinG siTUaTions The following pictures show various operating situations and corresponding explanation: Emergency stop is activated - there is no light in the The mixer is connected to power and is ready for start - is flashing, the mixer has flashing of the green diode at display. -
Page 8: Perating The Mixer
peraTinG The mixer Text field (timer) Fixed speeds Speed indicator Time down Speed up REMIX-function Time up Start/Stop Speed down Emergency Pause stop Before starting the mixer: Indication of operation time: • Put the desired tool into the bowl Before starting the mixer, an operation time for the mixer can •... -
Page 9: Emix Function
emix fUncTion verloadinG The special Remix-function is a shortcut to programming of The mixer must not be overloaded. recipes. While the mixer is operated, all commands are stored, Possible overload situations: and when a recipe is finished and is pushed, it is possible • Working with excessively tough and heavy to store the entire recipe under a program number. -
Page 10: Error Codes And Possible Solutions
vl-2 conTrol error codes and possible solUTions Error codes and possible solutions: The VL2 control will in case of certain errors show an error code in the display: Too high temperature in the frequency converter. Solution: Switch off the mixer and let it cool down. Wrong voltage of power supply. -
Page 11: Vl-2 Control
esT proGrams To enter the test mode of the mixer, do as follows: Raise the bowl and attach the safety guard, push emergency stop. Hold and release the emergency stop at the same time. Now go through four test programs: Test program 1: Test of fields. -
Page 12: Ervice Instructions
ervice insTrUcTions Before a possible repair or adjustment, the power must be switched off by dismantling the connection cable from the power supply. 13A 13B The mixer is to be bolted on to the table with 4 pcs. M6 bolts. The length of the bolts must be 90 mm + the thickness of the table top. - Page 13 Take off the rear part by removing the 2 screws (1A) The lid of the mixer can be taken off when the rear part (1) has been removed. Push the lid a little backwards, and lift it free. Take off the operation panel by removing the rubber gasket (3A) and the thumb screw (4A) on the attachment drive.
- Page 14 Take out the planetary head in the following way: a) Take off the lid of the mixer (2), the operation panel (3), the attachment drive (4), the Poly V-belt (6) and the planetary head pulley (6D). b) Remove the locking ring (10A), and the planetary head can now be loosened by hitting the shaft (10B) with a plastic hammer.
- Page 15 Exchange the micro switch for bowl lift in the following way: a) Take off the cover plate (8A) on the back of the mixer. b) Take out the frequency converter (8) with fittings (8D). c) The bowl lift micro (12) with fittings (12A) can be taken out by loosening the two screws (12B) and removing the two wires.
-
Page 16: Abling Diagram
ablinG diaGram... -
Page 17: Lectrical Diagrammes
lecTrical diaGrammes... - Page 18 Indhold af CE Overensstemmelseserklæring, (Maskindirektivet, 2006/42/EC, Bilag II, del A) Contents of the EC Declaration of conformity for machinery, (Machinery Directive 2006/42/EC, Annex II., sub. A) Inhalt der EG-Konformitätserklärung für Maschinen, (Richtlinie 2006/42/EG, Anhang II, sub A) Contenu de la Déclaration CE de conformité d’une machine, (Directive Machine 2006/42/CE, Annexe II.A) Inhoud van de EG-verklaring van overeenstemming voor machines, (Richtlijn 2006/42/EC, Bijlage II, onder A) Contenido de la declaración "CE"...
- Page 19 Innehåll i EG-försäkran om maskinens överensstämmelse, (Maskindirektivet 2006/42/EG, bilaga 2, A) Contenuto della dichiarazione CE di conformità per macchine, (Direttiva 2006/42/CE, Allegato II, parte A) Sisukord EÜ masina vastavusdeklaratsioon , (Masinadirektiiv 2006/42/EÜ, lisa II, punkt A) Treść Deklaracja zgodności WE dla maszyn (Dyrektywa maszynowa 2006/42/WE, Załącznik II, pkt A) Sisältö...
- Page 20 A/S WODSCHOW & CO. Kirkebjerg Søpark 6 Telefon: 43 44 22 88 DK-2605 Brøndby info@wodschow.dk Denmark www.bearvarimixer.com...
