Disassembly Procedure Flowchart - Acer TravelMate 290 Service Manual

Disassembly Procedure Flowchart

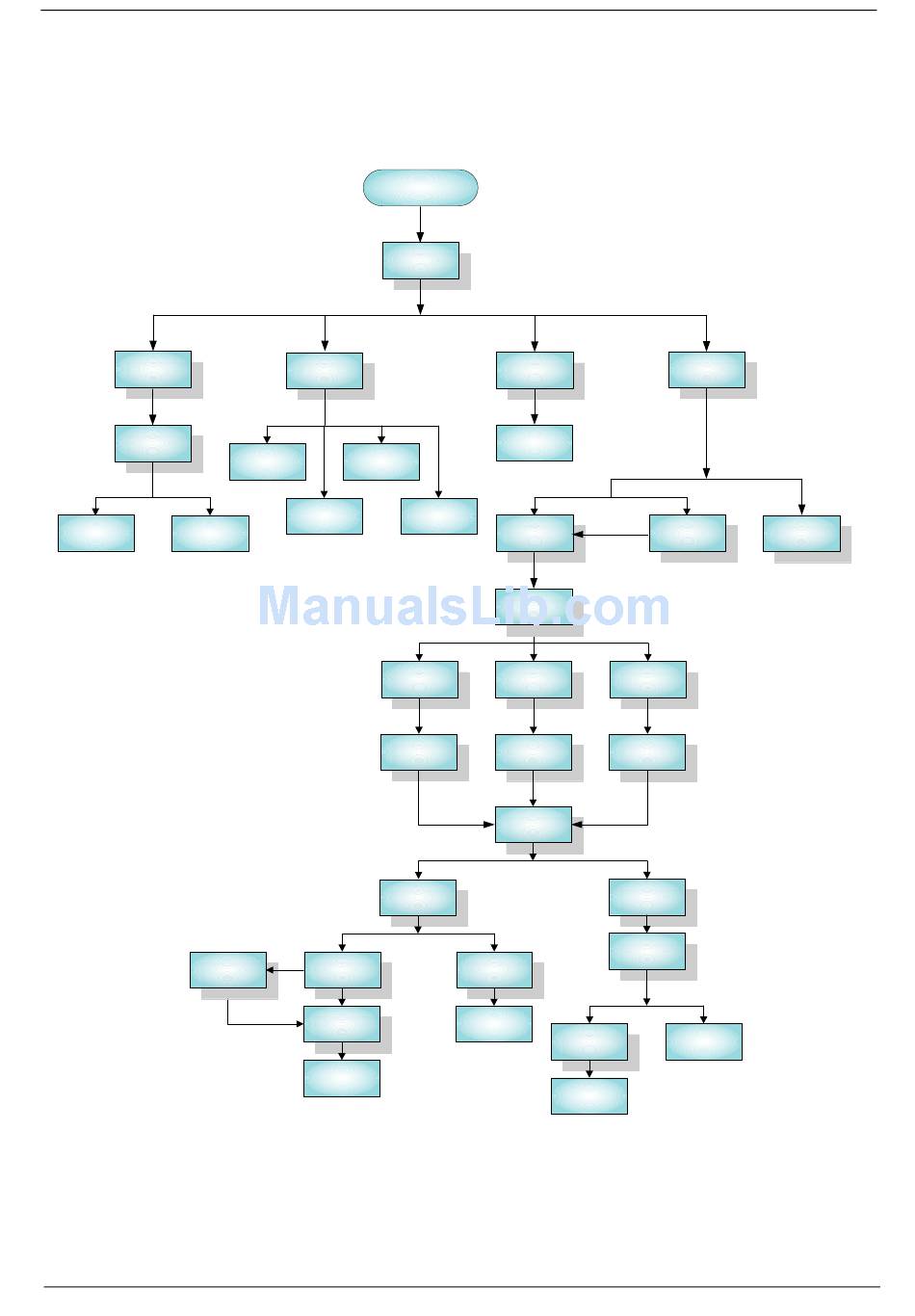

The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence
and instructs you on the components that need to be removed during servicing. For example, if you want to
remove the system board, you must first remove the keyboard, then disassemble the inside assembly frame in
that order.
M*1
HDD Module
Q*4
HDD Carrier
SUB Assy
M*2
HDD Carrier
HDD Cover
Wireless
Antenna
Chapter 3
Start
Battery
ODD Module
G*4
J*2
Optical Device
ODD
Bracket
Optical Device Optical Device
Holder Board
P*2
MDC Cover
Plate
MDC Card
P*1
K*1
M*1
Upper Case
ASSY
M*5
G*4
Hinge Saddles
M*2
Shielding
P*4
Speaker Set
M*2
DIMM Cover
Memory
M*1
Power Button
L*1
Launch Board
P*1
Mini PCI
Thermal Plate
Cover
*4
Mini PCI
Thermal
Wireless
Module
Board
CPU
Lower Case
ASSY
N*3
O*1
LED Cable
Upper Case
Support w/
FPC
Touchpad
Main Board
F*2
I*2
PCMCIA Slot
Middle Cover
P*4
M*2
M*1
Keyboard
LCD Module
K*2
M*3
P*14
O*1
Lower Case
45
