KI WireWorks Assembly Instructions

ADA inner
countertop
bracket
inner
lock clip

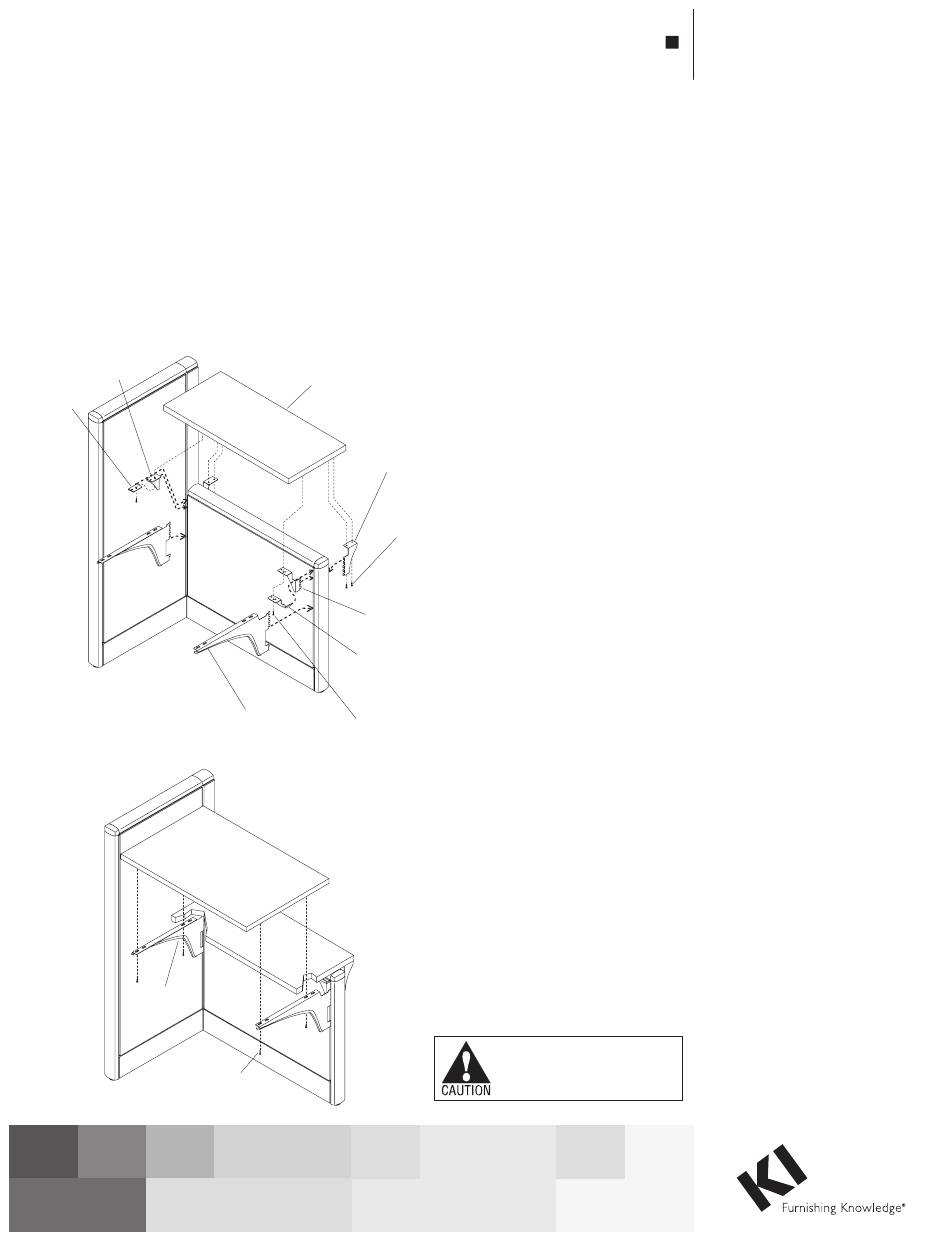

Figure 1
worksurface
cantilever
bracket
worksurface
Figure 2
WireWorks

Rectangular ADA Height

Note: The following instructions refer
to the installation of a single piece
rectangular countertop (60" and less
in length). The countertop surface is
to be used on a 30" high panel which
place the countertop no higher than 33".
rectangular
countertop
surface
ADA outer
countertop
bracket
#14 x
ADA inner
countertop
bracket
inner
lock clip
cantilever
#14 x / "
3
bracket
4
screw
screw
Assembly Instructions
ADA Height Countertop
®
March 2020
Per the 2010 ADA and ICC A117.1, KI
countertops do not extend more than 4
inches into a circulation path, and meet
the requirements for a clear floor space,
positioned for a parallel approach
adjacent to the accessible counter.
Using supplied ADA brackets, the
countertop extends no more than 4" into
the aisle. Brackets, which are mounted
on the inside and outside of station,
include steel locking clips on the inside
to prevent dislodgement. All brackets
are handed, "L" or "R" is stamped into
the flange of each for identification.
Countertop accepts task light on
receptionist side. Clearance between
countertop and 29" high worksurface
is only 4".
Note: For the installation of rectangular
/ "
3
4
screw
countertops onto 30" high panels,
it is required that no worksurface or
cantilever brackets/support panels are
in place until later in the installation
process. The worksurface configuration
shown in this instruction portrays
a cantilever bracket combination.
Your specific configuration may vary
depending on different space planning
needs.
1. Begin countertop assembly at
the aisle side, or outside of the
workstation. For countertops
installed onto a 30" panel, two
ADA outer countertop brackets are
required, one left-, and one
right-hand. Mount the appropriate
ADA outer countertop brackets
into the slots in the posts so the
mounting flanges are
the panel top caps. The right- and
left-hand brackets will be different.
Notice that the mounting flanges of
the two outside brackets face inward
as installed to the panel (Figure 1).
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
2. Mount the two ADA inner countertop
brackets into the slots in the
posts at the same height as the
outer brackets, but on the side the
worksurface will later be installed to
(inside the workstation). Orient these
also with the mounting flanges facing
inward (Figure 1).
Note: The inner lock clips are
an important part of the bracket
assembly which must be installed
later when the countertop surface is
installed.
3. Carefully place the countertop surface
face up onto the 30" panel(s). Align
the holes of the ADA outer countertop
brackets with corresponding holes at
each end of the countertop surface.
Loosely attach the brackets to the
underside of the countertop with two
#14 x / " screws at each location. Do
3
4
not tighten at this time (Figure 1).
4. Take a left- and right-hand inner
lock clip (inside the workstation)
and orient the pin ends into the
slots in the post at the top tooth of
each installed ADA inner countertop
bracket. Make sure the mounting
flanges of the two outside clips
orient inward and that the mounting
holes of the lock clip line up with
the mounting holes of the bracket.
Secure inner brackets and lock clips
to the underside of the countertop
with one #14 x
location closest to the receptionist.
Tighten all inner and outer bracket
/ " higher than screws at this time (Figure 1).
1
8
5. Mount the cantilever brackets
into the slots in the posts
(approximately 28 -29" from the
floor)(Figure 1).
Note: Depending on the type of
worksurface being installed, either
a #14 x / " screw, or a
3
4
PPH machine screw will be supplied
to attach the worksurface.
6. Carefully position the worksurface
onto the cantilever brackets and
attach using four worksurface screws
(Figure 2).
/ " screw at the hole
3
4
/ -20 x / "
1 3
4 4
