A dd en d u m In st a l l a t i o n I n s t r u ct i o n s
panel top cap
panel rigid wireway
electrical raceway cover
power-pass-through harness

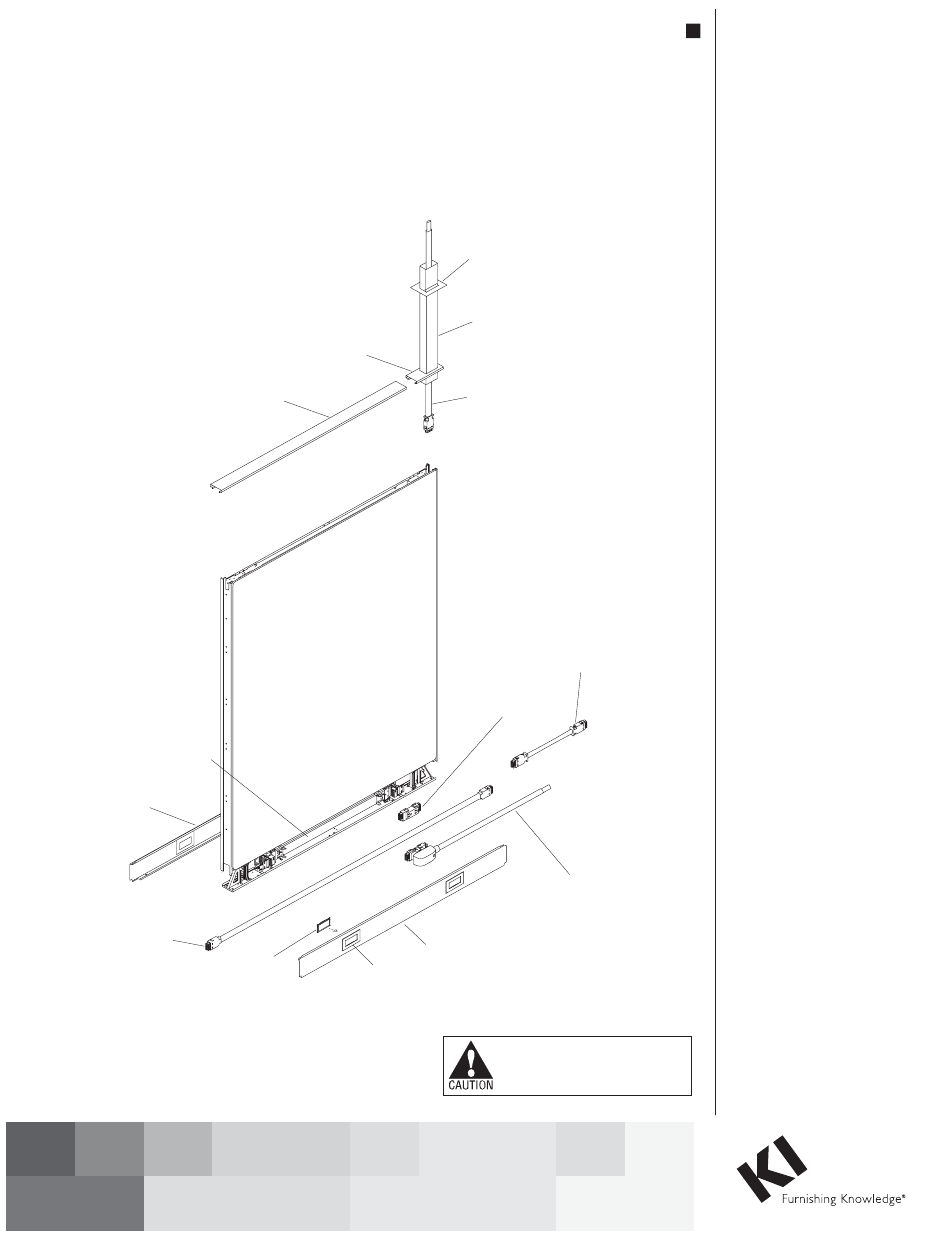

Figure 1 - Parts Identification
infeed top cap
filler plate
bezel
S ystem 300 0 Panel S y ste m
" 81 0" 10 -Wir e E le ct ri ca l Sys t e m
J anuary 20 11
ceiling trim plate
top feed power pole
top feed wire harness
panel-to-panel
jumper
duplex receptacle
universal
base power infeed
electrical raceway cover
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts may
result in assembly failure and personal injury.
Suggested Electrical Installation
Sequence - Read Before
Beginning Installation
1. Familiarize yourself with all
electrical components before
beginning installation.
Warning: Assembly of all
mechanical frame components
must be completed before making
any electrical connections. All
electrically connected furnishings
must also be mechanically
connected.
2. Before installing electrical
components, consult inspector
or authorities for local codes.
Connection to building power
supply may be made ONLY
after all panel wiring has been
completed. Building connections
must be made only by a licensed
electrician following local codes at
the building site.
3. Each circuit must be individually
protected with a 120-volt, 20-amp
circuit breaker device which will
provide disconnect and overload
protection.
Installation Instructions
1. Familiarize yourself with the
electrical parts and the locations of
top feeds or base feeds.
2. Install the top feed harness in the
appropriate panel as the panels are
being installed.
3. If base feed harnesses are to be
located between a panel and a
building wall, install the base
feed harness as the panels are
being installed. Leave access for
the electrician to make the final
hardwire connection of the base
feed harness to the building.
4. Install all of the panel-to-panel
jumpers and the
power-pass-through harness as
shown on the space-planning
layout. Be sure all connections
are tight.
5. Install all duplex receptacles in the
locations shown in the
space-planning layout.
6. Check the electrical continuity at
the furthest point from the power
infeed location.
