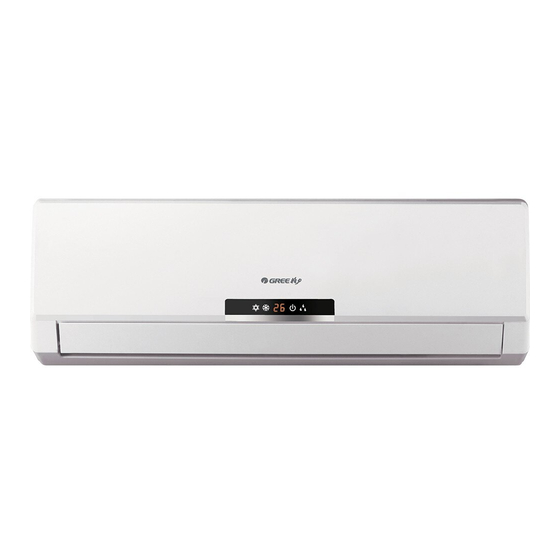

Gree GWH09MB-K3DNA2K Service Manual

Hide thumbs Also See for GWH09MB-K3DNA2K:
Table of Contents

Advertisement

Quick Links

Change for Life
Service Manual
Model:
GWH09MB-K3DNA2K
GWH09MB-K3DNA3K
GWH09MB-K3DNA4K
GWH09MB-K3DNA5K
GWH09MB-K3DNB3K
GWH09MB-K3DNC9K
GWH09MB-K3DNE1K
GWH09MB-K3DNC8K
GWH09MB-K3DNE3K
GWH09MB-K3DNC1K
GWH12MB-K3DNA2K
GWH12MB-K3DNA3K
GWH12MB-K3DNA4K
GREE ELECTRIC APPLIANCES,INC.OF ZHUHAI
GWH12MB-K3DNA5K
GWH12MB-K3DNA8K
GWH12MB-K3DNB3K
GWH12MB-K3DNC9K
GWH12MB-K3DND3K
GWH12MB-K3DNE1K
GWH12MB-K3DNC8K
GWH12MB-K3DNE3K
GWH12MB-K3DNC1K
(Refrigerant R410A)
