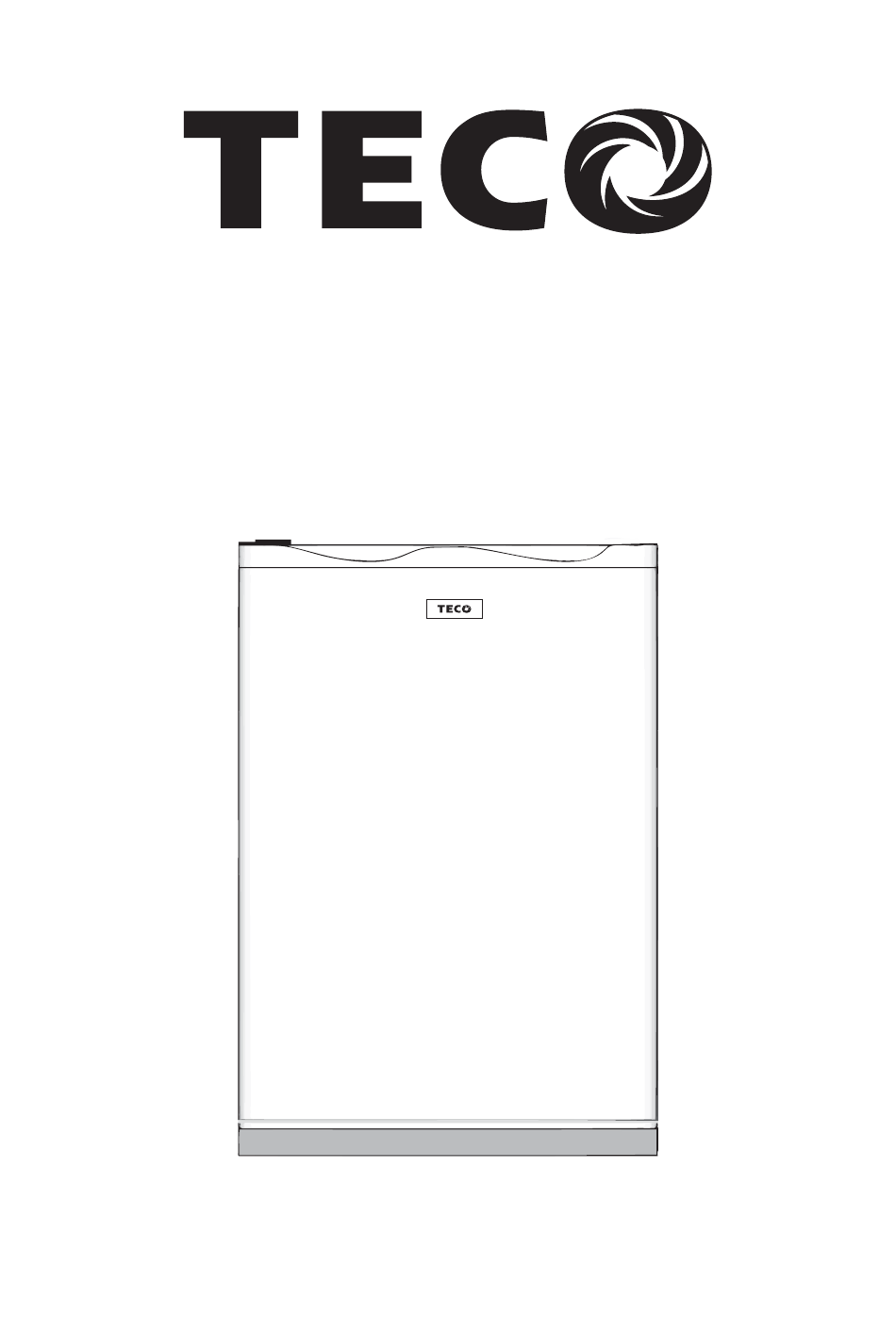

- Page 1 92L VERTICAL FREEZER USER’S MANUAL Model : TVF92WMA To ensure proper use of the appliance and your safety, please read the following user manual completely before operating this appliance.
- Page 2 The appliance has not been designed or manufactured for professional use. Teco declines all responsibility for damage deriving from improper use of the appliance. The freezer has undergone the necessary tests on the tightness of the refrigeration circuit and complies with the safety regulations for electrical appliances.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Information ..........1 - 2 Name of Parts and Usage........Packing List ............Transporting the Appliance ........Installation Instructions.......... Operating Instructions .......... Defrosting ............. Maintenance ............Disconnection of the Appliance ......Reversing the Door ........... 10 - 11 Troubleshooting .......... -
Page 4: Safety Information
• Do not place objects on top of the appliance which are magnetic, heavy or fi lled with water. • If the supply cord is damaged, it must be replaced by authorised TECO service personal, service agent or similarly qualifi ed persons in order to avoid a hazard. - Page 5 • Do not store fl ammable, explosive, volatile and highly corrosive materials in the freezer. Containers with fl ammable gases or liquids can leak at low temperature. There is a risk of explosion or fi re. • Do not splash water on the appliance. It may cause malfunction or electric shock.
-
Page 6: Name Of Parts And Usage
NAME OF PARTS AND USAGE 1. Storage Basket The freezer you purchased is subject to continuous improvement, which may not be completely consistent with the manual, however the functions and operating methods will not change. If you use the freezer for the fi rst time, remove any adhesive tapes. Do not pull or push the drawers forcefully during use in case of damage. -
Page 7: Packing List
PACKING LIST Check the packing list that all items have been included. Part No. Model TVF92WMA (see pg.3) Storage Basket 3 pieces User manual 1 copy Warranty 1 copy Information Note: Product specifi cations are subject to change without prior notice. -
Page 8: Transporting The Appliance
TRANSPORTING THE APPLIANCE 1.The appliance must be transported only in a vertical position. The packing must be intact during the transportation. 2. When unpacking and re-packing the appliance, please memorise the position of each accessory of the appliance when unpacking it. When re-packing the appliance for transportation, ensure all accessories are secured before transportation. -
Page 9: Operating Instructions
WARNING WARNING... -
Page 10: Defrosting
DEFROSTING Heavy frost will effect the refrigerating process or internal temperature of the appliance and increase the power consumption. Thus, defrosting is required if the frost is >5mm thick. Defrosting is a manual process. Please follow these steps: 1. Switch off and disconnect the appliance. 2. -
Page 11: Maintenance
MAINTENANCE The appliance should be maintained and cleaned frequently. For your safety, pull the plug out of the socket before cleaning. 1.Interior and exterior maintenance Clean the interior of the appliance with clean water and wipe it dry with a piece of dry cloth. Cleansers such as soap powder, abrasive cleaning powder, alkali cleansers, chemical cloth, thinners, alcohol, acid petroleum products and hot water should not be used to clean the freezer as they... -
Page 12: Disconnection Of The Appliance
DISCONNECTION OF THE APPLIANCE If a power failure occurs, even in summer, the freezer could store food normally for some time. 1. Power failure During a power failure, do not put additional food in the appliance and reduce opening the door frequently. Place several ice cubes into each freezer drawer if power failure is anticipated beforehand, and place it in the top of the freezer. -
Page 13: Reversing The Door
REVERSING THE DOOR Follow these steps to reverse the door from the supplied position. Step 1. Remove the cover from the door hinge and Step 2. Lift the door from remove the two screws holding the hinge bracket. the hinge. Place the door in a safe location to avoid scratches or damage. - Page 14 Step 6. The hinge pin must be removed Step 7. Fasten the and relocated onto the opposite side adjustable leg and frame of the bracket. Remove the nut and screw into the left side of washers, relocate the pin, then fasten. the freezer.
-
Page 15: Troubleshooting
TROUBLESHOOTING The following cases are not malfunctions: 1. Moisture may form as condensation on the outside of the appliance during humid conditions. To remove excess moisture, wipe clean. 2. The fl ow of refrigerant through the pipeline coil could cause gurgling, similar to water boiling. -
Page 16: Repairs, Service & Warranty
IF SERVICE IS REQUIRED: If you have a problem, and the problem persists after you have made the checks mentioned above, contact: TECO Australia’s Service on 1300 660 037 For warranty details please visit www.teco.com.au Complete and retain the following information:... -
Page 17: Specifications
SPECIFICATIONS Model TVF92WMA Climate class Classifi cation of Class 1 installation and use Indoor use only Rated Total Gross Volume (L) Voltage (V) Frequency (Hz) Noise Level (dB) Refrigerant type R600A Height Dimensions Width (mm) Depth IPX0 IP rating Net Weight (Kg) - Page 18 LBE-PV...
