Removing the LCD Bezel

1. See "Removing the Battery Pack" on page 62.
2. See "Removing the Lower Cover" on page 64.
3. See "Removing the WLAN Board Modules" on page 68.
4. See "Removing the Middle Cover and the Power Board" on page 78.
5. See "Removing the LCD Module" on page 81.
6. Remove the four upper bezel screw caps and the four lower bezel caps.

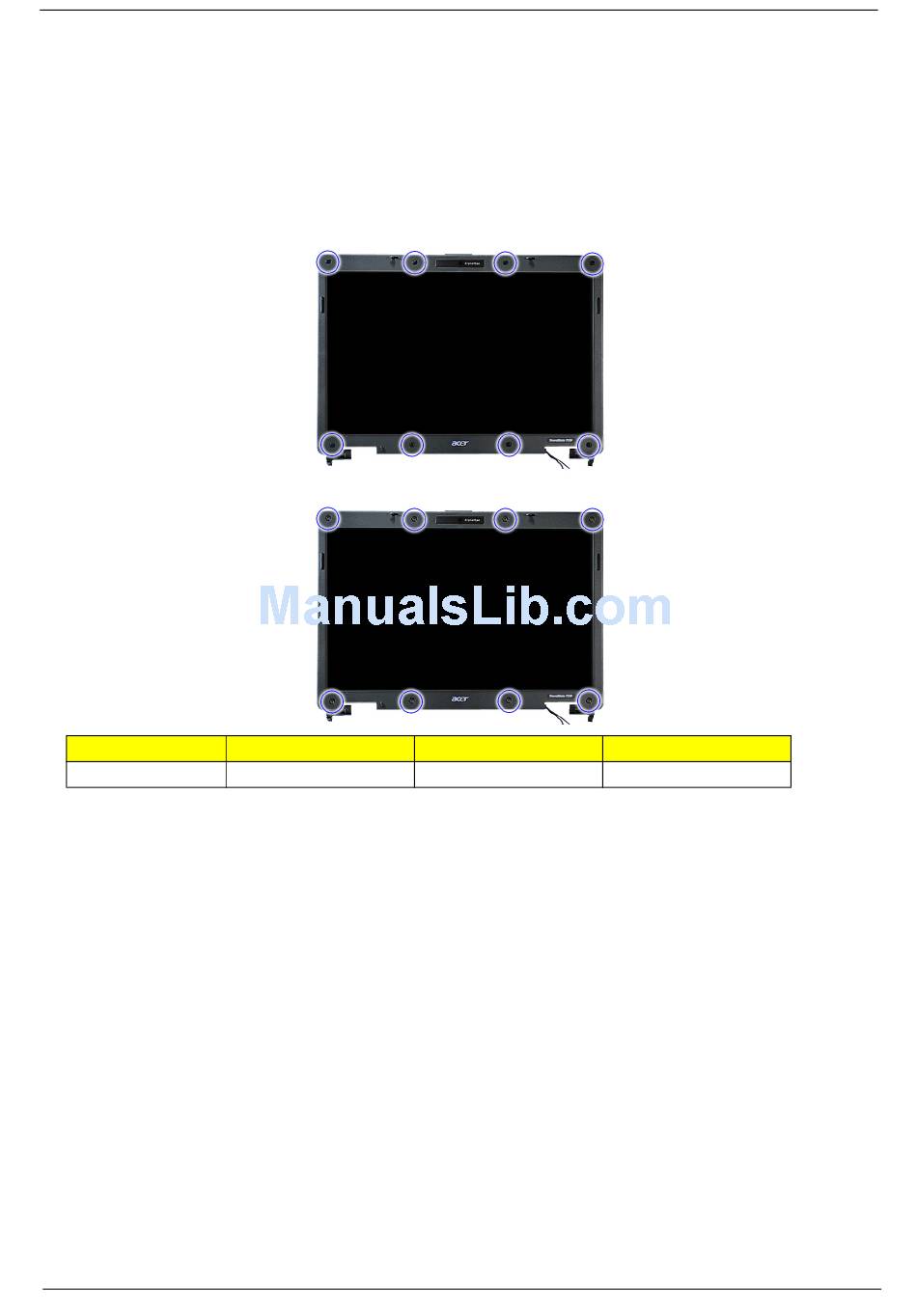

7. Remove the eight screws (A) on the LCD module in the order as shown.
Step
1~8
Chapter 3
Size (Quantity)
M2.5 x L6 (8)
Color
Black
Torque
3.0 kgf-cm
