Guangdong Transtek Medical Electronics Co., Ltd.
Zone A, No.105, Dongli Road, Torch Development
District, 528437 Zhongshan, Guangdong, China
Medical Device Safety Service GmbH
EC REP
Schiffgraben 41, 30175 Hannover, Germany
Kinetik TMB-2080 UK IB 20210903
User Manual

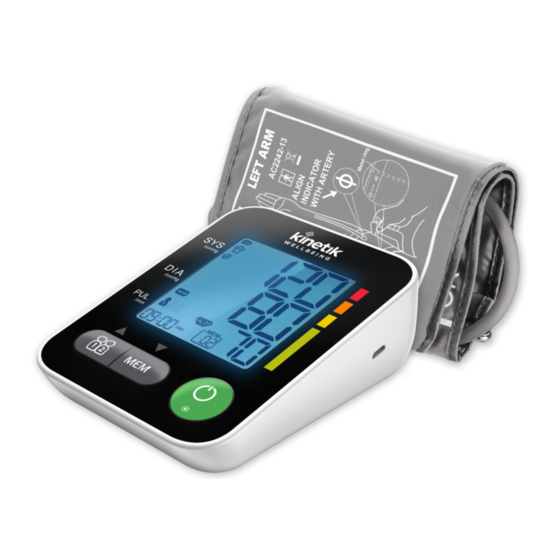

Advanced Blood Pressure Monitor
Thank you for selecting the Kinetik Wellbeing Advanced Blood Pressure
Monitor.
Please read the user manual carefully and thoroughly so as to ensure the
safe usage of this product. Keep this manual for future reference in case
any issues arise.
TMB-2080
Advertisement
Table of Contents
Related Manuals for Kinetik Wellbeing TMB-2080
Summary of Contents for Kinetik Wellbeing TMB-2080
- Page 1 User Manual Advanced Blood Pressure Monitor TMB-2080 Thank you for selecting the Kinetik Wellbeing Advanced Blood Pressure Guangdong Transtek Medical Electronics Co., Ltd. Monitor. Zone A, No.105, Dongli Road, Torch Development District, 528437 Zhongshan, Guangdong, China Please read the user manual carefully and thoroughly so as to ensure the safe usage of this product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SUPPORT..........................2 INTRODUCTION........................3 General Description Indications for Use Contraindications Measurement Principle Safety Information Display and Symbols Name of Each Part Contents/Product Includes BEFORE YOU START......................10 The Choice of Power Supply Installing and Replacing the Batteries Setting the Date and Time Setting a user ID MEASUREMENT........................14 Applying the cuff... -
Page 3: Support
Indications for Use You can reach us by… The Kinetik Wellbeing Blood Pressure Monitor is a digital monitor intended for Phone: use in measuring the blood pressure and pulse rate of those with +44 1483 937969 an arm circumference ranging from 22 cm to 42 cm. -
Page 4: Introduction
INTRODUCTION INTRODUCTION Safety Information CAUTION The symbols below might be in the user manual, labeling or other * This device is intended for indoor, home use. * This device is not intended for public use. component. They are the requirement of standard and using. * This device is portable, but it is not intended for use during patient transport. - Page 5 INTRODUCTION INTRODUCTION CAUTION Display and Symbols * Warning: This device is not AP/APG equipment. Do not use the device where flammable anesthetic are present, or in environments mixture with air of with oxygen or nitrous oxide. * The device contains sensitive electronic components.To avoid measurement errors, avoid taking blood pressure measurements near a strong electromagnetic field radiated interference signal or electrical fast transient/burst signal.
-
Page 6: Name Of Each Part
Contents/Product Includes Excessive body motion detector symbol Appears when talking, moving, or shaking of the arm with the cuff • Blood Pressure Monitor (TMB-2080) on is detected during a measurement. NOTE: The measured blood pressure reading may not be accurate •... -
Page 7: Before You Start
BEFORE YOU START BEFORE YOU START Setting the Date and Time The Choice of Power Supply 1. Battery powered mode: It is important to set the date and time before using your blood pressure 6V DC 4× AAA batteries monitor for the first time, so that a correct time stamp can be assigned to AC adapter powered mode: 5V each record that is stored in the memory. -
Page 8: Setting A User Id
BEFORE YOU START BEFORE YOU START Setting a user ID There are 3 user ID available. The user , each with 90 memory spaces, are designed for 2 different people to save the measured values separately. The user , no memory space, is reserved for guest. 1. -
Page 9: Measurement
MEASUREMENT MEASUREMENT Applying the cuff Start a measurement Remove all jewelry, such as watches You can use your monitor without pairing to a smart device. To pair your and bracelets from your left arm. monitor with a smart device refer to the foregoing chapters. Note: If your doctor has diagnosed you with poor circulation in your left arm, use your right arm. -
Page 10: Data Management
MEASUREMENT DATA MANAGEMENT Recall the Records 4. Press the button to turn off the monitor, or it will shut off after 1. When the monitor is off, press the about 1 minute. button, the LCD will display the total groups of the memory records, with the user ID blinking. Note Both user can store maximum 90 groups of record. -
Page 11: Delete The Records
DATA MANAGEMENT DATA MANAGEMENT Delete the Records B: Delete all records (Example shown below for User 1) 1. Enter the memory recall mode as described in the previous section Delete the records by following the steps below. "Recall the records". A: Delete one record (Example shown below for User 1) 2. -
Page 12: Information For User
DATA MANAGEMENT INFORMATION FOR USER 4. Once deleted, your readings cannot be restored. The LCD will display Tips for Measurement ”--” like the following picture. Measurements may be inaccurate if taken in the following circumstances. Press the button to turn off the monitor, otherwise it will power off automatically after about 1 minute. -
Page 13: Maintenance
INFORMATION FOR USER ABOUT BLOOD PRESSURE What are systolic pressure and diastolic pressure? Maintenance When ventricles contract and pump blood out of the heart, the blood pressure reaches its maximum value in the cycle, which is called systolic In order to get the best performance, please follow the instructions pressure. -
Page 14: Irregular Heartbeat Detector
ABOUT BLOOD PRESSURE ABOUT BLOOD PRESSURE Why does my blood pressure Blood Level Optimal Normal High-normal Mild Moderate Severe fluctuate throughout the day? Pressure (mmHg) <120 120-129 130-139 140-159 160-179 ≥180 1. Individual blood pressure varies multiple times everyday. It is also affected by the <80 80-84 85-89... -
Page 15: Trouble Shooting
TROUBLE SHOOTING SPECIFICATIONS If any abnormality arises during use, please check the following points: Approx.100 mm × 129 mm × 45 mm External dimensions PROBLEM SYMPTOM CHECK THIS REMEDY Digital LCD V.A.60 mm × 64 mm Display mode Batteries are depleted. Replace with new batteries. -
Page 16: Authorised Component
30 cm (12 inches) to any part AC adaptor of the equipment TMB-2080 including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result. Technical description：... -
Page 17: Emc Guidance
EMC GUIDANCE EMC GUIDANCE Table 2 Table 3 Guidance and manufacturer’s declaration – electromagnetic Immunity Guidance and manufacturer’s declaration - electromagnetic Immunity IMMUNITY Radiated RF Compliance Test Band Service Modulation Modulation Distance IEC 60601-1-2 Immunity Test Compliance level TEST level IEC61000-4-3 Frequency (MHz)
