Aritech ATS1741 Quick Start Manual

English
M
OUNTING THE UNIT

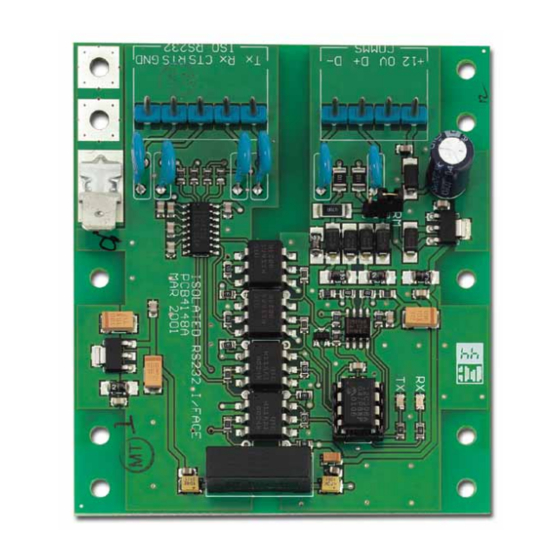

The board has a standard Aritech 'B' size footprint, mountable in existing
Aritech metalwork.
C J2
ONNECTIONS
+12 V 12 VDC supply input. 100 mA maximum.
0 V Negative supply.
D+
Positive data connection of the RS485 databus
D-
Negative data connection of the RS485 databus
Units can be up to 1.5 km from the 4-door DGP or control
panel, depending on the type of cable used. Recommended
cable is Belden 8723; 2-pair twisted, shielded, data cable.
C J1
ONNECTIONS
TX RS232 data transmit.
RX RS232 data receive.
CTS Clear to send.
RTS Request to send.
GND Isolated RS232 ground.
LED
S
TX LED LED flashes to indicate data is being received in as RS232 and
transmitted out as RS485.
RX LED LED flashes to indicate data is being received in as RS485 and
transmitted out as RS232.
E
XTENDED DISTANCES BETWEEN
ATS1741 (RS485 to RS232 interface) to PC
ATS1741 (RS232) PC (RS232)
Pin Names Pin Names
TX RX
RX TX
*CTS *Not connected
*RTS *Not connected
GND GND
*Link RTS-CTS *Link RTS-CTS
105066 г. Москва, ул. Спартаковская, д.11, корп. 1,
тел. (095) 787-33-42, (095) 937-90-57; факс (095) 937-90-55
.
.
T ATS1801
ITAN AND
DB25 DB9
3 2
2 3
6,8,20 1,4,6
- -
7 5
4-5 7-8
RS232 to RS485 Interface
ATS1741 (RS485 to RS232 interface) - ATS1741 (RS485 to RS232 interface)
ATS1741 (RS485) ATS1741 (RS485)
+12 V +12 V
0 V 0V
D+ D+
D- D-
Do not power the ATS1741 from different power supplies unless
!
you disconnect the +12 V wiring between those units. Ensure the
power supplies are isolated, especially the GND.
ATS1741 (RS485 to RS232 interface)- ATS1801 (Computer/Printer
ATS1741 (RS232) ATS1801 Port Computer
TX RxD
RX TxD
CTS* *Not connected
RTS* Not connected
GND GND
*Link RTS-CTS *+12 V on CTS
D S V M
ATA BUS YSTEM IA
The shield of each length of data cable is only connected to earth at one end.
The connections between ATS1741 and the modem are as follows:
ATS 1741 Modem
TX RX
RX TX
RTS CTS
CTS RTS
GND GND
L
INKS
T Refer to the control panel installation guide.
ERM
E
ARTH
1
M ATS1741
ODEL
Remarks
Connect to a 12 VDC power supply
interface)
ODEM
DB25 DB9
Pin2 Pin3
Pin3 Pin2
Pin5 Pin8
Pin4 Pin7
Pin7 Pin5
