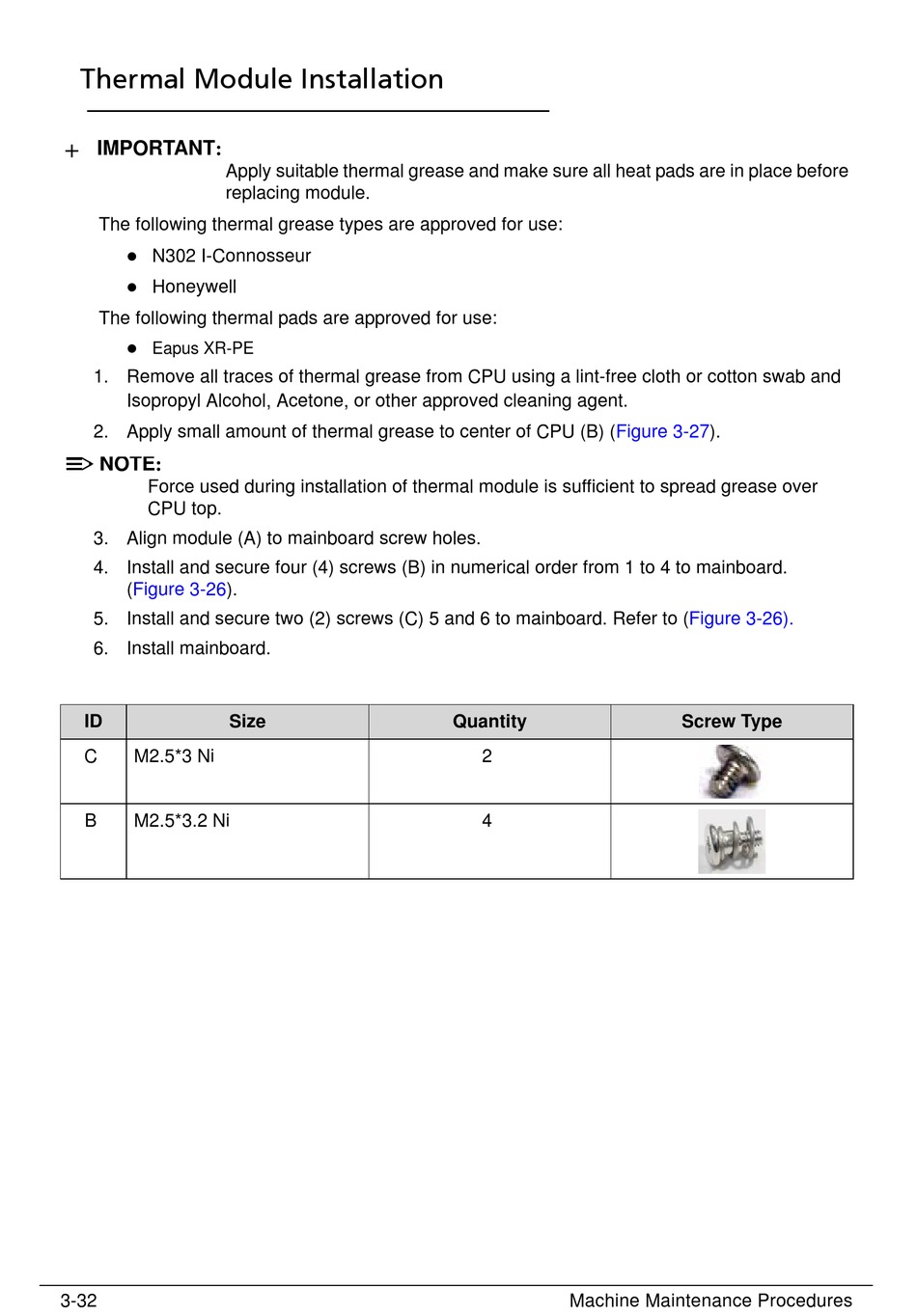

Thermal Module Installation

+
IMPORTANT:
Apply suitable thermal grease and make sure all heat pads are in place before
replacing module.
The following thermal grease types are approved for use:
 N302 I-Connosseur
 Honeywell
The following thermal pads are approved for use:

Eapus XR-PE
1. Remove all traces of thermal grease from CPU using a lint-free cloth or cotton swab and
Isopropyl Alcohol, Acetone, or other approved cleaning agent.
2. Apply small amount of thermal grease to center of CPU (B)
NOTE: NOTE:
Force used during installation of thermal module is sufficient to spread grease over
CPU top.
3. Align module (A) to mainboard screw holes.
4. Install and secure four (4) screws (B) in numerical order from 1 to 4 to mainboard.
(Figure 3-26).
5. Install and secure two (2) screws (C) 5 and 6 to mainboard. Refer to
6. Install mainboard.
ID Size
C M2.5*3 Ni
B M2.5*3.2 Ni
3-32
(Figure
Quantity
2
4
Machine Maintenance Procedures
3-27).
(Figure 3-26).
Screw Type
