Infrared Thermometer
TM0300
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM0300 and is the answer not in the manual?

Questions and answers

Related Manuals for Perfect Prime TM0300

Summary of Contents for Perfect Prime TM0300

  • Page 1 Infrared Thermometer TM0300 Instruction Manual...

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY REGULATIONS ............2 2. FUNCTIONS/APPLICATIONS ..........3 3. TECHNICAL SPECIFICATIONS ..........4-5 4. PRODUCT DESCRIPTION ............6 4.1 DISPLAY ................. 7 4.2 KEYBOARD ..............8 4.3 INSTALL/REPLACE BATTERIES ..........8 4.4 SWITCH ON/OFF .............. 8 5. Surface Temperature Mode ..........

  • Page 3: Safety Regulations

    1. SAFETY REGULATIONS Attention! This user manual is an essential part of this product. The user manual should be read carefully before you use the product for the rst time. If the product is given to someone for temporary use, be sure to enclose user manual to it.

  • Page 4: Functions/Applications

    2. FUNCTIONS/APPLICATIONS IR-thermometer TM0300 is designed for non-contact measurement of surface temperature of various objects. Ergonomic, shockproof housing, small size and weight, intuitive interface, laser spot marking, continuous measurement mode provide simple and convenient measurement of temperature of dangerous, moving, hard-to-reach distant objects at less than 1 second at just one touch of the trigger.

  • Page 5: Technical Specifications

    3. TECHNICAL SPECIFICATIONS Display 30*30mm LCD with backlight Surface temperature range -50 °C to 600 °C -58 °F to 1112 °F Surface temperature accuracy ±3 °C (±6 °F) -50 °C to -20 °C (-58 °F to -4 °F) -20 °C…0 °C ±2 °C (±4 °F) (-4 °F…32 °F) ±1,5 °C (±3 °F)
  • Page 6 3. TECHNICAL SPECIFICATIONS Optical resolution 12:1 Response time 0,1 sec Spectral sensitivity 8 to 14 µm Emissivity 0.1 to 1.00 adjustable Storage temperature -10° to 60° (-14 °F to 140 °F) Relative humidity for <95% operation and storage Power supply 1,5V LR6 alkaline Battery life...

  • Page 7: Product Description

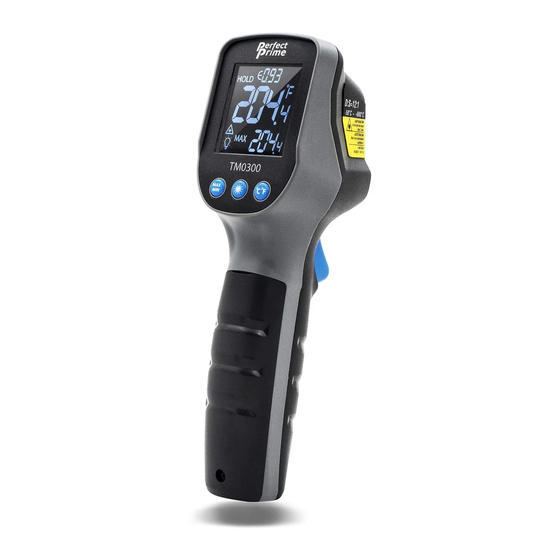

    4. PRODUCT DESCRIPTION Display Keyboard Trigger Laser spot marking exit window Infrared sensor Battery cover...

  • Page 8: Display

    4. PRODUCT DESCRIPTION Display Indication of continuous measurement Emissivity value Indication of battery charge level Measuring units (° or °F) Maximal/minimal measurement value Indication of maximal/minimal value Indication of activated laser spot marking Measurement result Surface Temperature Mode / Body Temperature Mode...

  • Page 9: Keyboard

    4. PRODUCT DESCRIPTION Keyboard Check max/min values/adjust emissivity degree. • Switch on/o display backlight and laser spot • marking. Select measuring unit (° or °F)/adjust emissivity • degree. INSTALL/REPLACE BATTERIES Remove the battery cover. Install the battery observing correct polarity. Put the battery cover back and push it until a click is heard.

  • Page 10: Surface Temperature Mode

    5. SURFACE TEMPERATURE MODE It is used to measure the surface temperature of the targeted object. 1) Measure the object temperature - Press [Measure] key to measure the surface temperature of the targeted object. The HOLD icon OFF, the temperature updated every second. - Release [Measure] key to stop the measurement.

  • Page 11: Body Temperature Mode (Human Head Icon On, Laser Icon Off)

    6. BODY TEMPERATURE MODE HUMAN HEAD ICON ON, LASER ICON OFF 1) To change to Body temperature Mode - Press and hold the [Laser] key for 2 sec to change to Body temperature mode. - The Human head icon appeared. The laser icon OFF. 2) Measure the object temperature - Press [Measure] key to measure the body temperature.

  • Page 12: Emissivity

    7. EMISSIVITY All objects emit thermal energy. Emitted energy quantity depends on the surface temperature and object emissivity. The product can measure emission on the surface of object and calculate object temperature. Objects with di erent surfaces but with the same temperature can emit di erent quantity of thermal energy.

  • Page 13: Switch On The Device

    8. SWITCH ON THE DEVICE / 9. OPTICAL RESOLUTION / 10. CARE AND MAINTENANCE Switch on the device. Press and hold the trigger, then long press button . Symbol will start ashing on the display. Release the trigger. Value 0.95 is set by default.

  • Page 14: Utilization

    10. UTILIZATION Expired tools, accessories and package should be passed for waste recycle. Please send the product to the following address for proper recycle: Do not throw the product in municipal waste! According to European directive 2002/96/ C expired measuring tools and their components must be collected separately and submitted to environmentally friendly recycle of wastes.

  • Page 15: Warranty

    11. WARRANTY products go through post-production control and are PerfectPrime governed by the following warranty terms. The buyer’s right to claim about defects and general provisions of the current legislation do not expire. agrees to eliminate all defects in the product, discovered •...
  • Page 16 CUSTOMER SERVICE INQUIRIES Your emails are important to us so we strive to reply all hours. In exceptional cases, inquiries and emails within we may require more time to respond. Thank you for your understanding. For more information about our products and services, please send us an email: cs@perfectprime.com For B2B or project-based application, please send an email:...
  • Page 17 Tyche Smart Limited Retailer cs@perfectprime.com Email 2nd Floor, 107 Charterhouse Street, EC1M Address 6HW, London, England UNITED KINGDOM +44 203 7695377 Telephone...
