Technical Specifications
Power supply
2x 1.5V AA batteries
when Wake Up off (one activation
Power consumption
per month):
standby: 3.9µW
typ: 5.3µW
max: 92mW
when Wake Up on (default settings,
one hour active per day):
standby:118µW
typ: 145µW
max: 92mW
Power loss
max. 92mW
Battery lifetime
up to 5 years
Loxone Air:
Interfaces
868MHz (SRD Band Europe), 4
channels available
max. Power 15.1mW e.r.p. 915MHz (ISM
Band Region 2), 10 channels available
max. Power 13.2mW
Ambient temperature
-18 ... 55°C / 0 ... 131°F
Humidity
max. 95% r. H. (non condensing)
Touch points
1 Touch point, tactile switch
Feedback
visual
Safety rating
IP64
Dimensions
84x84x30.5mm / 3.31x3.31x1.2" (LxWxH)
Maintenance & Cleaning
This device is free of maintenance
and may only be cleaned with a dry
cloth.
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com

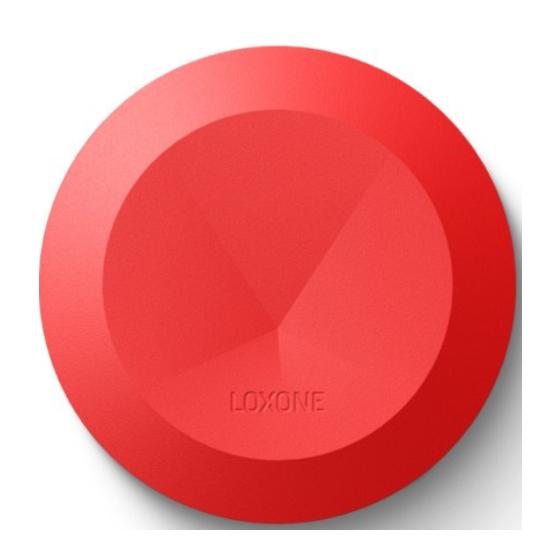

Button Air
Part No: 100465
Advertisement
Related Manuals for LOXONE Button Air
Summary of Contents for LOXONE Button Air
- Page 1 5 years Loxone Air: Interfaces 868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Button Air Band Region 2), 10 channels available max. Power 13.2mW Ambient temperature -18 … 55°C / 0 … 131°F Humidity max.
- Page 2 • Magnetic wall mount • Anti-slip base Installation learn The Button Air is powered by two AA batteries, and is button activated by removing the pull tab. Once the Button Air is activated, simply configure it in Loxone Config in the usual way.
