Technical Specifications
Power Supply
18...28VDC SELV
Power Consumption
typ. 65mW, max. 2.6W (with
alarm output)
Total Power Loss
max. 2.6W
Alarm Output
Acoustic and Optical
Tamper Detection
Yes
Safety Rating
IP44
Ambient Temperature
-40...55°C / -40...131°F
Humidity
95% r. H. (non condensing)
Radio Frequency
868MHz (SRD Band Europe),
915MHz (ISM Band Region 2)
max. Power 3.16mW
Dimensions
250x150x65mm /
9.84x5.91x2.56" (LxWxH)
Maintenance & Cleaning
This device is free of main-
tenance and may only be
cleaned with a dry cloth.
No Gimmicks.
Real Smart Homes.
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com

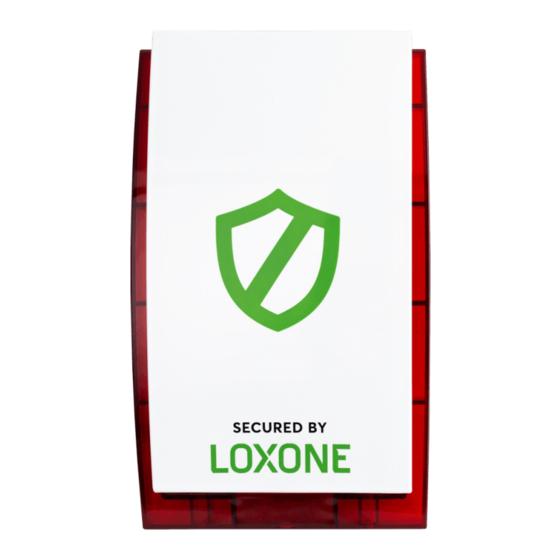

Alarm
Siren Air
Part No.: 100312
Advertisement
Related Manuals for LOXONE Alarm Siren Air
Summary of Contents for LOXONE Alarm Siren Air
- Page 1 868MHz (SRD Band Europe), 915MHz (ISM Band Region 2) max. Power 3.16mW Dimensions 250x150x65mm / 9.84x5.91x2.56” (LxWxH) Loxone Electronics GmbH Smart Home 1 Maintenance & Cleaning This device is free of main- 4154 Kollerschlag tenance and may only be Austria cleaned with a dry cloth.
- Page 2 About the product 1st) The Alarm Siren Air with strobe light serves as an external clasp into warning device, for example, as part of the burglar alarm. housing and When triggered, the device gives out an acoustic and optical close cover alarm.
