Technical Specifications
Power supply
1x 3V CR2032
Power consumption
typ. 3.3µW, max. 51mW
Power loss
max. 51mW
Battery lifetime
up to 2 years
Interfaces
Loxone Air:
868MHz (SRD Band Europe),
4 channels available
max. Power 15.1mW e.r.p.
915MHz (ISM Band Region 2),
10 channels available
max. Power 13.2mW
Ambient temperature
-20 ... 60°C / 0 ... 140°F
Humidity
max. 95% r. H. (non condensing)
Touch points
1 Touch point, tactile switch
Feedback
visual
Safety rating
IP64
Dimensions
50x26x13.5mm /
1.97x1.02x0.53" (LxWxH)
Maintenance & Cleaning
This device is free of maintenance
and may only be cleaned with a dry
cloth.
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com

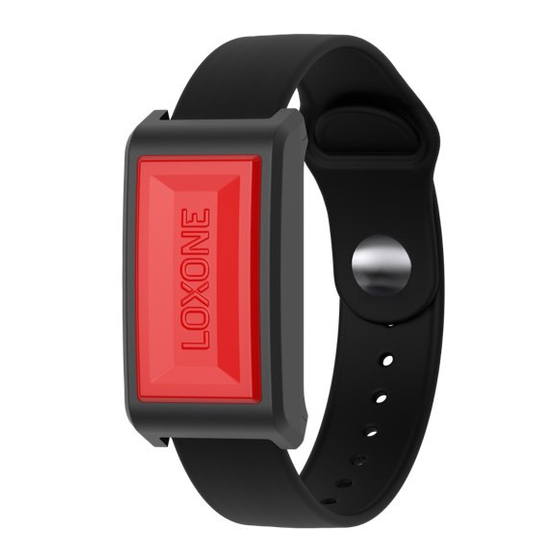

Wrist
Button Air
Part No: 100496
Advertisement
Related Manuals for LOXONE Wrist Button Air
Summary of Contents for LOXONE Wrist Button Air
- Page 1 1 Touch point, tactile switch Button Air Feedback visual Safety rating IP64 Dimensions 50x26x13.5mm / Loxone Electronics GmbH 1.97x1.02x0.53” (LxWxH) Smart Home 1 4154 Kollerschlag Maintenance & Cleaning This device is free of maintenance Part No: 100496 Austria and may only be cleaned with a dry cloth.
- Page 2 The Wrist Button Air is an individually configurable, battery- battery button powered button that can be worn comfortably on the wrist. An action triggered by the Wrist Button Air is indicated by a flashing red LED. Features • Large single pushbutton •...
