Installation Instructions &

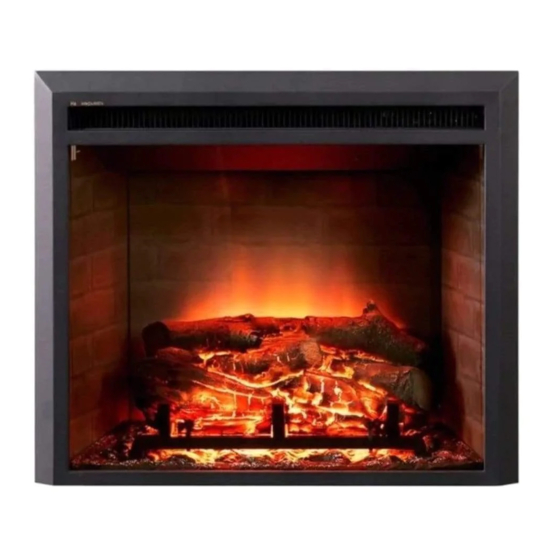

ELECTRIC HEATER WITH REMOTE CONTROL
Model: EF42D, EF43D, EF44D, EF45D
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR
MAINTAIN THE PRODUCT DESCRIBED.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION.
FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY
AND/OR PROPERTY DAMAGE.
WARNING! To reduce the risk of fire, electric shock, or personal
injury, read all the instructions before using this heater.
Homeowner's
Operating Manual
Advertisement
Table of Contents
Related Manuals for Dynasty Fireplaces EF42D
Summary of Contents for Dynasty Fireplaces EF42D
- Page 1 Homeowner’s Installation Instructions & Operating Manual ELECTRIC HEATER WITH REMOTE CONTROL Model: EF42D, EF43D, EF44D, EF45D READ AND SAVE THESE INSTRUCTIONS READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION.
- Page 2 IMPORTANT INSTRUCTIONS When using electrical appliances basic precautions should always be followed to reduce the risk of fire， electrical shock and injury to persons including the following： CAUTION- High temperature, keep electrical cords, drapery, and other furnishings at least 3 feet (0.9m) from the front of the heater and away from the side and rear.
- Page 3 INSTALLATION INSTRUCTION TOOL REQUIRED Magnetic Phillips Screw Driver Unpacking the Electric Fireplace: WARNING! Do NOT use this Electric Fireplace if any part has been under water. Immediately call a qualified service technician to inspect and to replace any part of the electrical system if necessary.
- Page 4 B. Fireplace insert for front attachment： units:mm/Inch Mantel opening size Width Height Depth Mantel Minimum Depth Width Height Model （W） （H） （D） （RD） （OW） （OH） 580-610 510-540 EF42D 220/8.7 205/8 630/24.8 545/21.5 /22.8-24 /20-21.3 660-690 590-620 EF43D 710/28 220/8.7 205/8 625/24.6 /26-27 /23-24 760-790 590-620 EF44D 220/8.7...
- Page 5 Step 2. Install insert Use 2pcs M6×16 screws to attach one side Attach another side using same method. of the insert. B. Front attachment: Install insert: ！ ！ ！ When inserting the heating unit into mantel; Do not let the bottom of the insert touch the mantel to avoid scratching it.
- Page 6 ELECTRICAL CONNECTION A 15 AMP, 120 Volt, The unit comes standard with 6 feet (1.8 m) three wire cord and plug, exiting from the rear of the fireplace. Plan the installation to avoid the use of an extension cord. Preferably, the fireplace will be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation.
- Page 7 Thermostat control 1-9 Step，room temperature is around 9-34℃. If room temperature is too high, please turn the thermostat knob in a counter-clockwise direction; if you need to turn on the heater, you can turn the thermostat knob in a clockwise direction. To Reset the Heater Your heater includes a protection system that shuts off the heater if it overheats for any reason: 1) Turn unit to off.
- Page 8 Warning: Any other servicing needed must be performed by an authorized service representative. Do not attempt to service the unit yourself. Dynasty Fireplaces | Unit 10 - 3071 No. 5 Road, Richmond, BC V6X 2T4 Canada Tel: (604) 821-1009 | Toll free: 1-877-521-1009 | Fax: (604) 821-1019...
