AMB-300

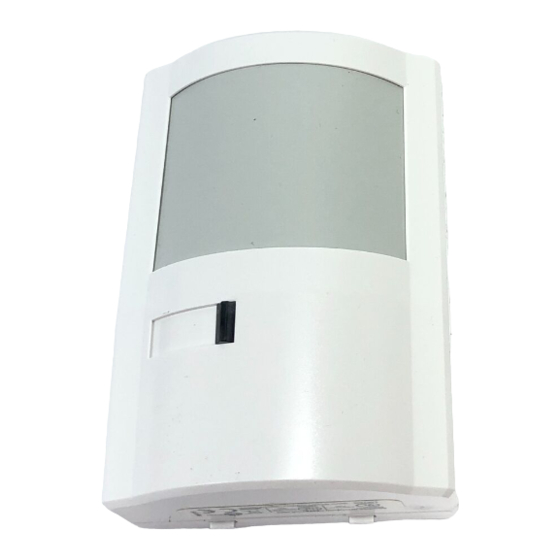

Addressable PIR Detector

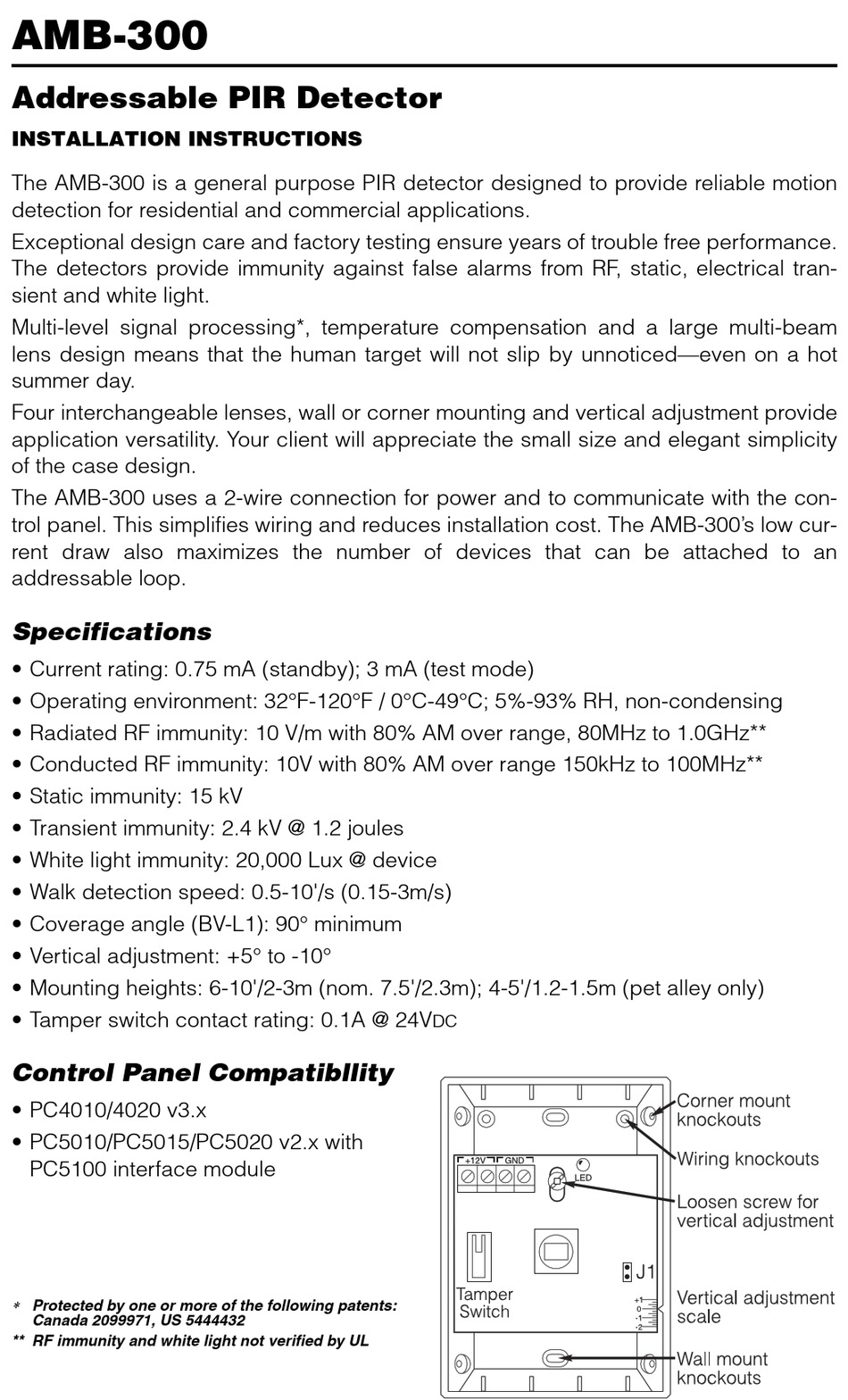

INSTALLATION INSTRUCTIONS
The AMB-300 is a general purpose PIR detector designed to provide reliable motion
detection for residential and commercial applications.
Exceptional design care and factory testing ensure years of trouble free performance.
The detectors provide immunity against false alarms from RF, static, electrical tran-
sient and white light.
Multi-level signal processing*, temperature compensation and a large multi-beam
lens design means that the human target will not slip by unnoticed—even on a hot
summer day.
Four interchangeable lenses, wall or corner mounting and vertical adjustment provide
application versatility. Your client will appreciate the small size and elegant simplicity
of the case design.
The AMB-300 uses a 2-wire connection for power and to communicate with the con-
trol panel. This simplifies wiring and reduces installation cost. The AMB-300's low cur-
rent draw also maximizes the number of devices that can be attached to an
addressable loop.
Specifications
• Current rating: 0.75 mA (standby); 3 mA (test mode)
• Operating environment: 32°F-120°F / 0°C-49°C; 5%-93% RH, non-condensing
• Radiated RF immunity: 10 V/m with 80% AM over range, 80MHz to 1.0GHz**
• Conducted RF immunity: 10V with 80% AM over range 150kHz to 100MHz**
• Static immunity: 15 kV
• Transient immunity: 2.4 kV @ 1.2 joules
• White light immunity: 20,000 Lux @ device
• Walk detection speed: 0.5-10'/s (0.15-3m/s)
• Coverage angle (BV-L1): 90° minimum
• Vertical adjustment: +5° to -10°
• Mounting heights: 6-10'/2-3m (nom. 7.5'/2.3m); 4-5'/1.2-1.5m (pet alley only)
• Tamper switch contact rating: 0.1A @ 24V
Control Panel Compatibllity
• PC4010/4020 v3.x
• PC5010/PC5015/PC5020 v2.x with
PC5100 interface module
∗
Protected by one or more of the following patents:
Canada 2099971, US 5444432
** RF immunity and white light not verified by UL
