Flavel Arundel MK2 Installation And Operating Instructions Manual

Flavel Arundel MK2 Installation And Operating Instructions Manual

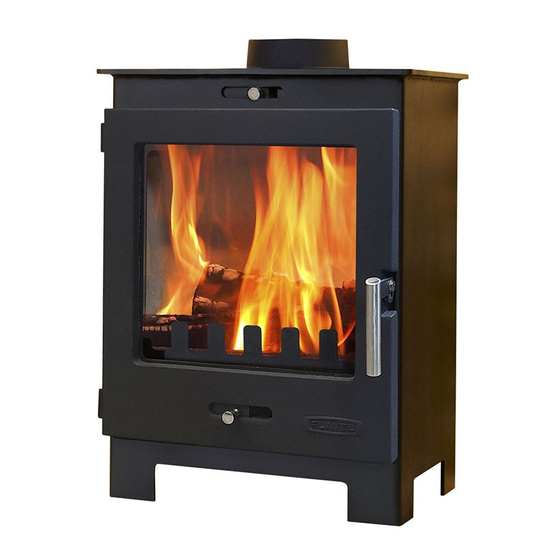

Multi-fuel stove

Advertisement

Quick Links

Arundel MK2
Multi-Fuel Stove, Model No. FCMSB2
Installation and Operating Instructions
Leave this manual with the householder
To find a qualified installer, fuel supplier or chimney sweep please contact :-
UK -
The Solid Fuel Association
7 Swanwick Court
Alfreton
Derbyshire
DE55 7AS
Tel : (0845) 601 4406
www.solidfuel.co.uk
This Flavel Arundel MK2 Stove may be used in smoke control areas when operated strictly
in accordance with these instructions and with Soliftec Smoke Advice Sheet No. 1
(www.soliftec.com/smokeadvice.htm) when burning :
UK : Untreated wood logs or authorised smokeless fuels (exempted from s20 of the clean
air act 1993)
ROI : Wood logs, smokeless fuels or peat briquettes, but not petroleum coke (Control of
Atmospheric Pollution Regulations, 1970)
Read these Instructions and
use only the recommended fuels
following installation
R.O.I. - Irish Nationwide Fireplace Organisation
162 Capel Street
Dublin
Tel (01) 801 5959
www.fireplace.ie
Page 1 of 18
