IMPORTANT! KEEP FOR FUTURE REFERENCE.
Read INSTRUCTIONS thoroughly before assembling and installing gate.
If you sell or give away this product, make sure you give this Instruction to the new owner.
WARNING
Children have died or been seriously injured when
enclosures are not securely installed.
• ALWAYS install and use enclosures as directed using
all required parts.
• STOP using when child can climb over or dislodge/open
the enclosure.
• Use only with the locking mechanism securely engaged.
• NEVER use an enclosure to keep child away from pool.
• To prevent falls, NEVER use at top of stairs.
Fits Opening 3.8m / 151in
COMPONENTS
A
Gate Panel
B
Barrier Panel
C
Upper Securing Hinge
D
Securing Screw
E
Lower Hinge
F
Vertical Bar
G
Vertical Bar Top Casing
H
Gate Release Switch
I
Gate Upper Lock
J
Gate Lower Lock
Wall Mounting Parts
K
Upper Mount ( Side X)
L
Upper Mount ( Side Y )
M
Lower Mounts
N
Wood Screws (38mm / 1.5in)
O
Lower Hinge Cap (Installed)
P
Floor Cap
Required for Assembly/mounting
Q
Allen Key (4mm)
x 1
K
L
INSTRUCTIONS:

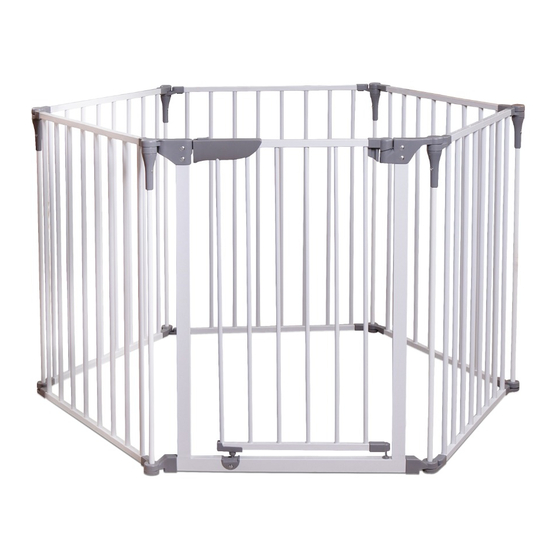

Royale Converta
•Play-Pen •Fireplace Barrier •Wide Barrier Gate
• The surfaces that the enclosure is to be fixed to must be suitable for
• Intended for use with children from 6 months through 24 months.
• This enclosure has a manual close system.
• This product will not necessarily prevent all accidents.
• Do not use Play-Pen at the top of stairs.
• The Play-Pen is not intended for sleep use.
• Do not place the Play-Pen close to an open fire or other heat source.
• If using this enclosure as a fireplace barrier, ensure it is installed at least
• This enclosure is intended for indoor use and is not to be exposed to
• Barrier can be used to create a landing area at the top or base of stairs.
• Discontinue use if gate becomes damaged, broken, or disassembled.
• Do not leave anything in the Play-Pen which may provide a foothold for
• The safety barrier must not be fitted across windows.
• This barrier is for domestic use only.
B
A
WARNING
unassembled state. Keep out of reach of children. Adult assembly required.
x 1
x 2
M
3-in-1 Play-Pen Gate
®
purpose and structurally sound.
NEVER leave child unattended.
60cm / 23.5in from fire source.
outdoor elements.
Never use at top of stairs directly across top step.
climbing
D
H
I
J
This package contains small parts and sharp points in an
x 8
N
Wood Screws.
Wood use only.
For Brick or Masonry use the
appropriate fittings, screws and
plugs for your wall (not included).
F849.F2003.F2161_Royale Converta
D C
B
B
E
x 1
x 1
x 1
O
P
Q
NOTE:
Store Allen Key safely
out of reach of children.
Keep for future use.
IM_04.08.2020_X.04
®
F849
F2003
F2161
ASTM F1004
G
F
F
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for dreambaby Royale Converta F849
Summary of Contents for dreambaby Royale Converta F849

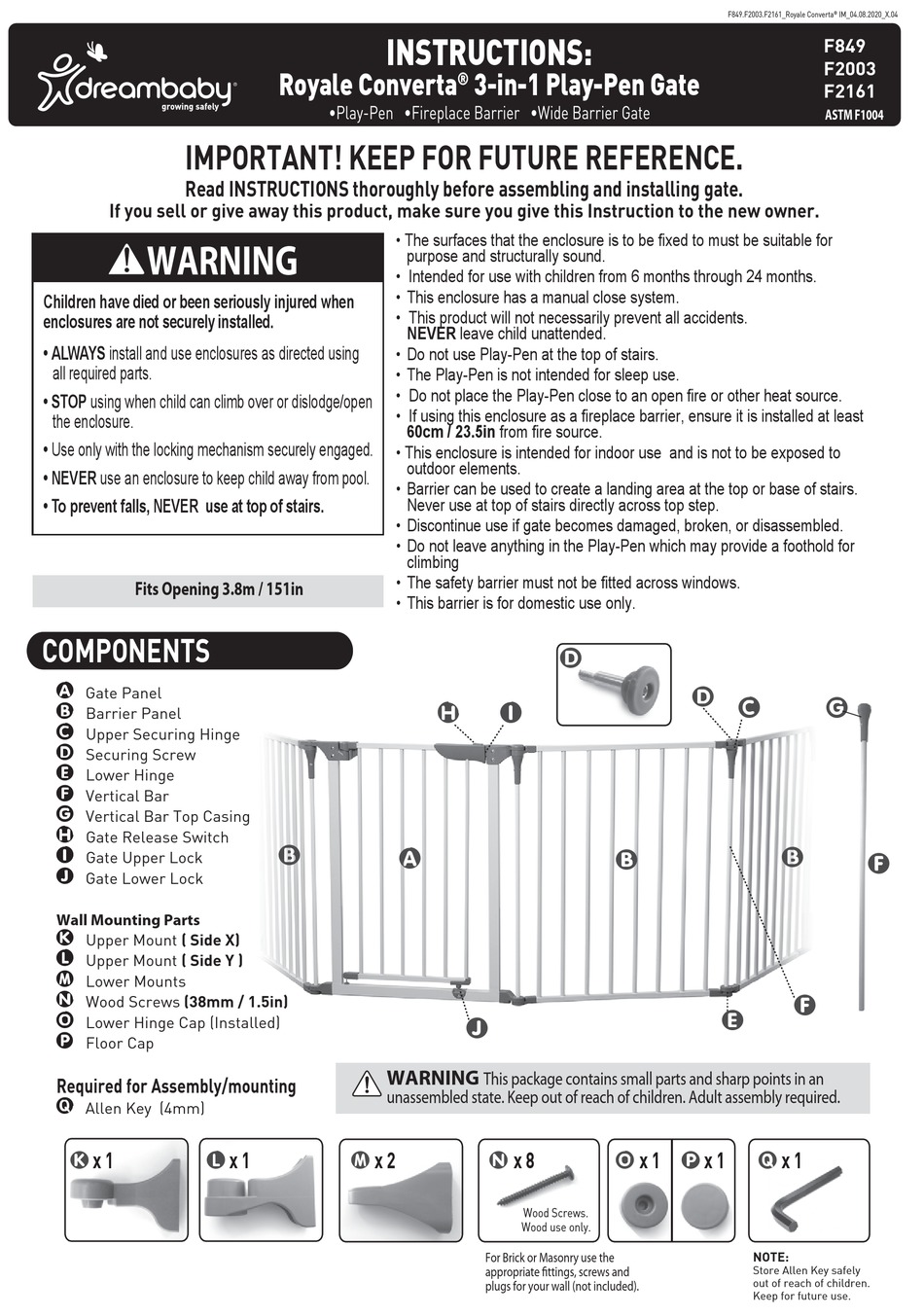

- Page 1 F849.F2003.F2161_Royale Converta IM_04.08.2020_X.04 ® INSTRUCTIONS: F849 F2003 Royale Converta 3-in-1 Play-Pen Gate ® F2161 •Play-Pen •Fireplace Barrier •Wide Barrier Gate ASTM F1004 IMPORTANT! KEEP FOR FUTURE REFERENCE. Read INSTRUCTIONS thoroughly before assembling and installing gate. If you sell or give away this product, make sure you give this Instruction to the new owner. •...
