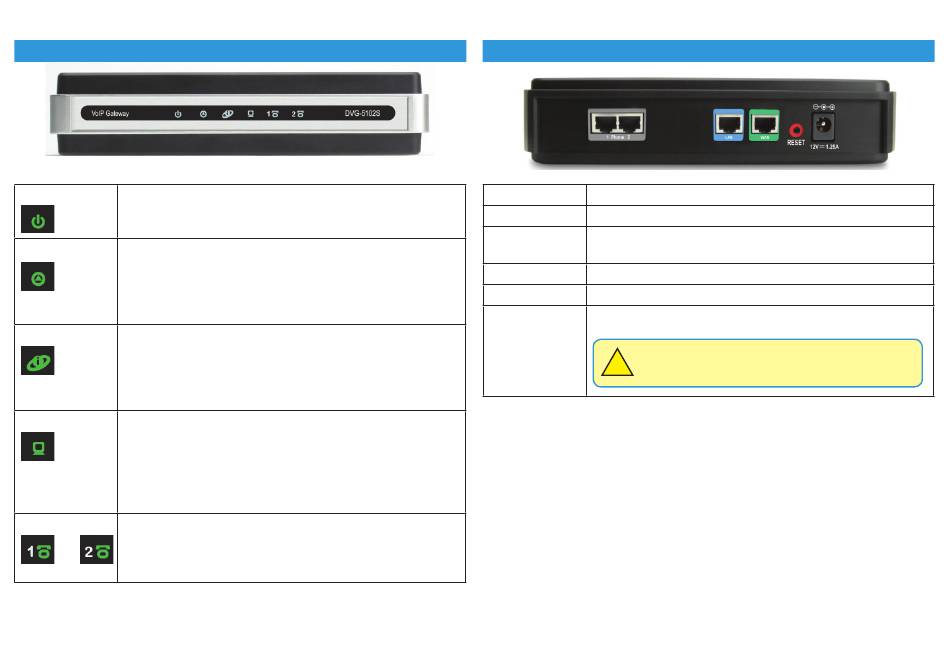

Hardware Overview

Power LED
Solid Green indicates Powered on.
Status LED
Solid Green indicates the registration is successful and
system is ready. The LED will blink to indicate there are
some activities between router and service provider.
The LED will be off during system boot up or failure
to register.
WAN LED
Solid Green indicates Internet connection is established.
The LED will blink to indicate there are some activities
between the router and modem. If the LED does not light
up when a cable is connected, please verify the cable
connection and make sure the device is powered up.
LAN LED
Solid Green indicates connection is established between
the router and computer. The LED will blink to indicate
there are some activities between router and computer.
If the LED does not light up when a cable is connected,
please verify the cable connection and make sure the
device is powered up.
Phone LEDs
Solid Green indicates the registration is successful and
system is ready to use. The LED will blink to indicate the
or
phone is off-hook or there is a voice mail. The LED will be
off during system boot up or failure to register.
Front Panel
Phone 1
Telephone line # 1
Phone 2
Telephone line # 2
LAN
Connect to your Ethernet enabled computer by Ethernet
cable (RJ-45)
WAN
Connect to broadband modem by Ethernet cable (RJ-45)
Reset
Restore the units to the factory default setting
12V=1.25A
Receptor for the provided 12 volt DC power source
Using a power supply with a different voltage
!
rating will damage this product.
Rear Panel
