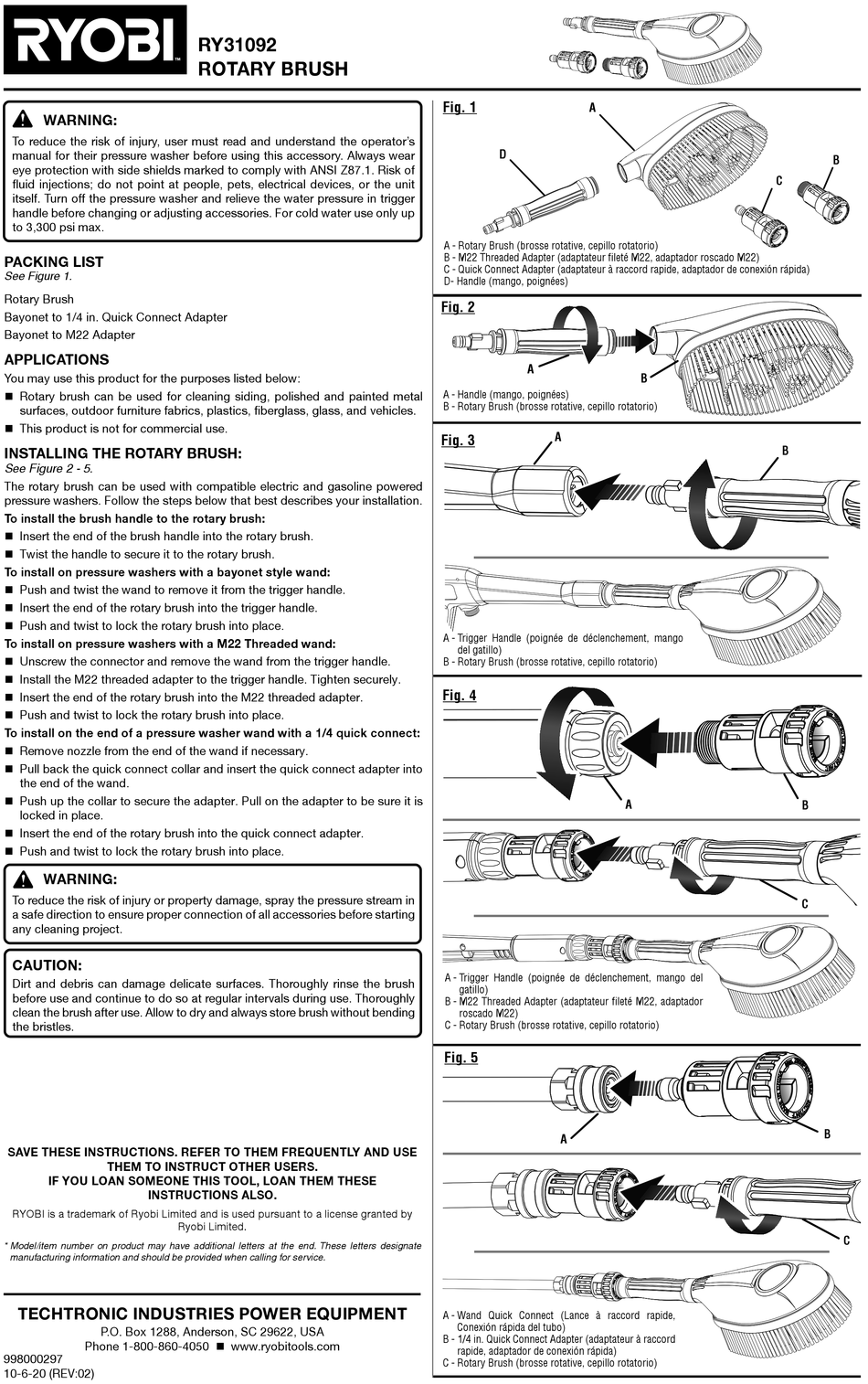

Ryobi RY31092 Instructions

WARNING:
To reduce the risk of injury, user must read and understand the operator's
manual for their pressure washer before using this accessory. Always wear
eye protection with side shields marked to comply with ANSI Z87.1. Risk of
fluid injections; do not point at people, pets, electrical devices, or the unit
itself. Turn off the pressure washer and relieve the water pressure in trigger
handle before changing or adjusting accessories. For cold water use only up
to 3,300 psi max.
PACKING LIST
See Figure 1.
Rotary Brush
Bayonet to 1/4 in. Quick Connect Adapter
Bayonet to M22 Adapter
APPLICATIONS
You may use this product for the purposes listed below:
 Rotary brush can be used for cleaning siding, polished and painted metal
surfaces, outdoor furniture fabrics, plastics, fiberglass, glass, and vehicles.
 This product is not for commercial use.
INSTALLING THE ROTARY BRUSH:
See Figure 2 - 5.
The rotary brush can be used with compatible electric and gasoline powered
pressure washers. Follow the steps below that best describes your installation.
To install the brush handle to the rotary brush:
 Insert the end of the brush handle into the rotary brush.
 Twist the handle to secure it to the rotary brush.
To install on pressure washers with a bayonet style wand:
 Push and twist the wand to remove it from the trigger handle.
 Insert the end of the rotary brush into the trigger handle.
 Push and twist to lock the rotary brush into place.
To install on pressure washers with a M22 Threaded wand:
 Unscrew the connector and remove the wand from the trigger handle.
 Install the M22 threaded adapter to the trigger handle. Tighten securely.
 Insert the end of the rotary brush into the M22 threaded adapter.
 Push and twist to lock the rotary brush into place.
To install on the end of a pressure washer wand with a 1/4 quick connect:
 Remove nozzle from the end of the wand if necessary.
 Pull back the quick connect collar and insert the quick connect adapter into
the end of the wand.
 Push up the collar to secure the adapter. Pull on the adapter to be sure it is
locked in place.
 Insert the end of the rotary brush into the quick connect adapter.
 Push and twist to lock the rotary brush into place.
WARNING:
To reduce the risk of injury or property damage, spray the pressure stream in
a safe direction to ensure proper connection of all accessories before starting
any cleaning project.
CAUTION:
Dirt and debris can damage delicate surfaces. Thoroughly rinse the brush
before use and continue to do so at regular intervals during use. Thoroughly
clean the brush after use. Allow to dry and always store brush without bending
the bristles.
SAVE THESE INSTRUCTIONS. REFER TO THEM FREQUENTLY AND USE
THEM TO INSTRUCT OTHER USERS.
IF YOU LOAN SOMEONE THIS TOOL, LOAN THEM THESE
INSTRUCTIONS ALSO.
RYOBI is a trademark of Ryobi Limited and is used pursuant to a license granted by
* Model/item number on product may have additional letters at the end. These letters designate
manufacturing information and should be provided when calling for service.
TECHTRONIC INDUSTRIES POWER EQUIPMENT
P.O. Box 1288, Anderson, SC 29622, USA
Phone 1-800-860-4050  www.ryobitools.com
998000297
10-6-20 (REV:02)
RY31092
ROTARY BRUSH
Ryobi Limited.
Fig. 1
A
D
A - Rotary Brush (brosse rotative, cepillo rotatorio)
B - M22 Threaded Adapter (adaptateur fileté M22, adaptador roscado M22)
C - Quick Connect Adapter (adaptateur à raccord rapide, adaptador de conexión rápida)
D- Handle (mango, poignées)
Fig. 2
A
A - Handle (mango, poignées)
B - Rotary Brush (brosse rotative, cepillo rotatorio)
A
Fig. 3
A - Trigger Handle (poignée de déclenchement, mango
del gatillo)
B - Rotary Brush (brosse rotative, cepillo rotatorio)
Fig. 4
A - Trigger Handle (poignée de déclenchement, mango del
gatillo)
B - M22 Threaded Adapter (adaptateur fileté M22, adaptador
roscado M22)
C - Rotary Brush (brosse rotative, cepillo rotatorio)
Fig. 5
A
A - Wand Quick Connect (Lance à raccord rapide,
Conexión rápida del tubo)
B - 1/4 in. Quick Connect Adapter (adaptateur à raccord
rapide, adaptador de conexión rápida)
C - Rotary Brush (brosse rotative, cepillo rotatorio)
C
B
B
A
B
B
C
B
C
