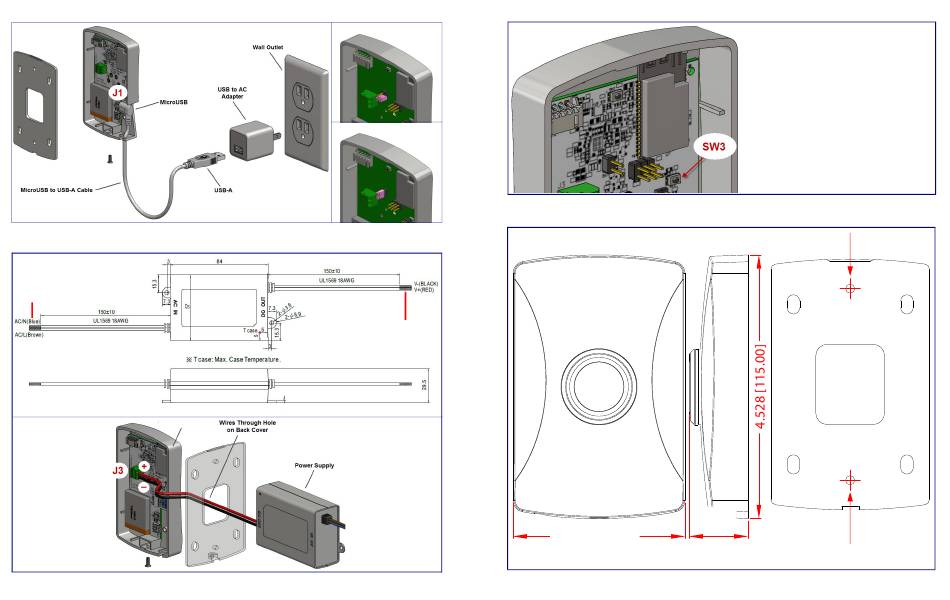

CyberData 011527 Installation Quick Reference page 2

J1 Power Connection
J1 = Micro-USB Power Connection
Optional Auxiliary Power Supply (Part #561015 [Sold Separately])
AC Power Input
Blue - Neutral
Brown - Line
0.4A @ 230VAC
0.8A @ 115VAC
WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
WiFi Alert Button
J3 Power Connection
J3 = Auxiliary Power Input
© 2020, CyberData Corporation, ALL RIGHTS RESERVED
Enable the Battery
Before Installation
Battery Disabled
Battery Enabled
Red: +5VDC connects to J3 (+)
Black: Ground connects to J3 (-)
931786A
Reset Test Function Management (RTFM) Button
Dimensions and Mounting Template
5V Output
Quick Reference Quick Reference
Dimensions are in Inches [Millimeters]
1.012
[25.70]
2.953 [75.00]
Note: The alternate two holes of the back plate can be
931786A
When the device is operational and linked to a network,
you can use the Reset Test Function Management (RTFM)
button (SW3 [see picture]) to restore the device to the
factory default settings.
To restore the device to factory default settings:
• Press and hold the RTFM button for three seconds.
used to mount to most standard gang boxes.
