Frontgate Carlisle 28019 Assembly Instructions

*Warning：DO NOT use power tools.

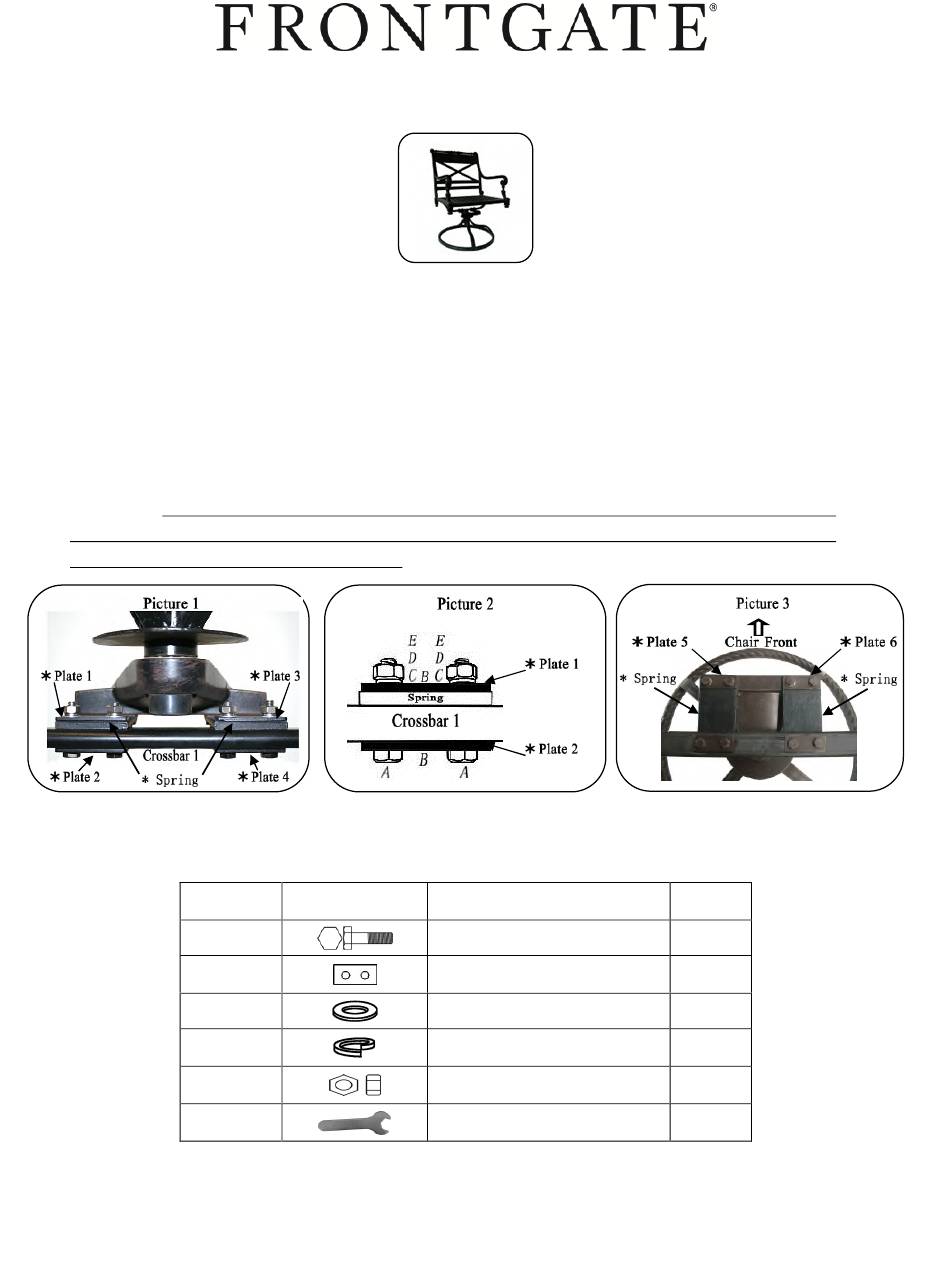

1.On a soft clean surface position the chair bucket upside down with the arms on the floor.
2.Remove the hardware and aluminum plates *1, *2, *3, *4 loosely attached to the springs shown in Picture 1. Do
not remove the hardware, springs, and aluminum plates *5 and *6 from the chair swivel base shown in Picture 3.
3.Align the 4 holes in the springs on the chair base with the four holes on the chair crossbar 1. Using the removed
hardware from Step 2 attach the springs to the crossbar using 4 bolts (A), 4 aluminum plates (B), 4 flat washers (C),
4 lock washers (D), and 4 nuts (E) as shown in Picture 2. Complete final assembly is shown in Picture 1. Correct
assembly of the chair to the swivel base is shown in Picture 3.
4.Once chair is assembled, firmly tighten all 8 bolts attaching the springs to the swivel base and to the chair shown
in Picture 3.
*Warning：The six (6) Plates MUST BE correctly assembled as shown in Pictures 1, 2 and 3. Failure to
position the plates as shown will result in spring failure which could cause personal injury. Product warranty
is void if the plates are not correctly positioned.
Care & Maintenance: Please do not use acid or alkaline washing liquid to clean the product. We recommend a
mild dish soap and warm water for best cleaning results on the metal frames and fabrics.
Parts
A
B
C
D
E
F
Frontgate: Please contact one of our Product Specialists for assembly assistance or questions at
1-800-537-8484 or email ps@frontgate.com.
Assembly Instructions
28019 Carlisle Dining Swivel Rocker

PARTS INCLUDED

Pictures
* Aluminum plate
Outer Hexagonal Wrench （M8）
Description
Bolt
Flat Washer
Lock Washer
Nut
Qty
4
4
4
4
4
1
