Frontgate Carlisle Cast Rect. Dining Table Assembly Instructions

ATTENTION:
1. Please read this instruction carefully before assembly.
2. Aluminum is soft metal, over tightening may strip threads or break the part.
3. Do not use power tools.
Assembly steps:
1. Turn table top (A) upside down on a soft clean surface.
2. Attach table legs (D) to long center plates (B) and short center plates（C）with flat washers (F),
lock washers (G) and nuts (H). Don't tighten.
3. This is the outlook of the assembled table legs with center plates.
4. Loosely attach four legs with center plates to the table top with flat washers (F), lock washers (G)
and bolts (E). Please do not tighten bolts to center bracket until all legs are aligned properly,
and do not over tighten.

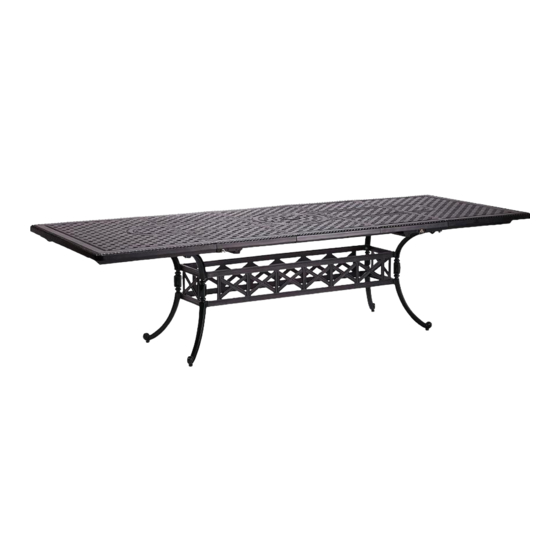

5. After all the parts are put in place, tighten all the bolts and nuts completely with outer hexagonal
wrench （J）, but don't over tighten. Then attach all the nut caps (I). Use feet adjusters to level
the table. This is the outlook of the assembled cast 42"*86" rect. dining table.
Care & Maintenance: Please do not use acid or alkaline washing liquid to clean the product. We recommend
a mild dish soap and warm water for best cleaning results on the metal frames and fabrics.
Parts Pictures
A
B
C
D
Frontgate: Please contact one of our Product Specialists for assembly assistance or questions at 1-800-
537-8484 or email:ps@frontgate.com. Specialists are available weekdays 8:00 a.m. to 8:00 p.m .EST or
Saturdays 9:30 a.m. to 6:00 a.m.

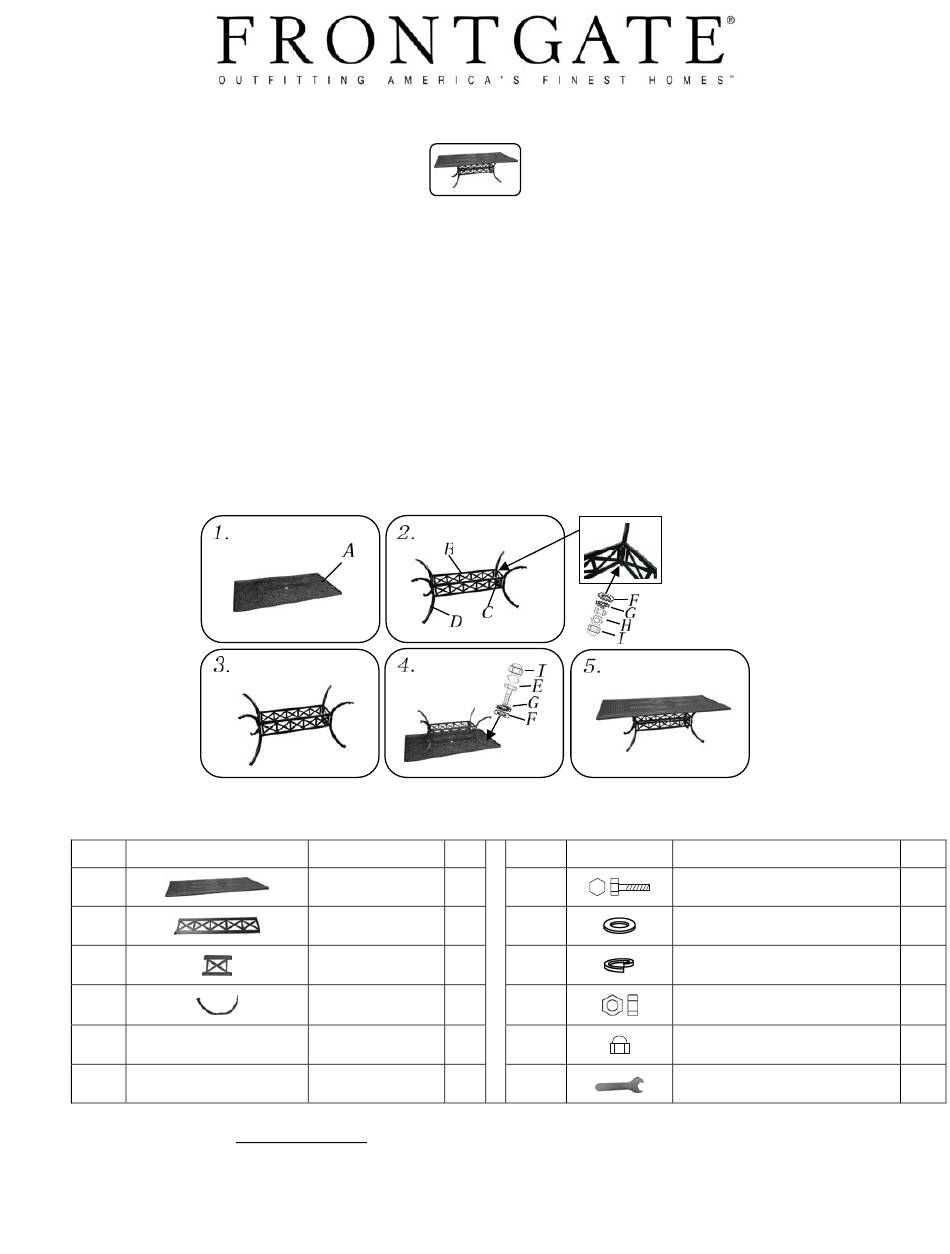

Assembly Instructions
47610 Carlisle Cast Rect. Dining Table 42" x 86"
Description
Table top
Long center plate
Short center plate
Leg
Qty Parts Pictures
1 E
2 F
2 G
4 H
I
J
Description
Bolt (M8*30)
Flat washer (Φ16*1.0*Φ8.5)
Lock washer (Φ12.5*2.0*Φ8.5)
Nut (M8)
Nut cap (M8)
Outer hexagonal wrench （M8）
Qty
4
12
12
8
12
1
