Summary of Contents for Frontgate 64445

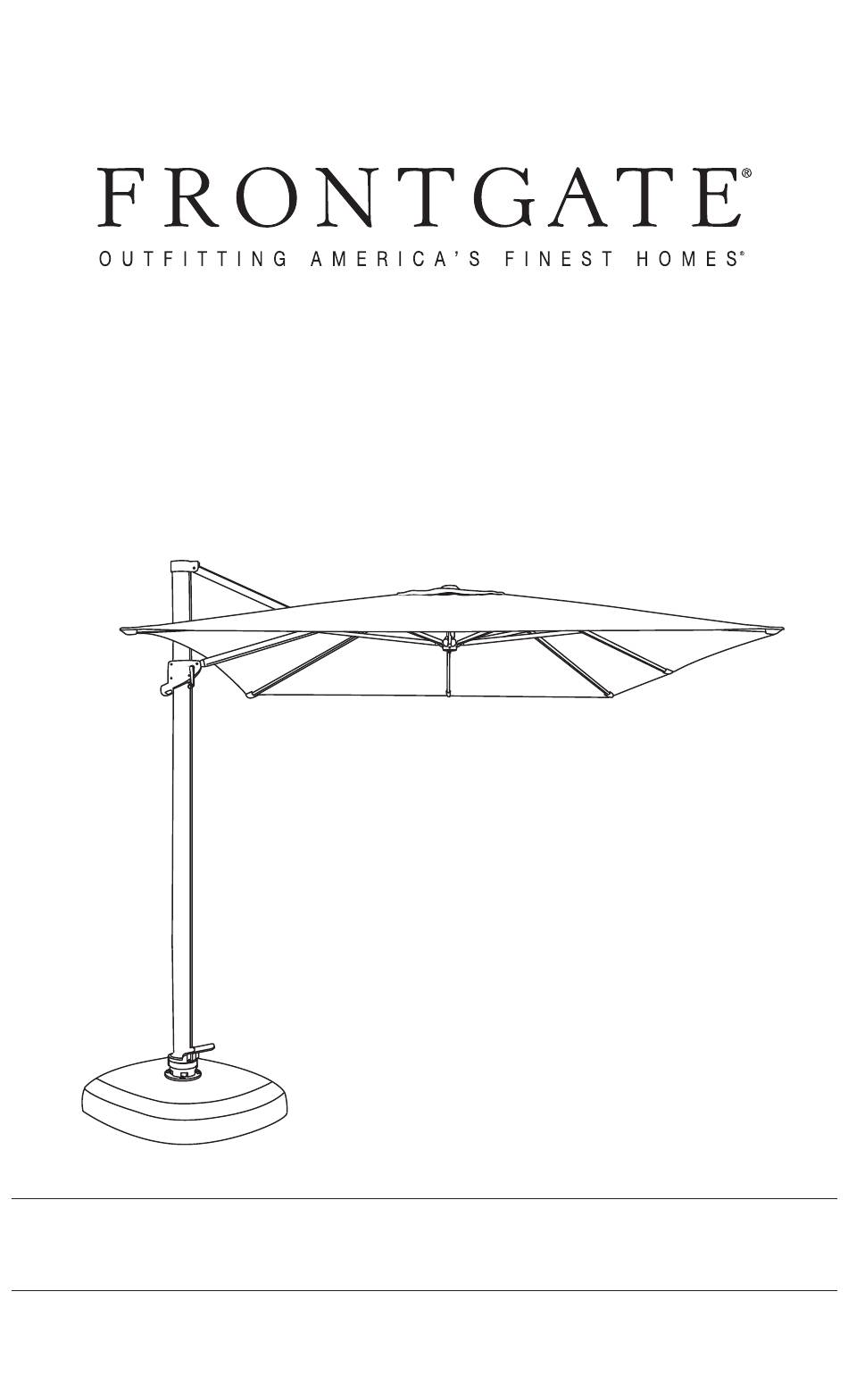

- Page 1 10ft. Square Side Mount Item # 64445 A S S E M B L Y A N D O P E R A T I O N...
- Page 2 Thank you for your purchase of Frontgate’s 10’ Square Side Mount umbrella. Please remove all contents from the package, inspect and review checklist for all parts. CAUTION: To reduce personal injury and damage to your umbrella, read and follow this Assembly and Operation information.
-
Page 3: Parts List
PARTS LIST Part Description Qty. Base Shell Base Lid Steel Wrench Inverted Base Stem Inverted Plate Playground Sand (not included) 200 lbs. Rotating Hub Large Hexagon Wrench Main Frame and Rotating Hub Crank Lift Handle Small Hexagon Wrench Hub Bolts Plate Bolts Washers IMPORTANT: Prior to assembly it is important to decide on the location of the... - Page 4 S T E P 1 Base Assembly Select area to set base and place in desired location. NOTE: Moving the umbrella will be difficult once fully assembled. Remove inverted plate from inverted base stem (Fig. 1). Remove the inverted base stem by using the steel wrench (provided) turning counter-clockwise (Fig.
- Page 5 S T E P 2 Umbrella Assembly NOTE: Two-persons recommended for team lift and the rest of the assembly. Attach the inverted plate to the rotating hub by tightening with the (4) plate bolts (Fig. 8). Attach rotating hub (with inverted plate) to inverted base stem by tightening with the (4) hub bolts and (4) washers (Fig.
- Page 6 S T E P 3 Opening Umbrella From closed position, turn the crank clockwise while disengaging main frame grip handle and guiding up main frame (Fig. 12), until the umbrella is fully opened (Fig. 13) and the hub is at the top most position (Fig. 14). Tilt umbrella to desired position.
- Page 7 S T E P 4 Tilting Umbrella To tilt umbrella, squeeze the main frame grip handle (Fig. 15) and slide handle to desired tilt position (Fig. 16). Release main frame grip handle to lock into tilt position. Horizontal Position Hole Tilt Position #1 Hole (Fig.
- Page 8 S T E P 5 Closing Umbrella To close umbrella, squeeze main frame grip handle (Fig. 17) and slide grip handle down to closed position (Fig. 18) while turning crank handle counter-clockwise (Fig. 19) until umbrella is closed (Fig. 20). Use ties to secure canopy to the main frame when umbrella is not in use.
- Page 9 Rotating Features To OPERATE the 360° Rotating Hub Swivel: Place your foot on the foot pedal of the rotating hub and step-on the base pedal to release rotating lock (Fig. 21). Place hands on the main frame (Fig. 22) and swivel the umbrella frame in either direction until desired position is reached (Fig.
-
Page 10: Safety Precautions
SAFETY PRECAUTIONS: • Close the umbrella in windy conditions or when a storm approaches. Never allow the umbrella to flap in the wind; this could damage the canopy. • Do not leave open umbrella unattended. If damage occurs, this is not covered by the warranty. - Page 11 Please contact one of our Product Specialists for assembly assistance or questions at 1-800-537-8484 or email ps@frontgate.com. Specialists are available weekdays 8:00 a.m. to 8:00 p.m. EST or Saturday 9:30 a.m. to 6:00 p.m.
- Page 12 ©2014 Frontgate, Inc. - All Rights Reserved. Revised 9/14...
