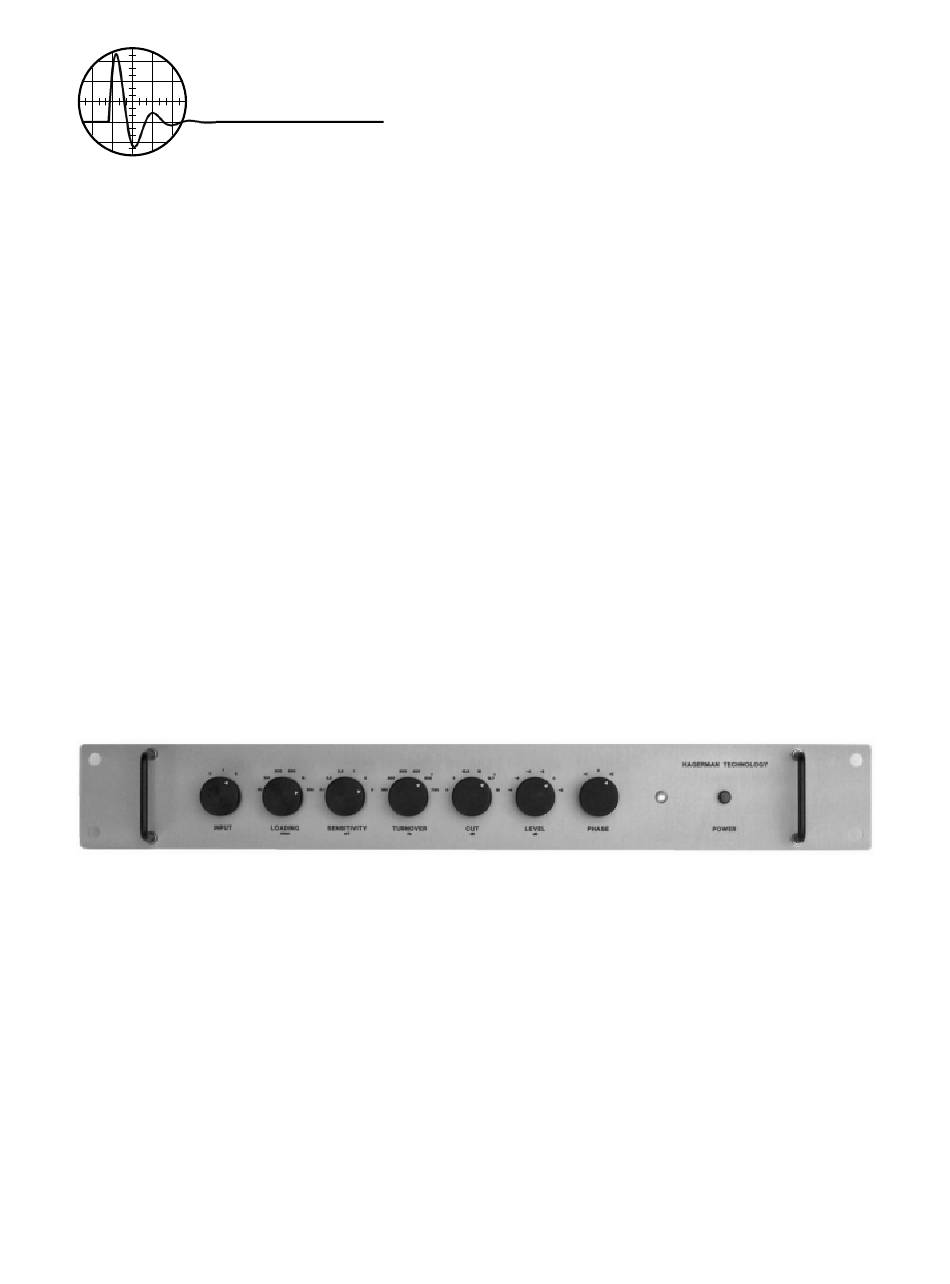

- Page 1 HAGERMAN T E C H N O L O G Y Archiver Variable EQ Phono Preamp with USB Made in USA...
-
Page 2: Copyrights And Trademarks
Archiver Variable EQ Recording Phonostage Copyrights & Trademarks © Copyright Hagerman Technology LLC 2007. All rights reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent. USB, iTunes, Windows XP, OS-X, and other various terms are trademarks of their respective organizations. -
Page 3: Package Contents
Archiver Variable EQ Recording Phonostage Description The Archiver is an extremely flexible phonostage that offers variable loading, gain, equalization, and polarity. It includes a gain trim and built-in digitizer with USB output for easy recording to computer. The open-frame rack mount chassis is perfect for studio, library, or professional use. -
Page 4: Operation
Archiver Variable EQ Recording Phonostage Operation Connect the ground lead from your turntable to the ground lug on the rear panel. Connect the phono leads to the input jacks. The output jacks connect to your audio system or linestage. Set the front panel select switches to their appropriate settings. -
Page 5: Troubleshooting
Archiver Variable EQ Recording Phonostage Troubleshooting Problem Solution Power LED off. Unit not plugged in? Switch off? No sound. Check INPUT and PHASE switches. Audio stops or “tics” are Too many devices on the USB bus? present. DAC does not accept signal.
