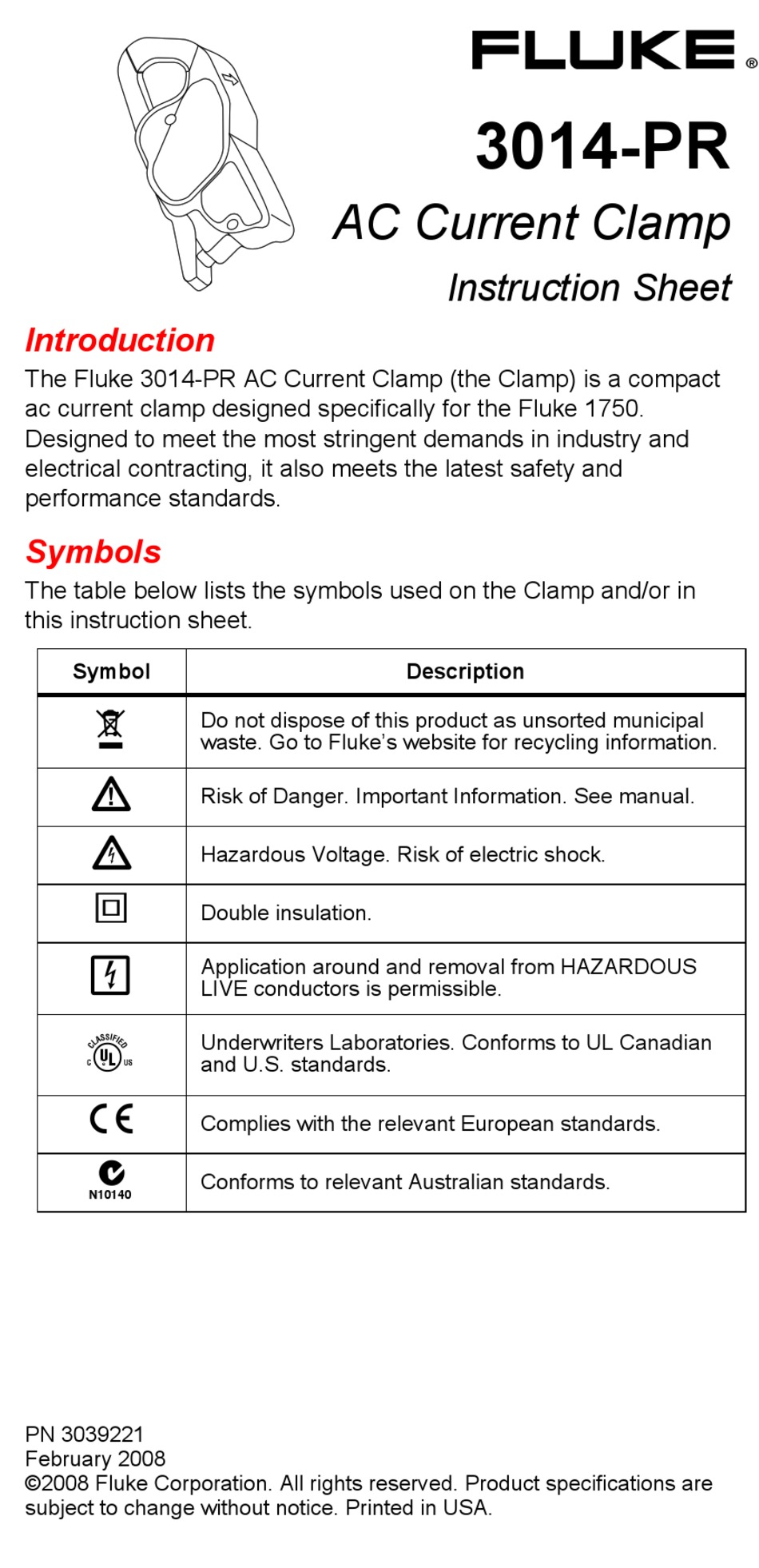

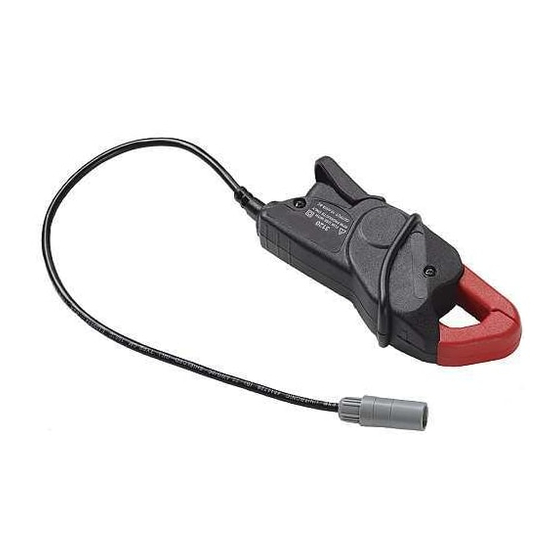

The Fluke 3014-PR AC Current Clamp (the Clamp) is a compact
ac current clamp designed specifically for the Fluke 1750.
Designed to meet the most stringent demands in industry and
electrical contracting, it also meets the latest safety and
performance standards.
Symbols
The table below lists the symbols used on the Clamp and/or in
this instruction sheet.
Symbol
~
W
X
T
,
@
P
;
PN 3039221
February 2008
©2008 Fluke Corporation. All rights reserved. Product specifications are
subject to change without notice. Printed in USA.
AC Current Clamp
Do not dispose of this product as unsorted municipal
waste. Go to Fluke's website for recycling information.
Risk of Danger. Important Information. See manual.
Hazardous Voltage. Risk of electric shock.
Double insulation.
Application around and removal from HAZARDOUS
LIVE conductors is permissible.
Underwriters Laboratories. Conforms to UL Canadian
and U.S. standards.
Complies with the relevant European standards.
Conforms to relevant Australian standards.
3014-PR
Instruction Sheet
Description
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3014-PR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fluke 3014-PR

Summary of Contents for Fluke 3014-PR

  • Page 1 AC Current Clamp Instruction Sheet Introduction The Fluke 3014-PR AC Current Clamp (the Clamp) is a compact ac current clamp designed specifically for the Fluke 1750. Designed to meet the most stringent demands in industry and electrical contracting, it also meets the latest safety and performance standards.

  • Page 2: Safety Instructions

    Safety Instructions Please read this section carefully. It will familiarize you with the most important safety instructions for handling the Clamp. In this instruction sheet, a Warning identifies conditions and actions that pose hazard(s) to the user. A Caution identifies conditions and actions that may damage the test instruments.

  • Page 3: Electrical Specifications

    Tactile Barrier ezk01.eps Figure 1. 3014-PR AC Current Clamp Operating Instructions Connect the Clamp to the 1750 current input jack. Verify that the 1750 has recognized that a current Clamp is connected. Place the Clamp around the conductor under test.

  • Page 4: Mechanical Specifications

    Overload 50 A for Continuous Frequency Range 40 to 10 kHz (See Figure 2) Crest Factor 3 @ 10 A rms with an error (due to CF) of Working Voltage 600 V rms Common Mode Voltage 30 V rms Influence of Adjacent <15 mA/A at 50 Hz Conductor Influence of dc on ac signal...

  • Page 5: Environmental Specifications

    Environmental Specifications Operating Temperature 14 ° to 131 °F (-10 ° to +55 °C) Storage Temperature -40 ° to 158 °F (-40 ° to +70 °C) Altitude Non-operating: 0 to 12,000 m Operating: 0 to 2000 m Operating Relative 10 to 35 °C 85 % RH Humidity (without roll-off above 35 °C) Influence of Temperature...
  • Page 6 Figure 2. Frequency Response at 2 and 40 A LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for one year from the date of purchase. This warranty does not cover...

Table of Contents
