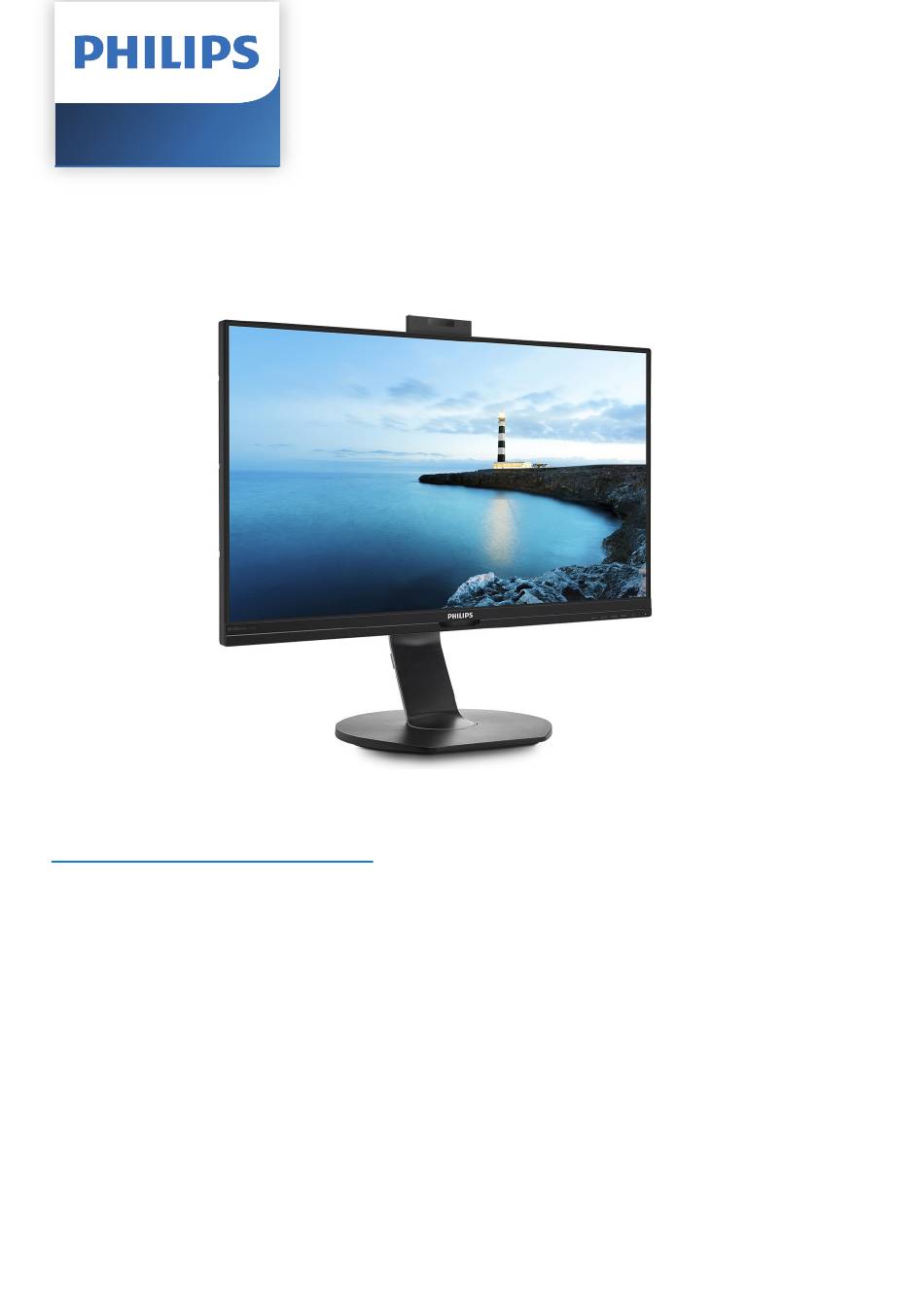

B Line
272B7
www.philips.com/welcome
EN User manual
1
Customer care and warranty 30
Troubleshooting & FAQs
34

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B Line 272B7 and is the answer not in the manual?

Questions and answers

Related Manuals for Philips B Line 272B7

Summary of Contents for Philips B Line 272B7

  • Page 1 B Line 272B7 www.philips.com/welcome EN User manual Customer care and warranty 30 Troubleshooting & FAQs...

  • Page 2: Table Of Contents

    6. PowerSensor™ ......21 7. Daisy-chain function ....23 8. Technical Specifications ..24 8.1 Resolution & Preset Modes ... 27 9. Power Management ....29 10. Customer care and warranty .30 10.1 Philips’ Flat Panel Monitors Pixel Defect Policy ....30...

  • Page 3: Important

    • Please use approved power cord provided by Philips all the time. If your power cord is missing, please 1.1 Safety precautions and contact with your local service maintenance center.
  • Page 4 1. Important • Do not knock or drop the monitor • Unplug the monitor if you need to during operation or transportation. clean it with a slightly damp cloth. The screen may be wiped with a • Excessive usage of monitor can dry cloth when the power is off.

  • Page 5: Notational Descriptions

    1. Important • “Burn-in”, “after-imaging”, or 1.2 Notational Descriptions “ghost imaging” is a well-known The following subsections describe phenomenon in LCD panel notational conventions used in this technology. In most cases, the document. “burn-in” or “after-imaging” or “ghost imaging” will disappear Notes, Cautions and Warnings gradually over a period of time after Throughout this guide, blocks of text...

  • Page 6: Disposal Of Product And Packing

    From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end- of-life management primarily entails This marking on the product or on participation in national take-back...

  • Page 7: Setting Up The Monitor

    This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
  • Page 8 2. Setting up the monitor Warnings USB docking USB C Connecting to your PC USB C-C USB C-A + Driver HDMI-IN HDMI-OUT DC output Kensington anti-theft lock Fast Charger Audio output DisplayPort output USB fast charger USB downstream Ethernet DP OUT USB Type C input/Upstream Display port input HDMI input...
  • Page 9 “USB standby mode”, and driver. switch it to “ON” state. You can find the “LAN Drivers” from CD disk if bundled or go to Philips website USB charging support page to download the driver. This display has USB ports capable of...

  • Page 10: Operating The Monitor

    2. Setting up the monitor Note Access the OSD menu. Confirm the OSD If you turn off your monitor via the adjustment. power switch at any given time, all the USB ports will power OFF. Adjust the OSD menu. PowerSensor Warning USB 2.4Ghz wireless devices, such Change the signal input...
  • Page 11 "ON" mode: it On-Screen Display (OSD) is a feature makes the screen looks slightly dim; for in all Philips LCD monitors. It allows an optimum brightness, enter to the OSD end user to adjust screen performance to set "DPS"...
  • Page 12 2. Setting up the monitor Resolution notification Height adjustment This monitor is designed for optimal performance at its native resolution, 2560 × 1440 @ 60 Hz. When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 2560 ×...

  • Page 13: Remove The Base Assembly For

    2. Setting up the monitor Note 2.3 Remove the Base Assembly This monitor accepts a 100mm x 100mm for VESA Mounting VESA-Compliant mounting interface. Before you start disassembling the VESA Mounting Screw M4. Always monitor base, please follow the contact manufacturer for wall-mount instructions below to avoid any possible installation.

  • Page 14: Built-In Windows Hello™ Pop

    Hello™ pop-up middle on the top of this display. webcam What is it? Philips' innovative and secure webcam pops up when you need it and securely tucks back into the monitor when you 2. Simply connect the USB cable from are not using it.
  • Page 15 3. Built-in Windows Hello™ pop-up webcam Windows Hello. Once you've added this, the option for Hello will unlock. d. You'll now see which options are available to set up under Windows Hello. e. Click on "Get started." The setting is complete. Note 1.

  • Page 16: Usb Docking Display Introduction

    4. USB docking display display through USB C to A introduction cable? Philips USB-docking monitors deliver If your laptop doesn’t have USB C universal port replication, for a simple, port, please connect USB C to A cable clutter-free, notebook connection.
  • Page 17 4. USB docking display introduction system, the name of the monitor will be shown, it means the DisplayLink software installation is successful. 3. Click “Install”, then DisplayLink start Controlling the display to install, once it complete, click After the DisplayLink software is “Finish”...
  • Page 18 4. USB docking display introduction Setting Audio source Once USB C to A cable connects between the monitor and the device, this USB docking monitor audio becomes the default sound track output. 1. Click on the DisplayLink icon, then, click “Audio Setup” 2.
  • Page 19 PC with USB C to A cable, your Power delivery monitor screen probably show as the extend screen. To call out the This Philips monitor built-in DC OUT main screen on your monitor, hold connector for Power delivering to your the Windows key and press P device up to 65W .

  • Page 20: Image Optimization

    There are multiple selections: EasyRead, How does it work? Office, Photo, Movie, Game, Economy, LowBlue Mode and Off. SmartImage is an exclusive, leading edge Philips technology that analyzes the content displayed on your screen.  Based on a scenario you select, ...
  • Page 21 Developed for wellbeing, temperature of the monitor. Philips LowBlue Mode setting uses a smart software technology to • Office: Enhances text and dampens reduce harmful shortwave blue brightness to increase readability light.

  • Page 22: Smartcontrast

    5. Image Optimization 5.2 SmartContrast What is it? Unique technology that dynamically analyzes displayed content and automatically optimizes a Monitor's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds.

  • Page 23: Powersensor

    6. PowerSensor™ detection signal for distances up to 6. PowerSensor™ 120 cm or 47 inches. (Setting 4) • Since some dark colored clothing How does it work? tends to absorb infrared signals even when the user is within 100 cm • PowerSensor works on principle or 40 inches of the display, step up of transmission and reception of...
  • Page 24 6. PowerSensor™ returned to its default Landscape position. Note A manually selected PowerSensor mode will remain operational unless and until it is readjusted or the default mode is recalled. If you find that the PowerSensor is excessively sensitive to nearby motion for some reason, please adjust to a lower signal strength.

  • Page 25: Daisy-Chain Function

    Please check connections with your graphic card vendor and always update your graphic card driver. This Philips display is equipped with 2. There are two modes available DisplayPort 1.2 interface which enables when you daisy chaining: “Clone” and daisy-chaining to multiple displays.

  • Page 26: Technical Specifications

    8.Technical Specifications 8. Technical Specifications Picture/Display Monitor Panel Type IPS Technology Backlight Panel Size 27" W (68.5 cm) Aspect Ratio 16:9 Pixel Pitch 0.233(H) mm x 0.233(V) mm SmartContrast 50,000,000:1 Optimum Resolution 2560 x 1440 @ 60 Hz Viewing Angle 178°...
  • Page 27 8.Technical Specifications English, German, Spanish, Greek, French, Italian, Hungarian, Dutch, Portuguese, Brazil Portuguese, OSD Languages Polish, Russian, Swedish, Finnish, Turkish, Czech, Ukranian, Simplified Chinese, Traditional Chinese, Japanese, Korean Other Convenience VESA mount(100×100mm), Kensington Lock Plug & Play Compatibility DDC/CI, sRGB, Windows 10/8.1/8/7, Mac OS X Stand Tilt -5 / +30 degree...
  • Page 28 Finish Texture Note 1. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet. 2. To enable USB docking, USB C-C or USB A-C (when your data transmission is through HDMI/DP) cable is required.

  • Page 29: Resolution & Preset Modes

    8.Technical Specifications 8.1 Resolution & Preset Modes Maximum Resolution 2560 x 1440 @ 75 Hz (digital input) Recommended Resolution 2560 x 1440 @ 60 Hz (digital input) H. freq Resolution V. freq (Hz) (kHz) 31.47 720 x 400 70.09 31.47 640 x 480 59.94 35.00...
  • Page 30 8.Technical Specifications Display Link USB Monitor Support H. freq Resolution V. freq Timing (kHz) (Hz) H. freq Resolution V. freq 74.05 2560x1440/50_ 50.00 (kHz) (Hz) RB for Display Link only 31.47 720 x 400/70 70.09 31.47 640 x 480/60 59.94 Note 35.00 640 x 480/67...

  • Page 31: Power Management

    9.Power Management 9. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically.

  • Page 32: Customer Care And Warranty

    Pixel Defect Policy single black pixel. Other combinations of lit and dark sub pixels appear as Philips strives to deliver the highest single pixels of other colors. quality products. We use some of the industry's most advanced...
  • Page 33 Black Dot Defects the warranty period, a TFT Monitor Black dot defects appear as pixels or panel in a Philips flat panel monitor sub pixels that are always dark or 'off'. must have pixel or sub pixel defects That is, a dark dot is a sub-pixel that...
  • Page 34 10.Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer...

  • Page 35: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.

  • Page 36: Troubleshooting & Faqs

    • Contact with Philips customer • First, ensure that the power button service representative immediately. on the front of the monitor is in the...

  • Page 37: General Faqs

    “burn-in”, also Service contact information listed in known as “after-imaging” or “ghost Important information manual and imaging”, on your screen. “Burn-in”, contact Philips customer service “after-imaging”, or “ghost imaging” representative. is a well-known phenomenon in * Functionality different according to LCD panel technology.
  • Page 38 • Shut down your computer, that the panel surface is not disconnect your old monitor and subjected to excessive shocks reconnect your Philips LCD monitor. and is protected from sharp or • Turn on your monitor and then turn blunt objects. When handling the on your PC.
  • Page 39 PC, workstation or Mac? repaired. The damage mentioned above is not covered under your warranty. Ans.: Yes. All Philips LCD monitors are fully compatible with standard Q12: Why is my Display not showing PCs, Macs and workstations.
  • Page 40 EDFU? specific power accessories. In that case, it may not recognize Ans.: Important Information manual and block the Philips USB type C can be download on the Philips power charging function. This is website support page. not a fault of the Philips display.
  • Page 41 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are regis- tered trademarks of Koninklijke Philips N.V. and are used under license.
