Stonewood Beds
RGB = Rustic Glazed Brown finish
Assembly Instructions
Model #
1733RGBa

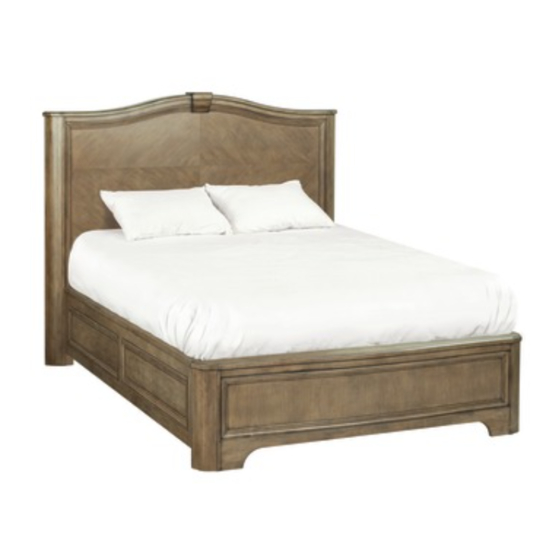

Stonewood Cal-King
Storage Bed
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
1752RGBa
Stonewood Cal-King
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Remove items before you move this unit.
• Do not overload the drawers.
• This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
Bed
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
WARNING
Production Code:
VN
05/17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Whittier Wood Furniture Stonewood Cal-King 1733RGBa
Summary of Contents for Whittier Wood Furniture Stonewood Cal-King 1733RGBa
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
- Page 2 1733RGBa Stonewood Cal-King Storage Bed 1752RGBa Stonewood Cal-King Bed Parts List Please note this Assembly Instruction is for Stonewood Cal-King Storage Bed (#1733) and Stonewood Cal-King Rail Bed (#1752). The Parts Lists for each component follow. Please identify the parts and check that the quantities received match those on this list. If you need to replace a part, refer to the model number, part letter and name.
- Page 3 1733RGBa Stonewood Cal-King Storage Bed 1752RGBa Stonewood Cal-King Bed Parts List 1735RGBa Pedestal Kit (x2) Part Description Quantity Pedestal Drawer Box (assembled) Drawer Face (attached) Trestle with T-Nuts (36-1/4") Center Deckboard Notched Deckboard (attached) Assembled Foot (attached) 20" Drawer Slides (pre-installed sets) #6 x 3/4"...
- Page 4 1733RGBa Stonewood Cal-King Storage Bed 1752RGBa Stonewood Cal-King Bed Parts List 1735RGBa Pedestal Kit (x2)_Cont. Part Description Quantity Right Bed Bracket (attached) Foot Bracket (attached) Adjustable Glide (installed) 1754RGBa Cal-King Rail Kit (x1) Part Description Quantity #8 x 1-1/4" Black Screw #8 x 1-5/8"...
- Page 5 1733RGBa Stonewood Cal-King Storage Bed 1752RGBa Stonewood Cal-King Bed Assembly Instructions This assembly requires two people. Tools Required: Phillips screwdriver, Slotted screwdriver, 1/2" & 7/16" open end or box end wrench and Tape measure Notes: Steps 1 through 8 are for the Stonewood Cal-King Storage Bed (#1733). Steps 9 through 14 are for the Stonewood Cal-King Bed (#1752).
- Page 6 1733RGBa Stonewood Cal-King Storage Bed 1752RGBa Stonewood Cal-King Bed Assembly Instructions This assembly requires two people. Repeat step two for the other side. See Figures 3 and 3a. Fig. 3 Fig. 3a Align the Brackets on both sides and slide the Pedestal/Footboard assembly down on to the Headboard (Aa).
- Page 7 1733RGBa Stonewood Cal-King Storage Bed 1752RGBa Stonewood Cal-King Bed Assembly Instructions This assembly requires two people. Open the drawers. Face the Footboard and stand in between the first and second braces. Place a Trestle with T-Nuts (G) on the outside surfaces of the first upper left and right braces so that the T-Nuts (V) sit near the top.
- Page 8 1733RGBa Stonewood Cal-King Storage Bed 1752RGBa Stonewood Cal-King Bed Assembly Instructions This assembly requires two people. Face the Headboard and stand in between the third and fourth braces. Place a Trestle with T-Nuts (G) on the outside surfaces of the third upper left and right braces so that the T-Nuts (V) sit near the top.
- Page 9 1733RGBa Stonewood Cal-King Storage Bed 1752RGBa Stonewood Cal-King Bed Assembly Instructions This assembly requires two people. Place your bed in its final position. Using a 1/2" wrench or Slotted screwdriver adjust the Adjustable Glides (ZE) on the bottoms of the Assembled Feet (J) so that the top edge of the trestles are 17"...
- Page 10 1733RGBa Stonewood Cal-King Storage Bed 1752RGBa Stonewood Cal-King Bed Assembly Instructions This assembly requires two people. To attach the Footboard (Ba) to the Side Rail (ZO), align the Brackets and slide the Side Rail (ZO) down on to the Footboard (Ba). See Figures 9 and 9a. Fig.
- Page 11 1733RGBa Stonewood Cal-King Storage Bed 1752RGBa Stonewood Cal-King Bed Assembly Instructions This assembly requires two people. 11. Align the Brackets on both sides and slide the Side Rail/Footboard assembly down on to the Headboard (Aa). See Figure 11. Fig. 11 12.
- Page 12 1733RGBa Stonewood Cal-King Storage Bed 1752RGBa Stonewood Cal-King Bed Assembly Instructions This assembly requires two people. 13. Move the bed assembly to its final position. Position the Slats (ZI) on the bottom edges of the rails. Attach with #8 x 1-1/4" Black Screws (O). See Figure 13. x 10 Fig.
